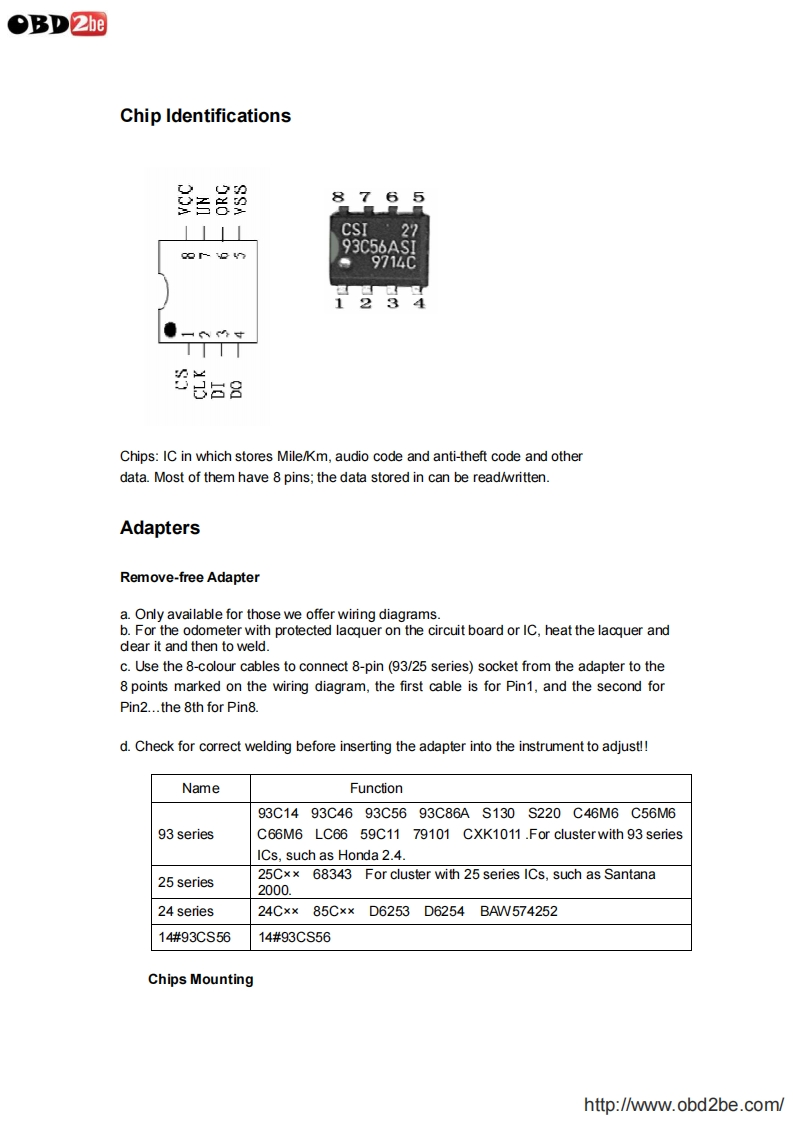

OBDZheChip Identificationss图8765⊥L⊥⊥CSI 2793C56ASI9714C234总后8Chips:IC in which stores Mile/Km,audio code and anti-theft code and otherdata.Most of them have 8 pins;the data stored in can be read/written.AdaptersRemove-free Adaptera.Only available for those we offer wiring diagrams.b.For the odometer with protected lacquer on the circuit board or IC,heat the lacquer anddear it and then to weld.c.Use the 8-colour cables to connect 8-pin(93/25 series)socket from the adapter to the8 points marked on the wiring diagram,the first cable is for Pin1,and the second forPin2...the 8th for Pin8.d.Check for correct welding before inserting the adapter into the instrument to adjust!!NameFunction93C1493C4693C5693C86AS130S220C46M6C56M693 seriesC66M6 LC66 59C11 79101 CXK1011.For cluster with 93 seriesICs,such as Honda 2.4.25C××25 series68343 For cluster with 25 series ICs,such as Santana2000.24series24C××85C××D6253D6254BAW57425214#93CS5614#93CS56Chips Mountinghttp://www.obd2be.com/
