KENWOOD–MC-48-维修电器原理图手册

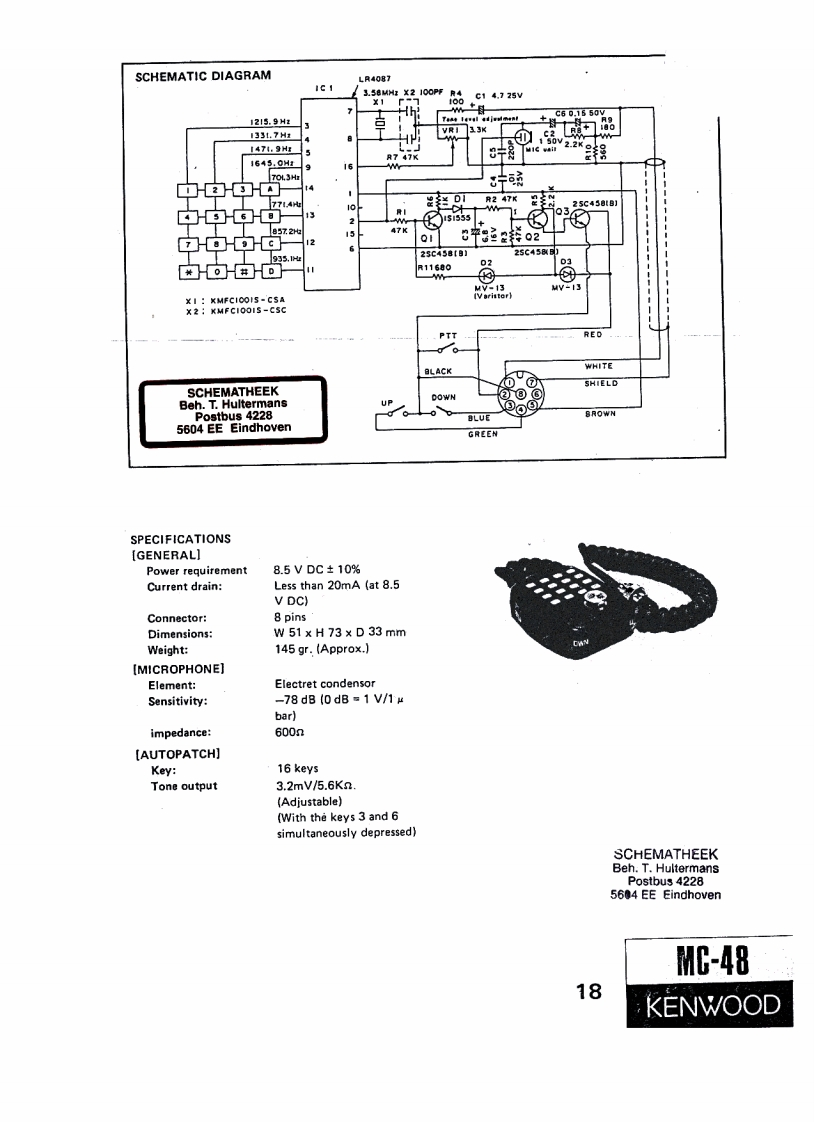

SCHEMATIC DIAGRAMLA40873.58州X2100PFc14.725vc60.1650V12I5.9H1133L.7H1VRI 33K47.9H1645.0H1747KR247K6H03131s555857.247K⑦H中3935.123C43819】25C45队E*o#R116800203=13MV-13XI XMFCICOIS-CSAX2:KMFCIOOIS-CSCPTTREDBLACKWHITESHIELDSCHEMATHEEKOOWN②⑧⑥Beh.T.HultermansUPPostbus 4228BLUEBROWN5604 EE EindhovenGREENSPECIFICATIONS[GENERAL]Power requirement8.5VDC±10%Current drain:Less than 20mA (at 8.5V DC)Connector:8 pinsDimensions:W51×H73×D33mmWeight:145 gr.(Approx.)[MICROPHONE]Element:Electret condensorSensitivity:-78d8(0dBs1V/1ubar)impedance:600n[AUTOPATCH]Key:16 keysTone output3.2mV/5.6K.(Adiustable)(With the keys 3 and 6simultaneously depressed)SCHEMATHEEKBeh.T.HultermansPostbus 42285604 EE EindhovenMC-4818KENWOOD
