Kenwood_AT-120_维修说明书图册

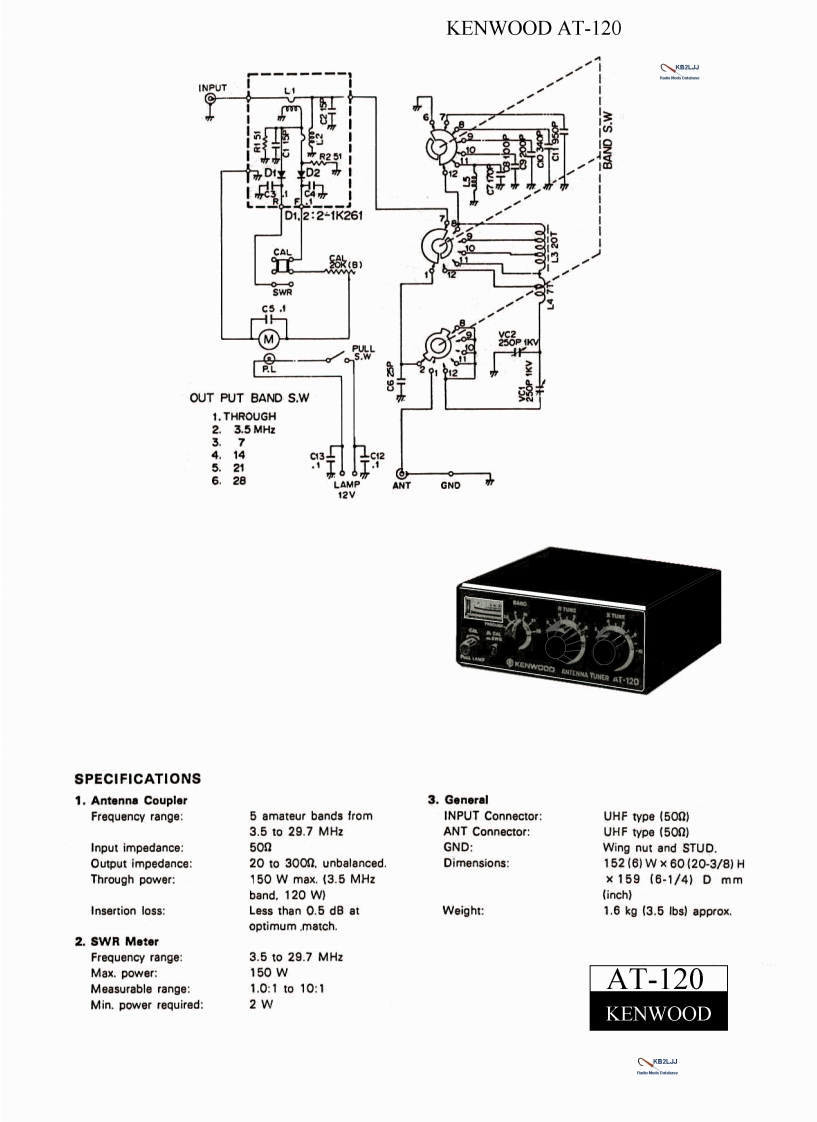

KENWOOD AT-120INPUTmnR251D2D1.2:21K261OUT PUT BAND S.W1.THROUGH2.3.5 MHz3.76.2AMFGND12VSPECIFICATIONS1.Antenna Coupler3.GeneralFrequency range:5 amateur bands fromINPUT Connector:UHF type (500)3.5 to 29.7 MHzANT Connector:UHF type (500)Input impedance:50nGND:Wing nut and STUDOutput impedance:20 to 3000.unbalancedDimensions:152(6)W×60(20-3/8)HThrough power:150 W max.(3.5 MHz×159(6-1/4)Dmmband.120 W)(inch)Insertion loss:Less than 0.5 dB atWeight:1.6 kg (3.5 Ibs)approx.optimum .match.2.SWR MeterFrequency range:3.5 to 29.7 MHzMax.power:150WMeasurable range:1.0:1to10:1AT-120Min.power required:2WKENWOOD
