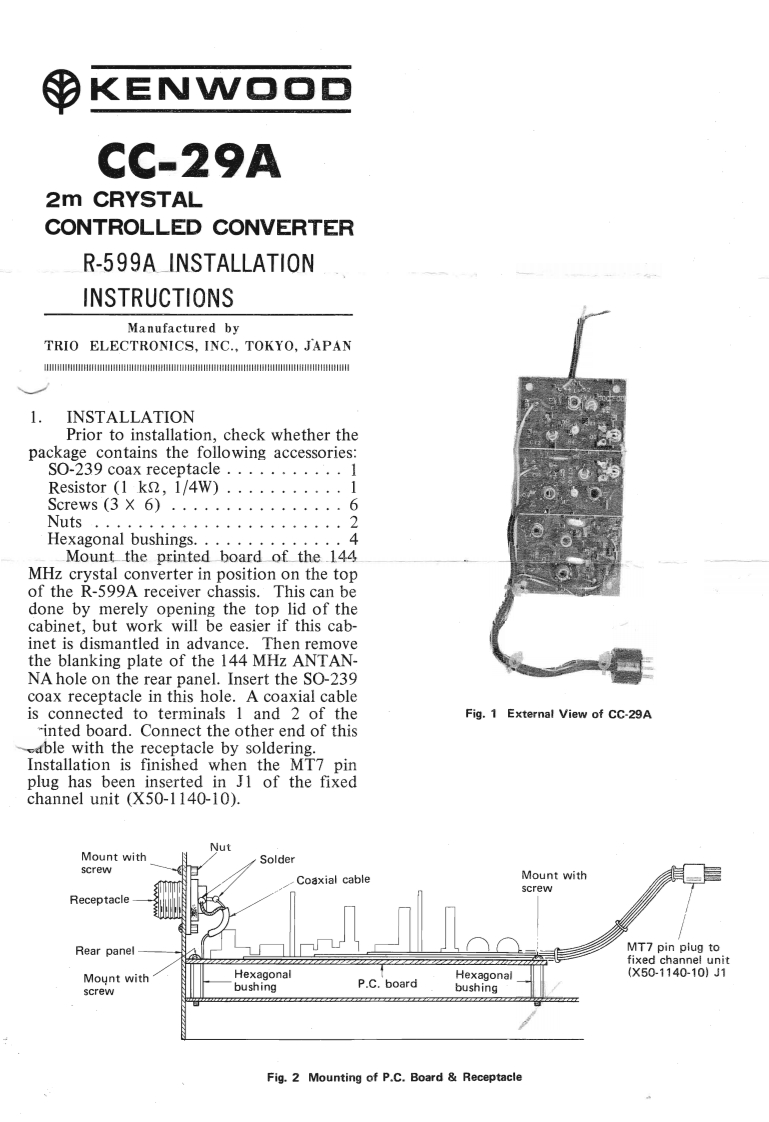

KENWOODCC-29A2m CRYSTALCONTROLLED CONVERTERR-599A INSTALLATIONINSTRUCTIONSManufactured byTRIO ELECTRONICS,INC.,TOKYO,JAPAN1.INSTALLATIONPrior to installation,check whether thepackage contains the following accessories:S0-239 coax receptacle...........IResistor(1k,1/4w).........1Screws(3X6)....,··········6Hexagonal bushings....Mount the printed board of the 144MHz crystal converter in position on the topof the R-599A receiver chassis.This can bedone by merely opening the top lid of thecabinet,but work will be easier if this cab-inet is dismantled in advance.Then removethe blanking plate of the 144 MHz ANTAN-NA hole on the rear panel.Insert the SO-239coax receptacle in this hole.A coaxial cableis connected to terminals 1 and 2 of theFig.1 External View of CC-29Ainted board.Connect the other end of thisable with the receptacle by soldering.Installation is finished when the MT7 pinplug has been inserted in J1 of the fixedchannel unit (X50-1140-10).NutMount withSolderscrewCoaxial cableMount withscrewReceptacleRear panelMT7 pin plug tofixed channel unitMoynt withHexagonalHexagonal(X50-1140-10)J1bushingP.C.boardscrewbushingFig.2 Mounting of P.C.Board Receptacle
