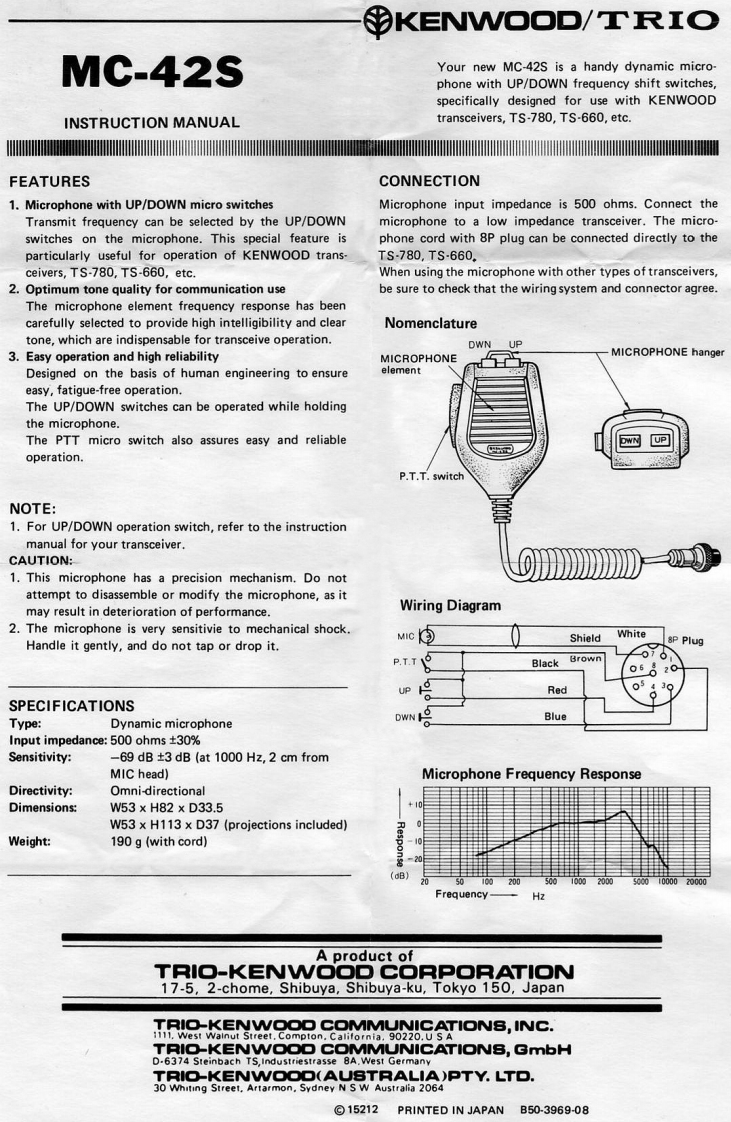

KENWOOD/TRIOMC-42SYour new MC-42 is a handy dynamic micro-phone with UP/DOWN frequency shift switches,specifically designed for use with KENWOODINSTRUCTION MANUALtransceivers,TS-780,TS-660,etc.FEATURESCONNECTION1.Microphone with UP/DOWN micro switchesMicrophone input impedance is 500 ohms.Connect theTransmit frequency can be selected by the UP/DOWNmicrophone to a low impedance transceiver.The micro-switches on the microphone.This special feature isphone cord with 8P plug can be connected directly to theparticularly useful for operation of KENWOOD trans-TS-780,TS-660.ceivers,TS-780,TS-660,etc.When using the microphone with other types of transceivers,2.Optimum tone quality for communication usebe sure to check that the wiring system and connector agree.The microphone element frequency response has beencarefully selected to provide high intelligibility and clearNomenclaturetone,which are indispensable for transceive operation.DWN UP3.Easy operation and high reliabilityMICROPHONEMICROPHONE hangeDesigned on the basis of human engineering to ensureelementeasy,fatigue-free operation.The UP/DOWN switches can be operated while holdingthe microphone.The PTT micro switch also assures easy and reliableUPoperation.P.T.T.switchNOTE:1.For UP/DOWN operation switch,refer to the instructionmanual for your transceiverCAUTION:1.This microphone has a precision mechanism.Do notattempt to disassemble or modify the microphone,as itmay result in deterioration of performance.Wiring Diagram2.The microphone is very sensitivie to mechanical shock.MC③ShieldWhiteHandle it gently,and do not tap or drop it.8P PlugP.T.TOBlackBrown06820UPRed0SPECIFICATIONSType:Dynamic microphoneDWN OBlueInput impedance:500 ohms t30%Sensitivity:-69 dB 3 dB (at 1000 Hz,2 cm fromMIC head)Microphone Frequency ResponseDirectivity:Omni-directionalDimensions:W53×H82×D33.5W53 x H113 x D37 (projections included)Weight:190 g(with cord)dB】5010020000Frequency-HzA product ofTRIO-KENWOOD CORPORATION17-5,2-chome,Shibuya,Shibuya-ku,Tokyo 150,JapanTRIO-KENWOOD COMMUNICATIONB,INC.:111.West WainutCalifornia.90220.U S ATRIO-KENWOOD COMMUNICATIONS,GmbHD-6374 Steinbach TS,Industriestrasse 8A.West GermanyWIOENWOOOARALPTY LTD©15212PRINTED IN JAPANB50-3969-08
