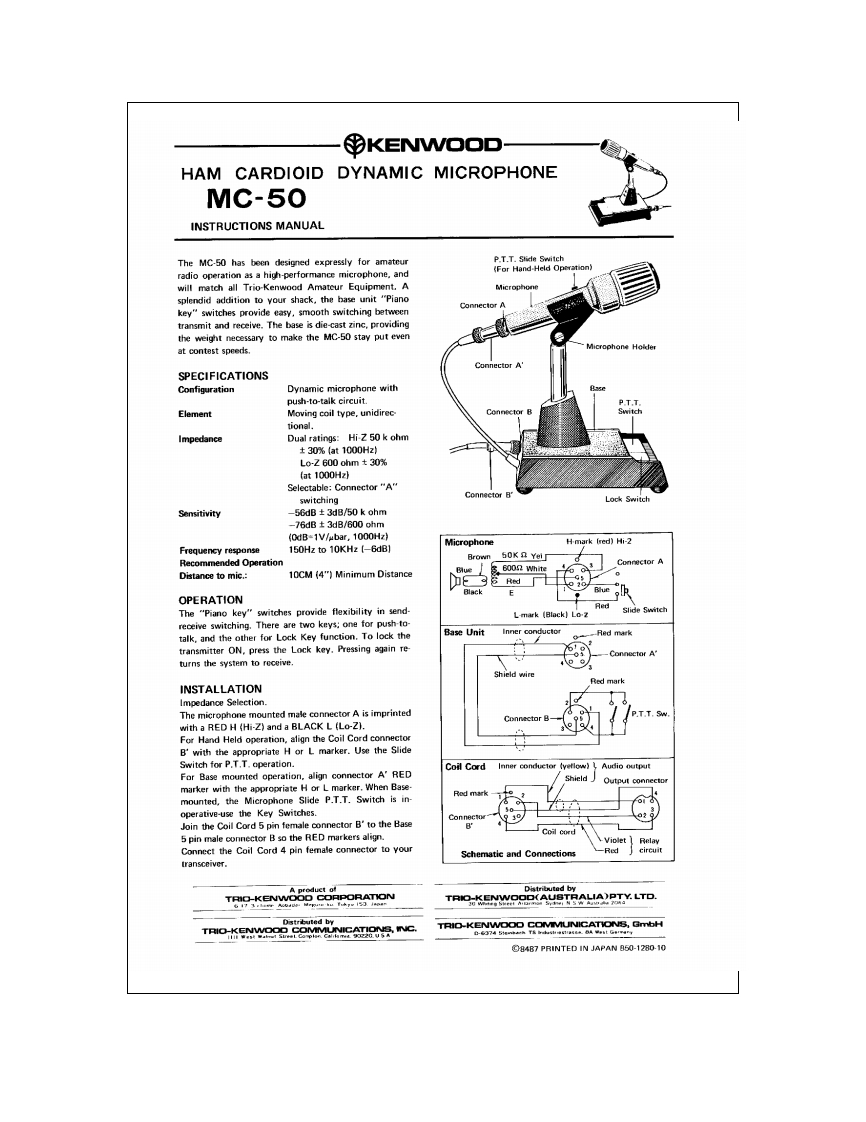

KENWOODHAM CARDIOIDDYNAMIC MICROPHONEMC-50INSTRUCTIONS MANUALThe MC-50 has been designed expressly for amateurP.T.T.Slide Switchradio operation as a high-performance microphone.and(For Hand-Held Operation)will match all Trio-Kenwood Amateur Equipment.AMicrophonesplendid addition to your shack.the base unit "Pianokey"switches provide easy,smooth switching betweenConnector Atransmit and receive.The base is die-cast zinc,providingthe weight necessary to make the MC-50 stay put evenat contest spee本，Microphone HelderSPECIFICATIONSConfigurationDynamic microphone withpush-to-talk circuit.ElementMoving coil type,unidirectional.Imped由neeDual ratings:Hi-Z 50 k ohm±30%{at1000HzLo-Z600ohm±30%(at 1000Hz)Selectable:Connector "A"switchingLock SwitchSensitivity-56dB±3dB/50kohm-76dB±3dB/600ohmC对B*1V/aba,1000HzMicrophoneH-mark (red)Hi-2Frequency response150Hzto10KHz【-6dB]Recommended OperationBrown 50K Yel10CM (4")Minimum Distance6009WhtDistance to mic.:OPERATIONThe "Piano key"switches provide flexibility in sendL-mark (Block)Lo.zreceive switching.There are two keys;one for push-to-talk,and the other for Lock Key function.To lock theBase UnitInner conductorRed mrktransmitter ON,press the Lock key.Pressing again re69turns the system to receive.Shield wired markINSTALLATIONImpedance SelectionThe microphone mounted male connector A is imprintedwith a RED H (Hi-Z)and a BLACK L (Lo-Z).For Hand Held operation,align the Coil Cord connectorB'with the appropriate H or L marker.Use the SlideSwitch for P.T.T.operation.Coil CordInner conduclor(yetlow)】Audio outputFor Base mounted operation.align connector A'REDShield」Output connectomarker with the appropriate H or L marker.When Base-mounted,the Microphone Slide P.T.T.Switch is in-operative-use the Key Switches.Join the Coil Cord 5 pin female connector B'to the Base5 pin male connector B so the RED markers align.Coil coedVioletConnect the Coil Cord 4 pin female connector to yourSchematic and Connections-Redtransceiver.A product ofDistributed byTHIO KENWDOD CORPORATION心4TRIO SENWOODCAUSTRALARTY.LTD.Distrbuted byTRIO.KENWOOD.COMMUNCATION ICTRIO-KENWOOO8487 PRINTED IN JAPAN 850-1280-10
