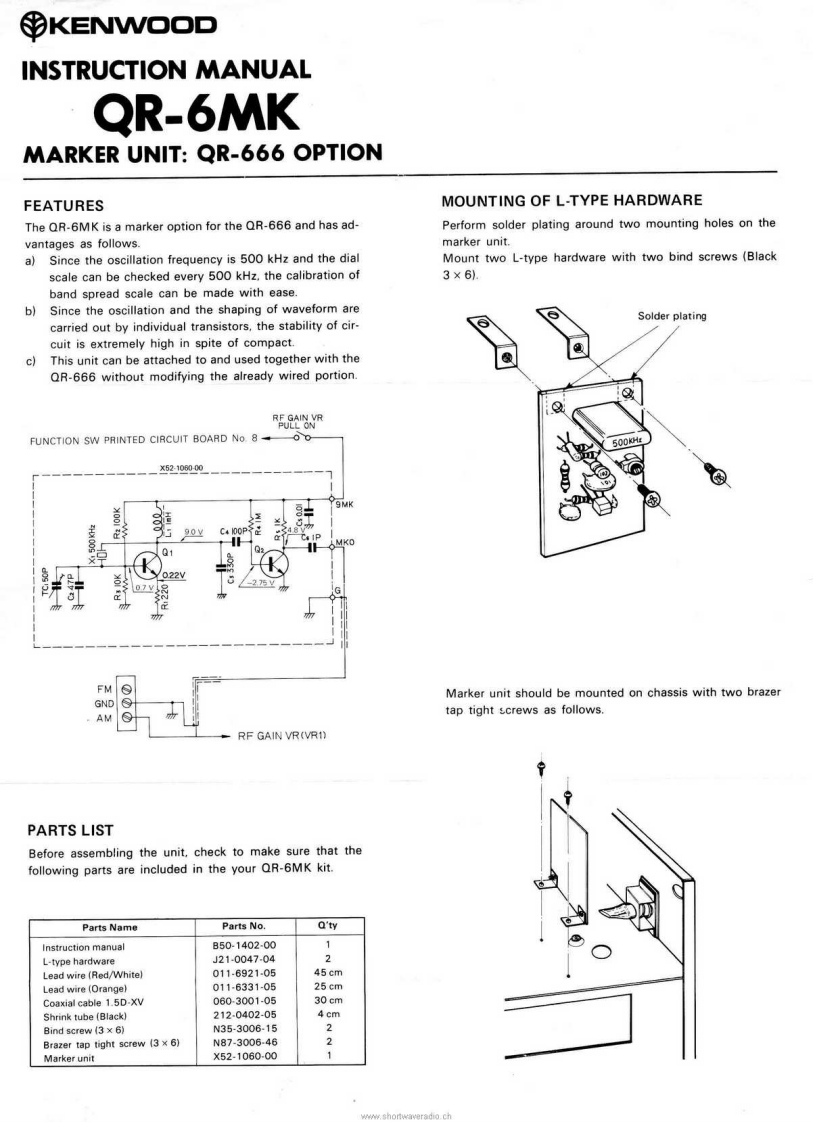

KENWOODINSTRUCTION MANUALQR-6MKMARKER UNIT:QR-666 OPTIONFEATURESMOUNTING OF L-TYPE HARDWAREThe QR-6MK is a marker option for the QR-666 and has ad-Perform solder plating around two mounting holes on thevantages as follows.marker unit.a)Since the oscillation frequency is 500 kHz and the dialMount two L-type hardware with two bind screws (Blackscale can be checked every 500 kHz.the calibration of3×6.band spread scale can be made with ease.b)Since the oscillation and the shaping of waveform areSolder platingcarried out by individual transistors,the stability of cir-cuit is extremely high in spite of compact.c)This unit can be attached to and used together with theQR-666 without modifying the already wired portion.REASVRFUNCTION SW PRINTED CIRCUIT BOARD No.8-00500gX5210600090下o22yFMMarker unit should be mounted on chassis with two brazerDAMtap tight screws as follows.-RF GAIN VR(VR1)PARTS LISTBefore assembling the unit.check to make sure that thefollowing parts are included in the your QR-6MK kit.Parts NameParts No.Q'tyInstruction manual850.1402-00L-type hardwareJ21-0047-04Lead wire(Red/White)011-6921-0545cmLead wire (Orange)011-6331-0525cmCoaxial cable 1.5D-XV060-3001-0530cmShrink tube(Black划212-0402-054cBind screw3×6lN35-3006-152Brazer tap tight screw (3 x 6)N87-3006.462Marker unitX52-1060-001
