编号15：建伍KENWOOD-TK-7302H(M4)Supplement_B51-8981-00维修图纸手册

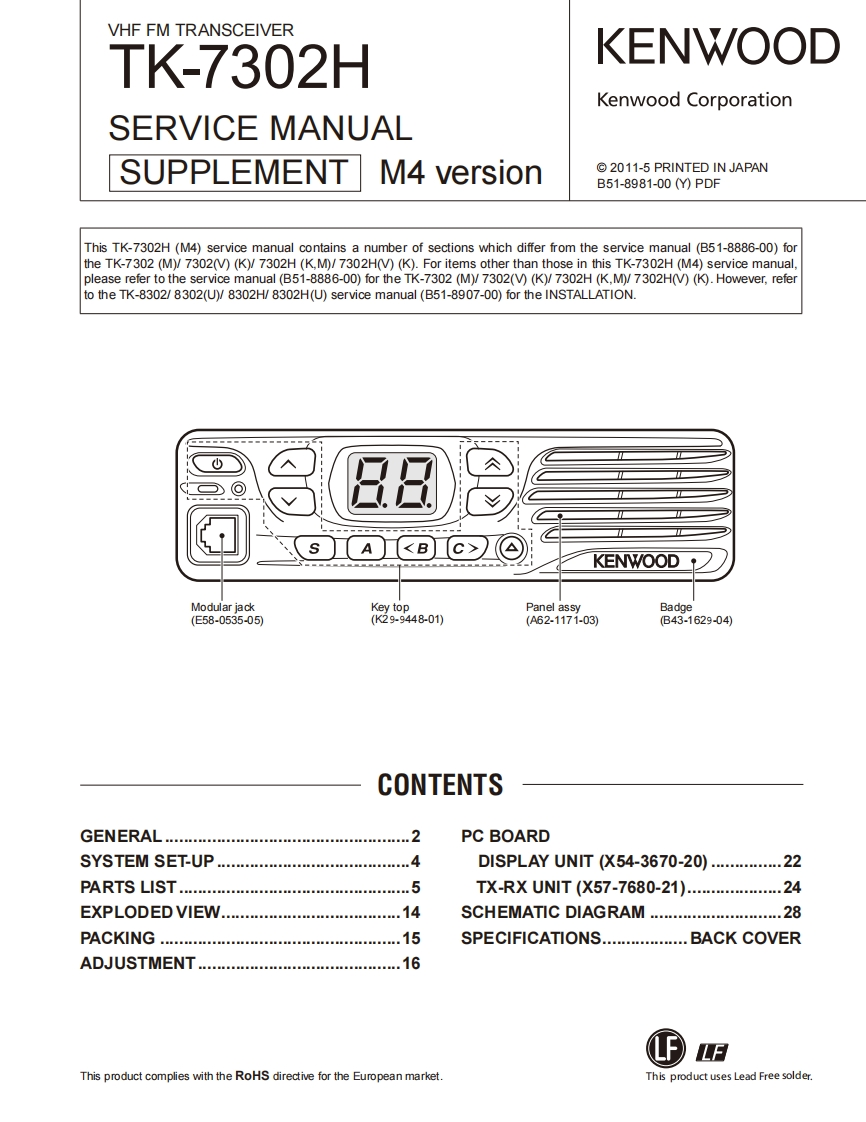

VHF FM TRANSCEIVERTK-7302HKENWOODKenwood CorporationSERVICE MANUALSUPPLEMENT M4 version2011-5 PRINTED IN JAPANB51-8981-00)PDFThis TK-7302H(M4)service manual contains a number of sections which differ from the service manual(B51-8886-00)forthe TK-7302 (M)/7302(V)(K)/7302H(K,M)/7302H(V)(K).For items other than those in this TK-7302H(M4)service manual.please refer to the service manual(B51-8886-00)for the TK-7302(M)/7302(V)(K)/7302H (K.M)/7302H(V)(K).However,referto the TK-8302/8302(U)/8302H/8302H(U)service manual (B51-8907-00)for the INSTALLATION.KENWOODModular jackKey topPanel assyBadge(E58-0535-05)(K29-9448-01)(A62.1171-03)(B43-1629-04)CONTENTSGENERAL2PC BOARDSYSTEM SET-UP.4DISPLAY UNIT (X54-3670-20)...........2PARTS LIST..........5TX-RX UNIT(X57-7680-21).24EXPLODED VIEW..14SCHEMATIC DIAGRAM8PACKING.....15SPECIFICATIONS...............BACK COVERADJUSTMENT....16LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.
