ICOM–IC-T22A-操作说明书手册

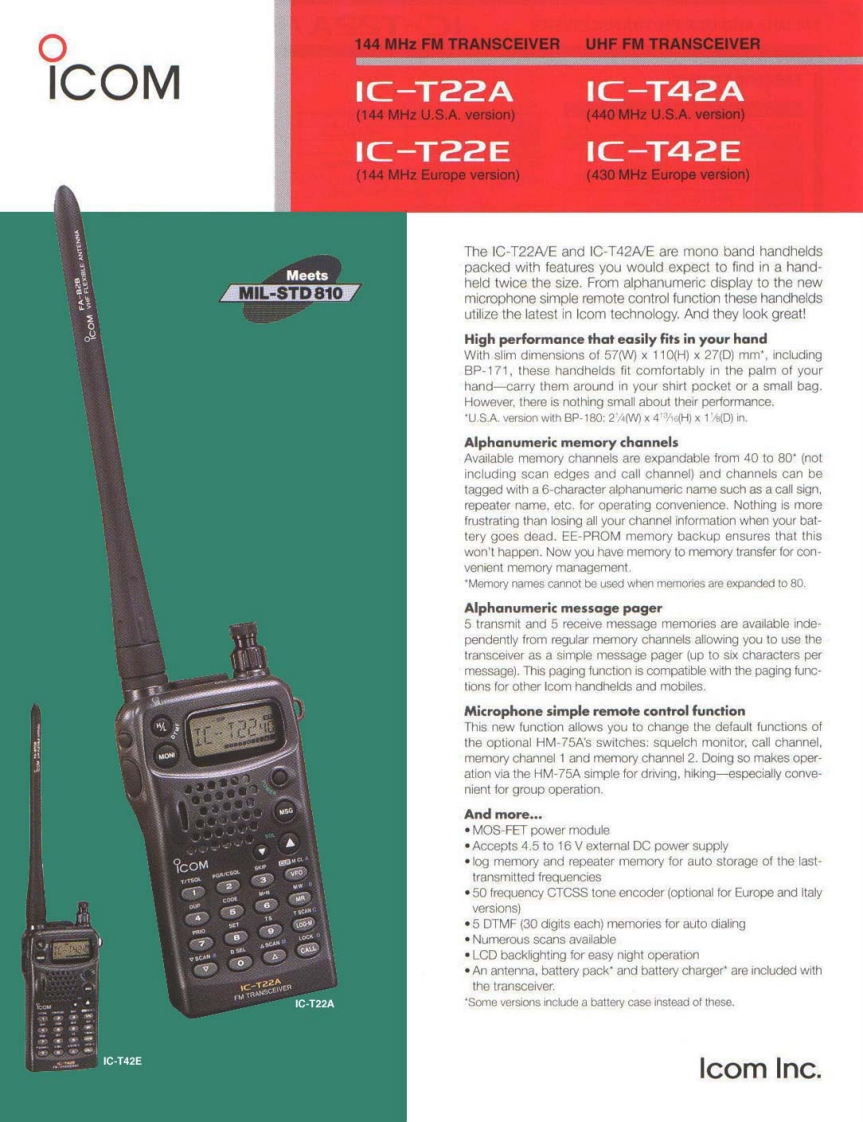

144 MHz FM TRANSCEIVERUHF FM TRANSCEIVERIC-T22AIC-T42A(144 MHz U.S.A.version)(440 MHz U.S.A.version)IC-T22EIC-T42E(144 MHz Europe version)(430 MHz Europe version)The IC-T22A/E and IC-T42A/E are mono band handheldsMeetspacked with features you would expect to find in a hand-held twice the size.From alphanumeric display to the newMIL-STD810microphone simple remote control function these handheldsutilize the latest in Icom technology.And they look great!High performance that easily fits in your handWith slim dimensions of 57(W)x 110(H)x 27(D)mm,includingBP-171,these handhelds fit comfortably in the palm of yourhand-carry them around in your shirt pocket or a small bag.However,there is nothing small about their performance.'U.S.A.version with BP-180:2/4(W)x 41%(H)x 1(D)in.Alphanumeric memory channelsAvailable memory channels are expandable from 40 to 80(notincluding scan edges and call channel)and channels can betagged with a 6-character alphanumeric name such as a call sign.repeater name,etc.for operating convenience.Nothing is morefrustrating than losing all your channel information when your bat-tery goes dead.EE-PROM memory backup ensures that thiswon't happen.Now you have memory to memory transfer for con-venient memory management.'Memory names cannot be used when memories are expanded to 80.Alphanumeric message pager5 transmit and 5 receive message memories are available inde-pendently from regular memory channels allowing you to use thetransceiver as a simple message pager (up to six characters permessage).This paging function is compatible with the paging functions for other Icom handhelds and mobiles.Microphone simple remote control function-22This new function allows you to change the default functions ofthe optional HM-75A's switches:squelch monitor.call channel,memory channel 1 and memory channel 2.Doing so makes oper-ation via the HM-75A simple for driving.hiking-especially conve-nient for group operation.And more...·MOS-FET power moduleAccepts 4.5 to 16 V external DC power supplyCOM.log memory and repeater memory for auto storage of the last-transmitted frequencies.50 frequency CTCSS tone encoder (optional for Europe and Italyversions).5 DTMF(30 digits each)memories for auto dialingNumerous scans available.LCD backlighting for easy night operationAn antenna,battery pack'and battery charger'are included withthe transceiver.IC-T22A'Some versions include a battery case instead of theseIC-T42EIcom Inc
