ICOM–IC-T2H-操作说明书手册

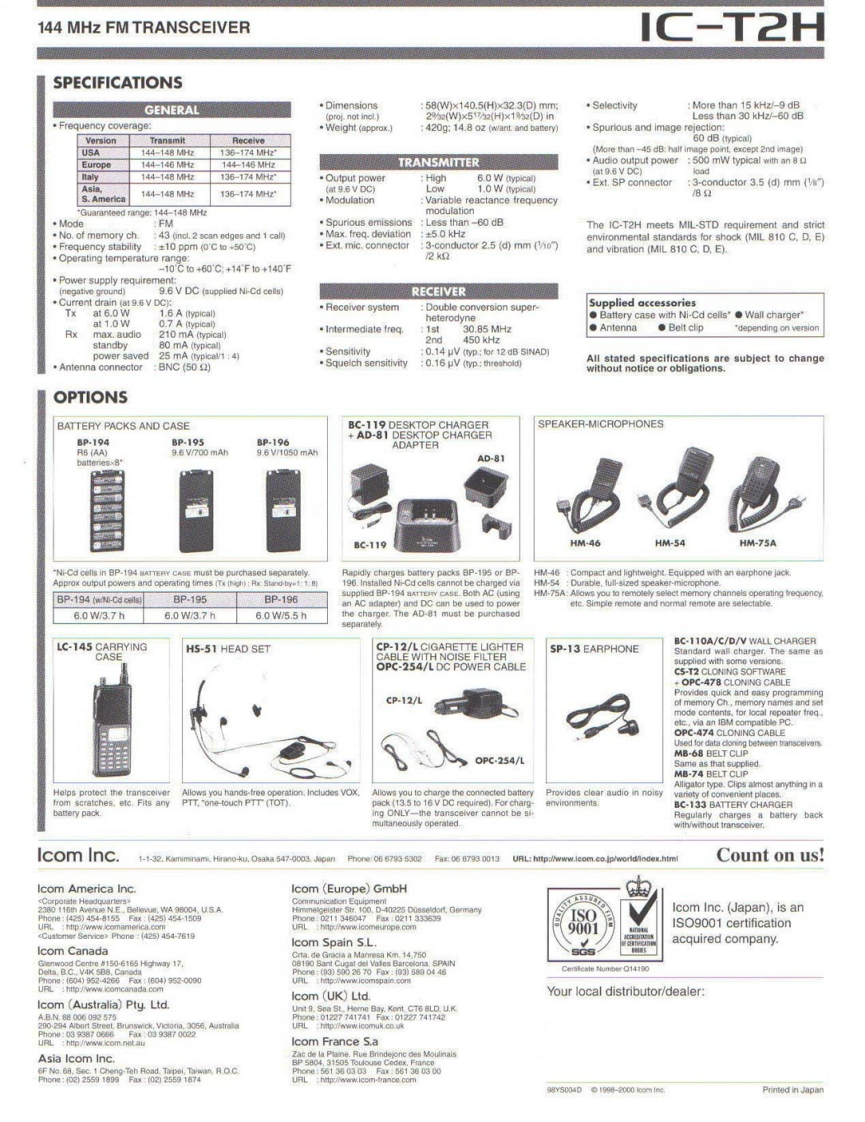

144 MHz FM TRANSCEIVERIC-T2HMore than enough power...MeetsMIL-STD8106 W of transmit power and 500 mW of audio outputThe IC-T2H provides a powerful 6 W*of RF output power with thesupplied Ni-Cd battery pack.More than enough for long distancecommunications.And on the receiving side a generous 500 mWof audio is emitted for clear reception even in noisy operating envi-ronments."Typical at 9.6 V DC.Commercial grade durabilityBuilt tough.The IC-T2H is designed and constructed to deliver re-liable performance under demanding conditions.Tone squelch standardThe built-in tone squelch system provides quiet standby (thesquelch only opens for calls directed to you)as well as pocketbeep and tone scan functions.Pocket beep provides a method ofkeeping track of calls directed to you(like a 'common'pager)andtone scan allows you to detect subaudible tone frequencies thatare needed to open a repeater,etc.Easy operation with customizable keysDefault key functions have been assigned with ease of operation inmind.However,eight keys on the keypad are customizable allow-ing you to assign functions to them other than the defaults.Thiscan be performed via cloning or directly from the keypad.DTMF encoder with memory channelsA DTMF encoder with 5 DTMF memory channels is built-in-DTMF codes of up to 32 characters can be stored.And an automaticre-dial function provides simple operation for autopatching.etc.Cloning capabilitiesCloning between handhelds or between handheld and PC providequick and easy transfer of settings.An OPC-474 CLONING CABLE isCOMrequired for transceiver-to-transceiver cloning and an OPC-478是$通CLONING CABLE plus the CS-T2 CLONING SOFTWARE is required forPC-to-transceiver cloning.Other outstanding functionsGuide function for quick reference to key functionsLCD backlight with timer.40 memory channels available2-step power saver function increase battery lifeAutomatic repeater function(USA version only)Microphone simple remote control function(optional HM-75A required)。Monitor function◆Lock function10 weather channels (USA version only)ANI (Automatic Number Identification)function"'Available for some versions only.Icom Inc.
