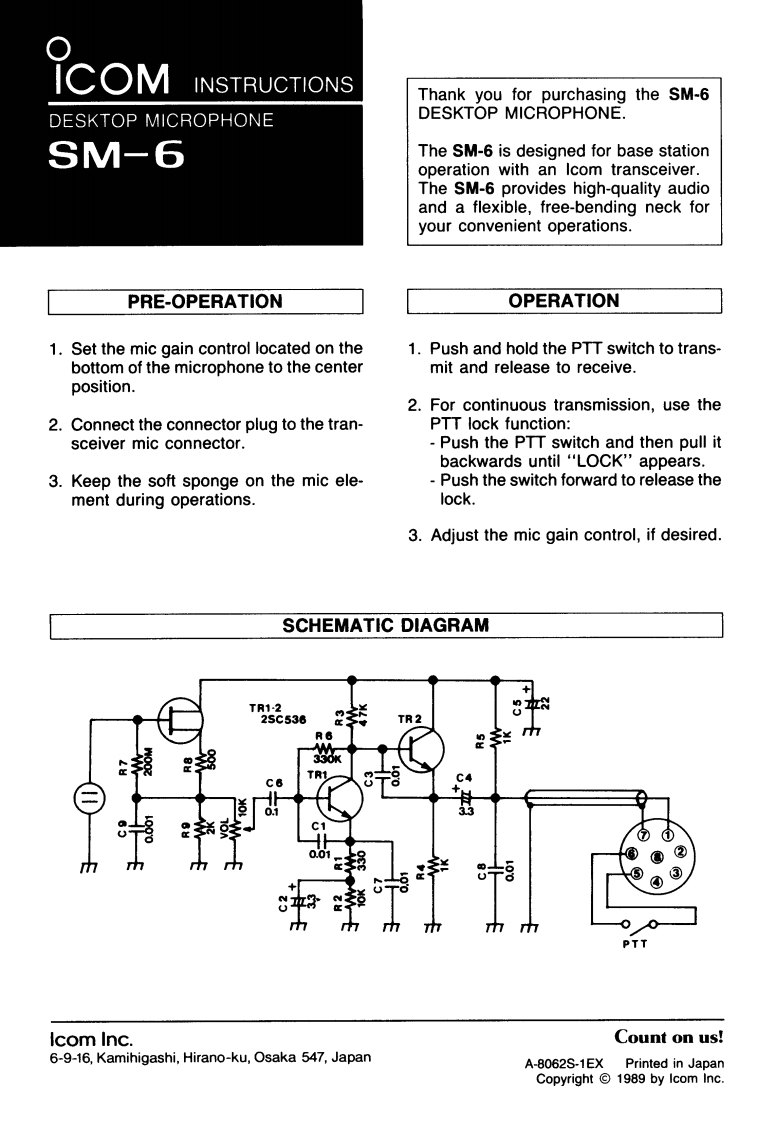

iCOMINSTRUCTIONSThank you for purchasing the SM-6DESKTOP MICROPHONEDESKTOP MICROPHONE.SM-6The SM-6 is designed for base stationoperation with an Icom transceiver.The SM-6 provides high-quality audioand a flexible,free-bending neck foryour convenient operations.PRE-OPERATIONOPERATION1.Set the mic gain control located on the1.Push and hold the PTT switch to trans-bottom of the microphone to the centermit and release to receive.position.2.For continuous transmission,use the2.Connect the connector plug to the tran-PTT lock function:sceiver mic connector.Push the PTT switch and then pull itbackwards until "LOCK"appears.3.Keep the soft sponge on the mic ele-Push the switch forward to release thement during operations.lock.3.Adjust the mic gain control,if desired.SCHEMATIC DIAGRAMTR1-225C536TR 2C4条婆·⑦①0.01③PTTlcom Inc.Count on us!6-9-16,Kamihigashi,Hirano-ku,Osaka 547,JapanA-8062S-1EX Printed in JapanCopyright 1989 by Icom Inc.
