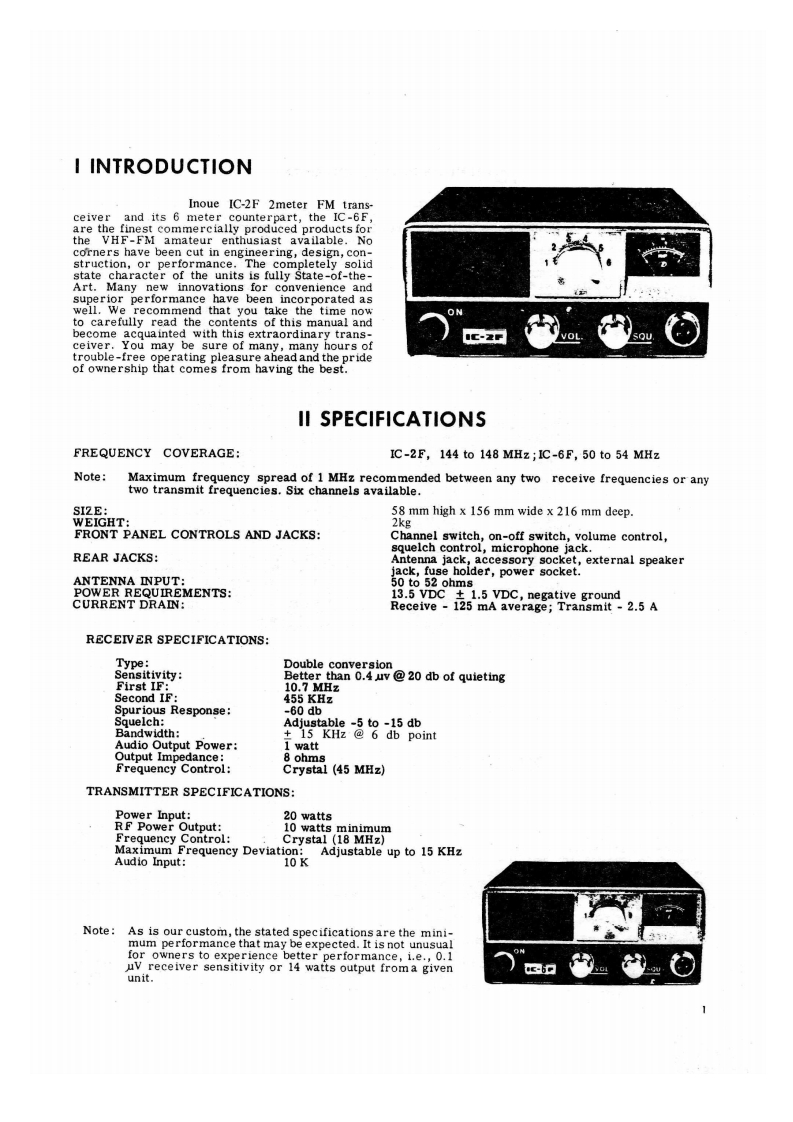

I INTRODUCTIONInoue IC-2F 2meter FM trans-ceiver and its 6 meter counterpart,the IC-6Fare the finest commereially produced products forthe VHF-FM amateur enthusiast available.Nocorners have been cut in engineering,design,con-struction,or performance.The completely solidstate character of the units is fully State-of-the-Art.Many new innovations for convenience andsuperior performance have been incorporated aswell.We recommend that you take the time nowto carefully read the contents of this manual andbecome acquainted with this extraordinary trans-ceiver.You may be sure of many,many hours oftrouble-free operating pleasure ahead and the prideof ownership that comes from having the best.II SPECIFICATIONSFREQUENCY COVERAGE:IC-2F,144 to 148 MHz:IC-6F,50 to 54 MHzNote:Maximum frequency spread of 1 MHz recommended between any two receive frequencies or anytwo transmit frequencies.Six channels available.SI2E:58 mm high x 156 mm wide x 216 mm deep.WEIGHT:2kgFRONT PANEL CONTROLS AND JACKS:Channel switch,on-off switch,volume control,squelch control,microphone jack.REAR JACKS:Antenna jack,accessory socket,external speakerANTENNA INPUT:jack,fuse holder,power socket.50 to 52 ohmsPOWER REQUIREMENTS:CURRENT DRAIN:13.5 VDC 1.5 VDC,negative groundReceive-125 mA average;Transmit-2.5 ARECEIVER SPECIFICATIONS:Type:Double conversionSensitivity:Better than 0.4 uv@20 db of quietingFirst IF:10.7 MHzSecond IF:455 KHzSpurious Response:-60dbSquelch:Adjustable -5 to-15 dbBandwidth:±15KHz@6 db pointAudio Output Power:wattOutput Impedance:8 ohmsFrequency Control:Crystal(45 MHz)TRANSMITTER SPECIFICATIONS:Power Input:20 wattsRF Power Output:10 watts minimumFrequency Control:Crystal(18 MHz)Maximum Frequency Deviation:Adjustable up to 15 KHzAudio Input:10KNote:As is our custom,the stated specifications are the mini-mum performance that may be expected.It is not unusualfor owners to experience better performance,i.e.,0.1ONuv receiver sensitivity or 14 watts output froma givenc-6unit.
