编号27：建伍KENWOOD-TK-3307(X2_C6)Supplement_B51-8851-00维修图纸手册

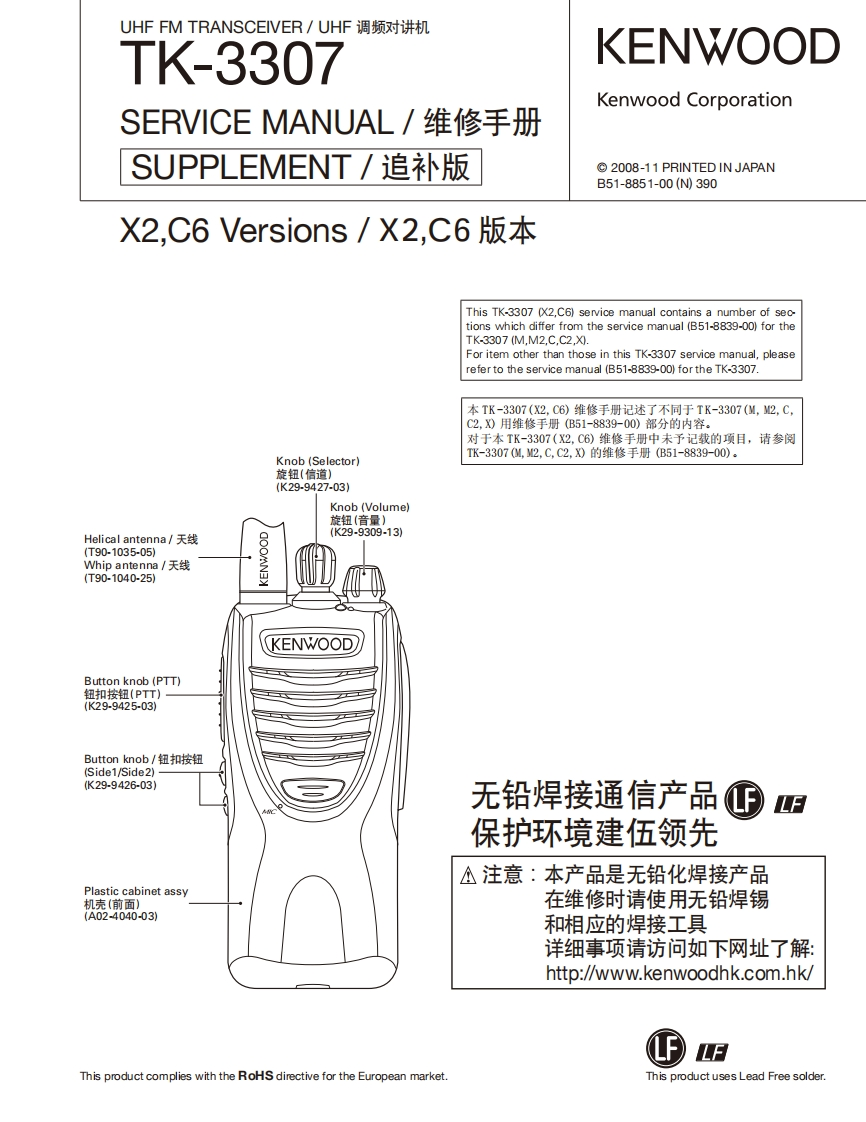

UHF FM TRANSCEIVER/UHF调频对讲机TK-3307KENWOODKenwood CorporationSERVICE MANUAL/维修手册SUPPLEMENT/追补版2008-11 PRINTED IN JAPANB51-8851-00(N)390X2,C6 Versions/X2,C6版本This TK-3307 (X2,C6)service manual contains a number of seotions which differ from the service manual (B51-8839-00)for theTK3307(M,M2,C.C2,X0.For item other than those in this TK-3307 service manual,pleaserefer to the service manual (B51-8839-00)for the TK-3307.本TK-3307(X2.C6)维修手册记述了不同于TK-3307(0W,2.C.C2,X)用维修手册(B51-8839-00)部分的内容。对于本TK-3307(X2,C6)维修手册中未予记载的项目，请参阅TK-33070L,M2,C,C2,X0的维修手册(B51-8839-00)。Knob(Selector)旋钮（信道）(K29-9427-03)Knob (Volume)旋钮（音量）Helical antenna/天线8(K29-9309-13)(T90-1035-05)Whip antenna/天线(T90-1040-25)KENWOODButton knob (PTT)钮扣按钮(PTT)(K29-9425-03)Button knob/钮扣按钮(Side1/Side2)(K29-9426-03)无铅焊接通信产品①⑤LF保护环境建伍领先△注意：本产品是无铅化焊接产品Plastic cabinet assy机壳（前面）在维修时请使用无铅焊锡(A02-4040-03)和相应的焊接工具详细事项请访问如下网址了解：http://www.kenwoodhk.com.hk/LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.
