编号43：建伍KENWOOD-TK-90Revised_B51-8757-10维修图纸手册

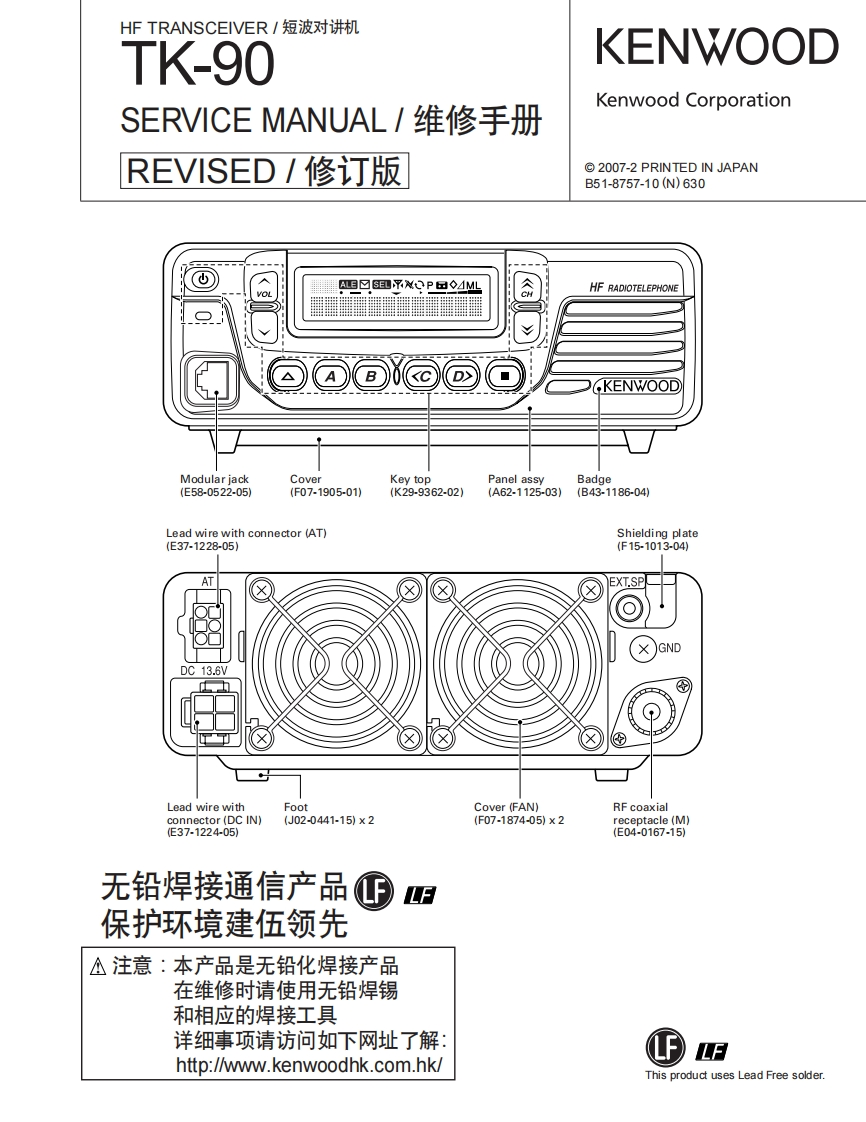

HF TRANSCEIVER/短波对讲机TK-90KENWOODKenwood CorporationSERVICE MANUAL/维修手册REVISED/修订版2007-2 PRINTED IN JAPANB51-8757-10(N)630L目☑EL平NP日◇MLHF RADIOTELEPHONEKENWOODModular jackCoverKey topPanel assyBadge(E58-0522-05)(f07-1905-01)(K29-9362-02)(A62.1125-03)(B43.1186-04)Lead wire with connector (AT)Shielding plateE37-1228-05)F15-1013-04)ATEXT.SPX)GNDDC 13.6V士Lead wire withFootCover (FAN)RF coaxialconnector (DC IN)(J02-0441-15)×2(F07.1874-05)X2receptacle (M)(E37-1224-05)(E04-0167-15)无铅焊接通信产品①LF保护环境建伍领先△注意：本产品是无铅化焊接产品在维修时请使用无铅焊锡和相应的焊接工具详细事项请访问如下网址了解：LFhttp://www.kenwoodhk.com.hk/This product uses Lead Free solder.
