编号48：建伍KENWOOD-NX-5800B_RA017_B5B-7161-20维修图纸手册

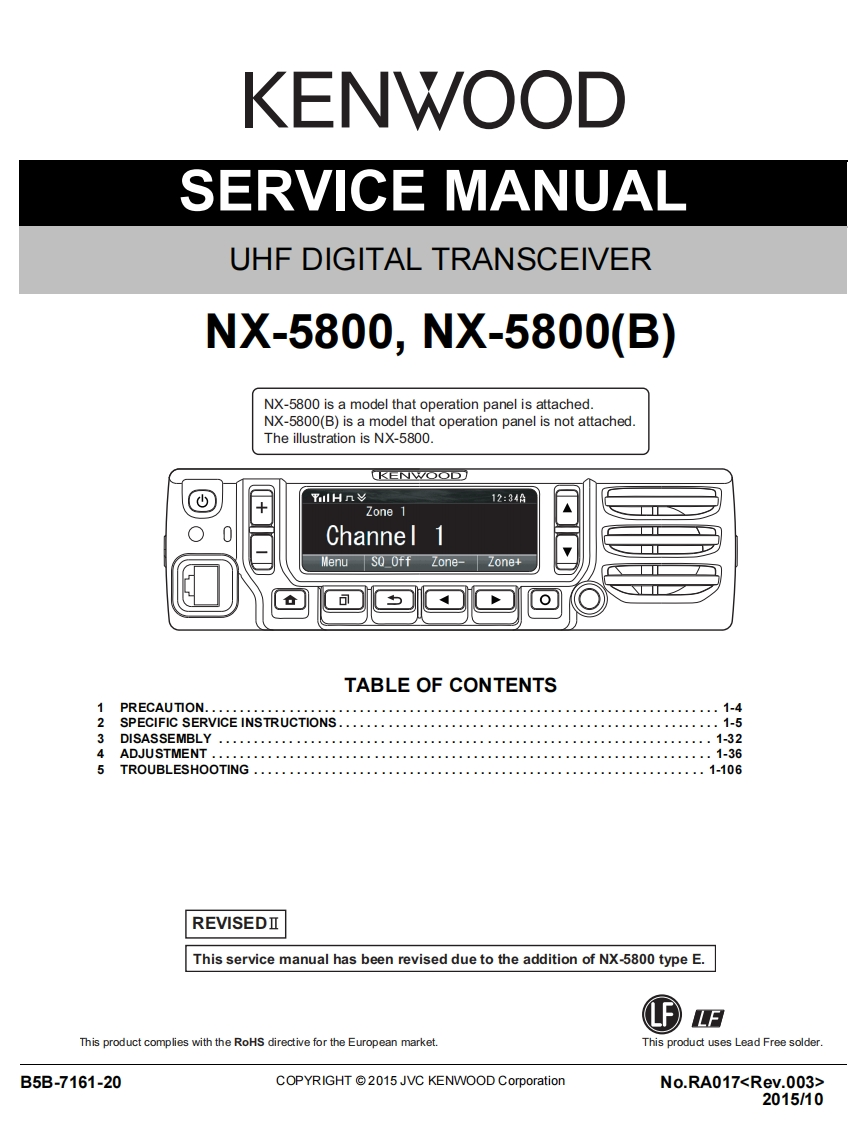

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERNX-5800,NX-5800(B)NX-5800 is a model that operation panel is attached.NX-5800(B)is a model that operation panel is not attached.The illustration is NX-5800(KENWOODTlHny12:34AZone 1Channel1Menu SQ_Off Zone-Zone+TABLE OF CONTENTS1PRECAUTON.........................................................................1-42SPECIFIC SERVICE INSTRUCTIONS...........................….1-5DISASSEMBLY4ADJUSTMENT…1-32…1-365TROUBLESHOOTING.......................................1-106REVISEDIIThis service manual has been revised due to the addition of NX-5800 type E.LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solderB5B-7161-20COPYRIGHT 2015 JVC KENWOOD CorporationNo.RA0172015/10
