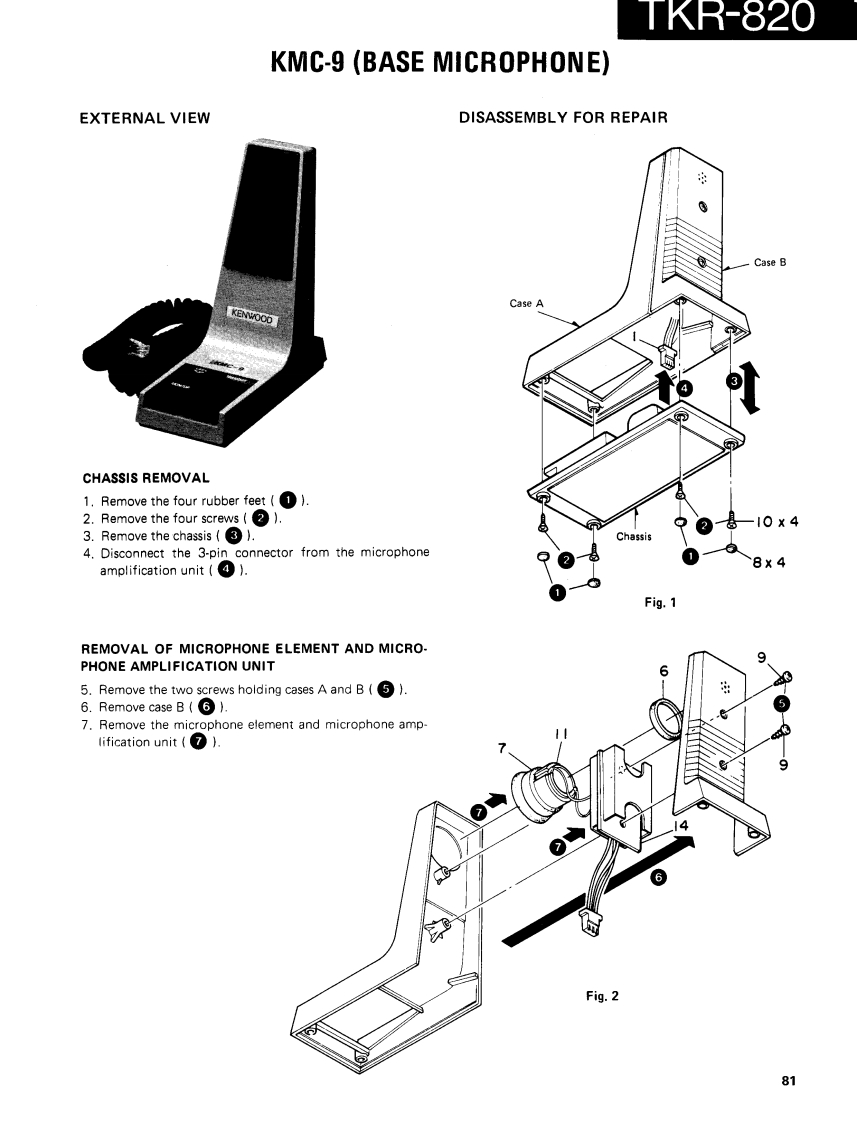

I KR-820KMC-9 (BASE MICROPHONE)EXTERNAL VIEWDISASSEMBLY FOR REPAIR0Case BKENWOODCase ACHASSIS REMOVAL1.Remove the four rubber feet (1).2.Remove the four screws ()-10X43.Remove the chassis ()Chassis4.Disconnect the 3-pin connector from the microphoneamplification unit ()8X4Fig.1REMOVAL OF MICROPHONE ELEMENT AND MICRO.9PHONE AMPLIFICATION UNIT65.Remove the two screws holding cases A and B(5).6.Remove case B().7.Remove the microphone element and microphone amp-lification unit(⑦).6Fig.281
