编号56：建伍KENWOOD-NX-3300_RA058_B5B-7275-00维修图纸手册

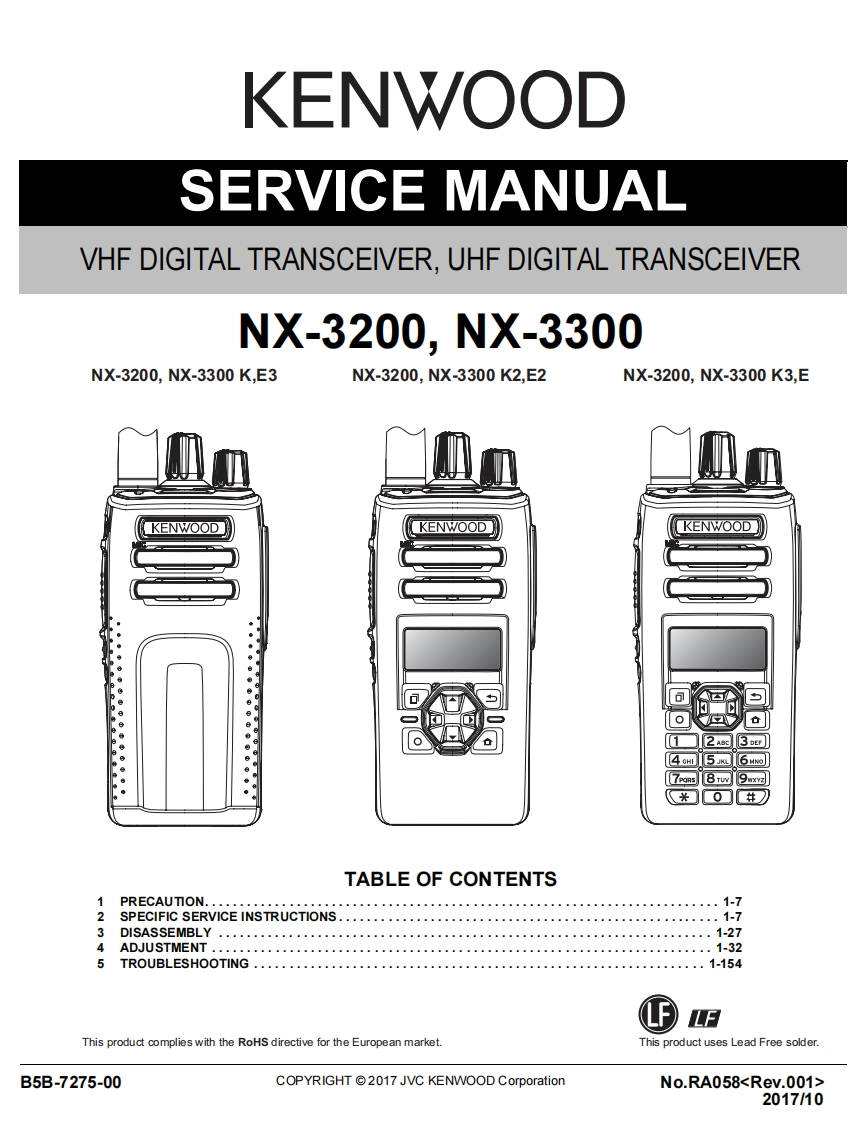

KENWOODSERVICE MANUALVHF DIGITAL TRANSCEIVER,UHF DIGITAL TRANSCEIVERNX-3200,NX-3300NX-3200,NX-3300K,E3NX-3200,NX-3300K2,E2NX-3200,NX-3300K3,EKENWOODKENWOOD】09x园《*0#)TABLE OF CONTENTS1PRECAUTION............................…1-72SPECIFICSERVICEINSTRUCTIONS.......................…….1-7DISASSEMBLY1-274ADJUSTMENT ......................................................1-325TROUBLESHOOTING........................1-154LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.B5B-7275-00COPYRIGHT 2017 JVC KENWOOD CorporationNo.RA0582017/10
