编号49：建伍KENWOOD-NX-5800B_RA017_B5B-7161-10维修图纸手册

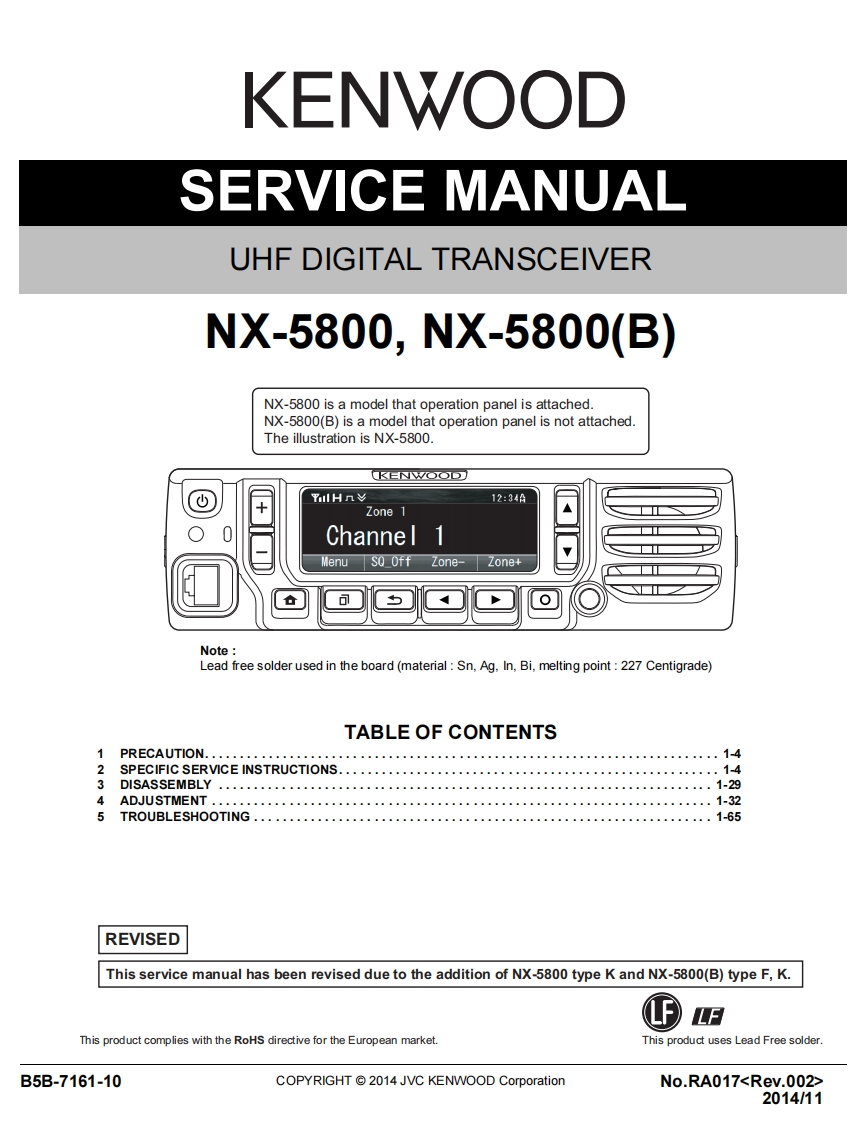

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERNX-5800,NX-5800(B)NX-5800 is a model that operation panel is attached.NX-5800(B)is a model that operation panel is not attached.The illustration is NX-5800(KENWOODTlHny12:34AZone 1Channel1Menu SQ_Off Zone-Zone+Note:Lead free solder used in the board(material Sn,Ag,In,Bi,melting point:227 Centigrade)TABLE OF CONTENTS1PRECAUTION.........................................................................142SPECIFICSERVICEINSTRUCTIONS......................................................1-43DISASSEMBLY1-294ADJUSTMENT1-32TROUBLESHO0TING.......................…1-65REVISEDThis service manual has been revised due to the addition of NX-5800 type K and NX-5800(B)type F,K.LFThis product complies with the RoHS directive for the European marketThis product uses Lead Free solderB5B-7161-10COPYRIGHT 2014 JVC KENWOOD CorporationNo.RA0172014/11
