编号51：建伍KENWOOD-NX-5700B_RA020_B5B-7172-00维修图纸手册

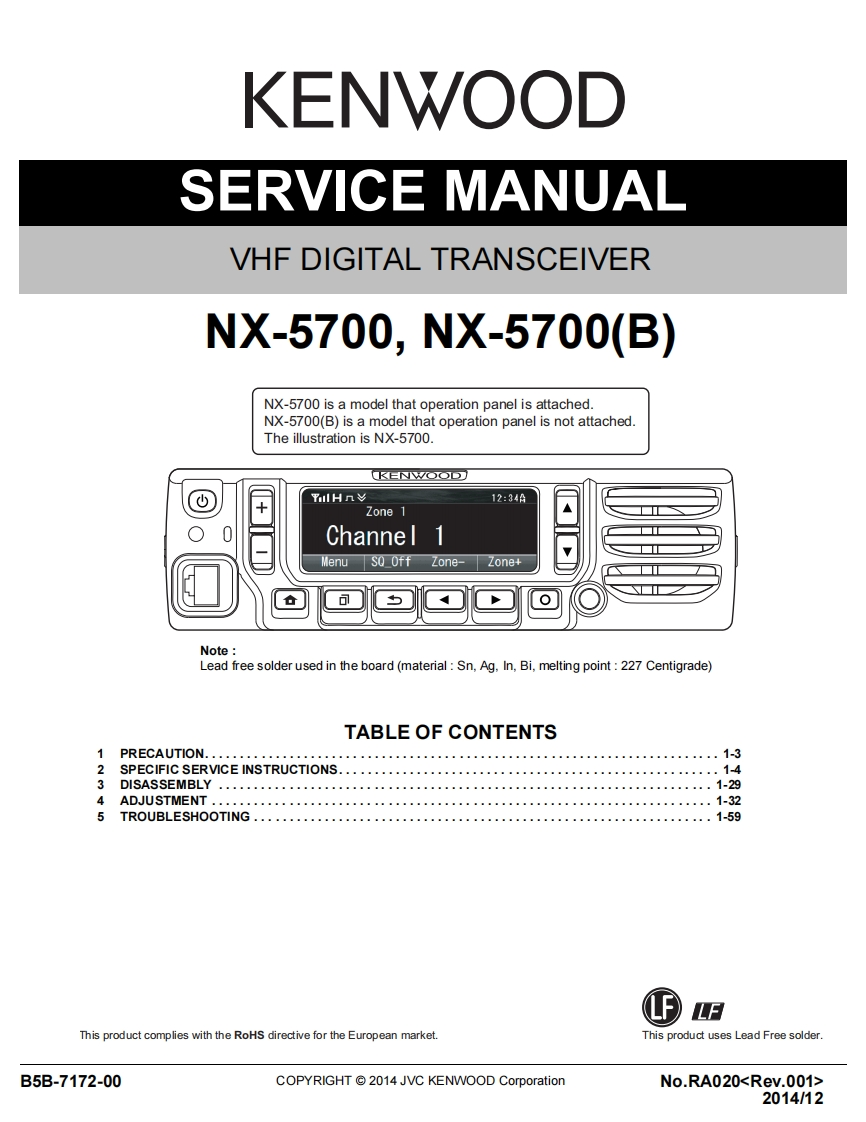

KENWOODSERVICE MANUALVHF DIGITAL TRANSCEIVERNX-5700,NX-5700(B)NX-5700 is a model that operation panel is attached.NX-5700(B)is a model that operation panel is not attached.The illustration is NX-5700(KENWOODTlHny12:34AZone 1Channel1Menu SQ_Off Zone-Zone+NoteLead free solder used in the board(material Sn,Ag,In,Bi,melting point:227 Centigrade)TABLE OF CONTENTS1PRECAUTION.........................................................................1-32SPECIFICSERVICEINSTRUCTIONS......................................................1-43DISASSEMBLY..1-294ADJUSTMENT……….1-325TROUBLESHOOTING.............................1-59LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solderB5B-7172-00COPYRIGHT 2014 JVC KENWOOD CorporationNo.RA0202014/12
