编号8：建伍KENWOOD-TK-D840(H)(U)_B5B-7224-00维修图纸手册

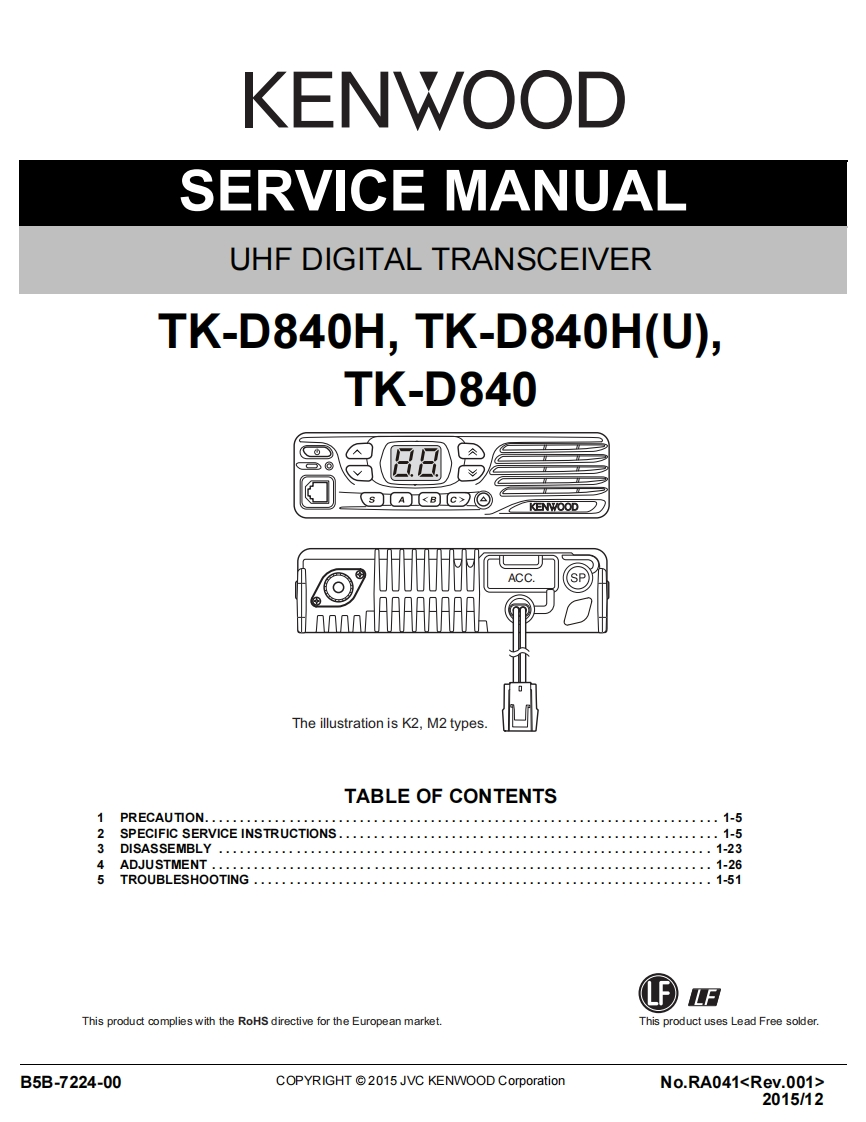

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERTK-D840H,TK-D840H(U),TK-D840AKBCKENWOODACC.The illustration is K2,M2 types.TABLE OF CONTENTS1PRECAUTION....2……1-5SPECIFIC SERVICEINSTRUCTIONS......................................................1-5DISASSEMBLY1-234ADJUSTMENT.·….1-26TROUBLESHOOTING.........1-51LFThis product complies with the RoHS directive for the European marketThis product uses Lead Free solderB5B-7224-00COPYRIGHT 2015 JVC KENWOOD CorporationNo.RA0412015/12
