编号54：建伍KENWOOD-NX-3820_RA054_B5B-7268-00维修图纸手册

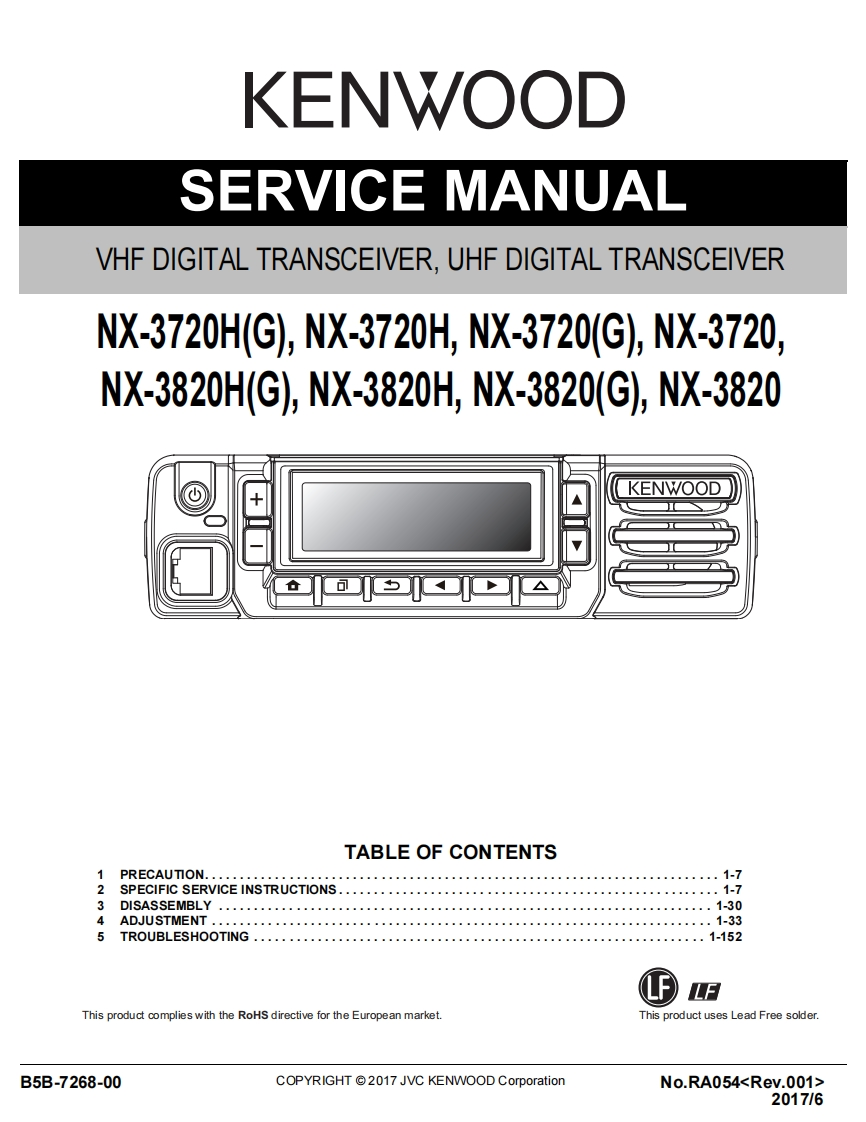

KENWOODSERVICE MANUALVHF DIGITAL TRANSCEIVER,UHF DIGITAL TRANSCEIVERNX-3720HG),NX-3720H,NX-3720G),NX-3720,NX-3820HG,NX-3820H,NX-3820(G),NX-3820KENWOODTABLE OF CONTENTS1PRECAUTION.....1-72SPECIFIC SERVICEINSTRUCTIONS......................................................1-73DISASSEMBLY.................................1-30ADJUSTMENT ..…1-33TROUBLESHOOTING.........................................1-152ELFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.B5B-7268-00COPYRIGHT 2017 JVC KENWOOD CorporationNo.RA0542017/6
