TS-930S_参考电器原理图

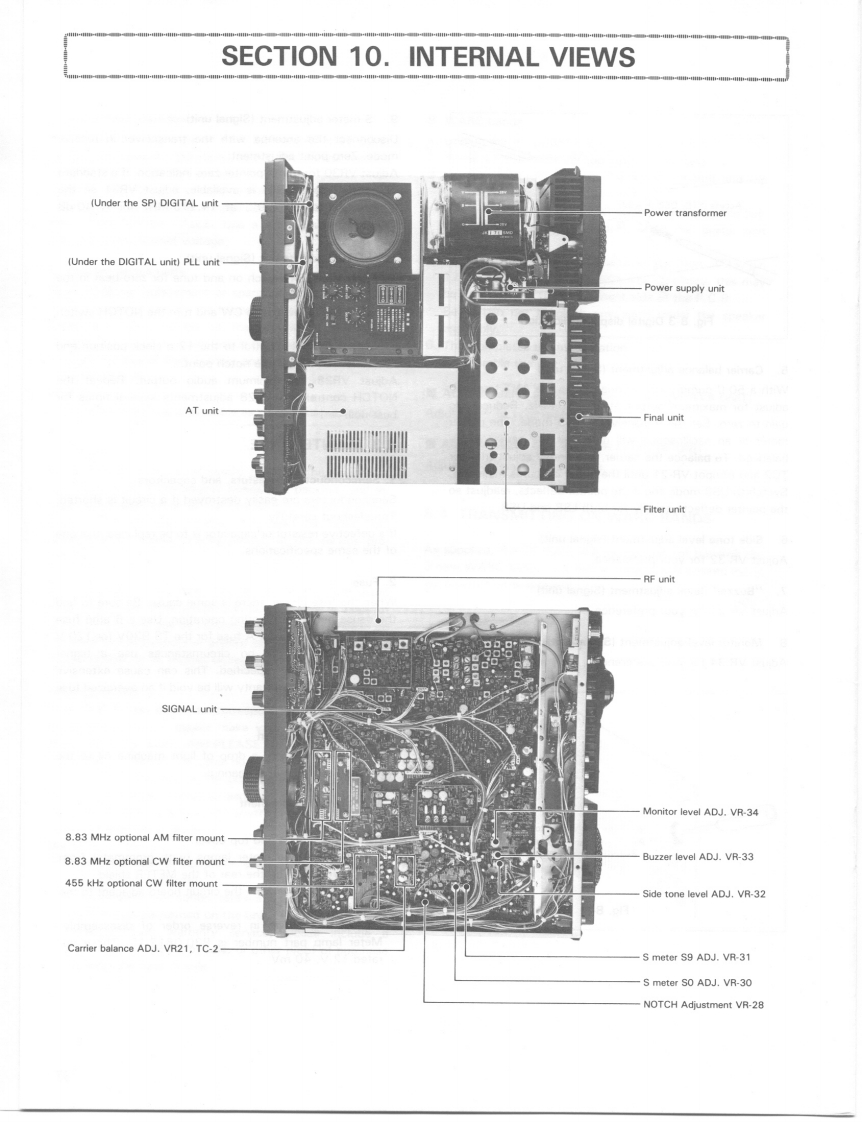

SECTION 10.INTERNAL VIEWS-411116-41111(Under the SP)DIGITAL unitPower transformer(Under the DIGITAL unit)PLL unit柴明围Power supply unit正兴AT unitFinal unitFilter unitRF unit●8册SIGNAL unitMonitor level ADJ.VR-348.83 MHz optional AM filter mount8.83 MHz optional CW filter mountBuzzer level ADJ.VR-33455 kHz optional CW filter mountSide tone level ADJ.VR-32Carrier balance ADJ.VR21,TC-2S meter S9 ADJ.VR-31S meter SO ADJ.VR-30NOTCH Adjustment VR-28
