编号63：建伍KENWOOD-NX-800(H)Supplement_B5B-7219-00维修图纸手册

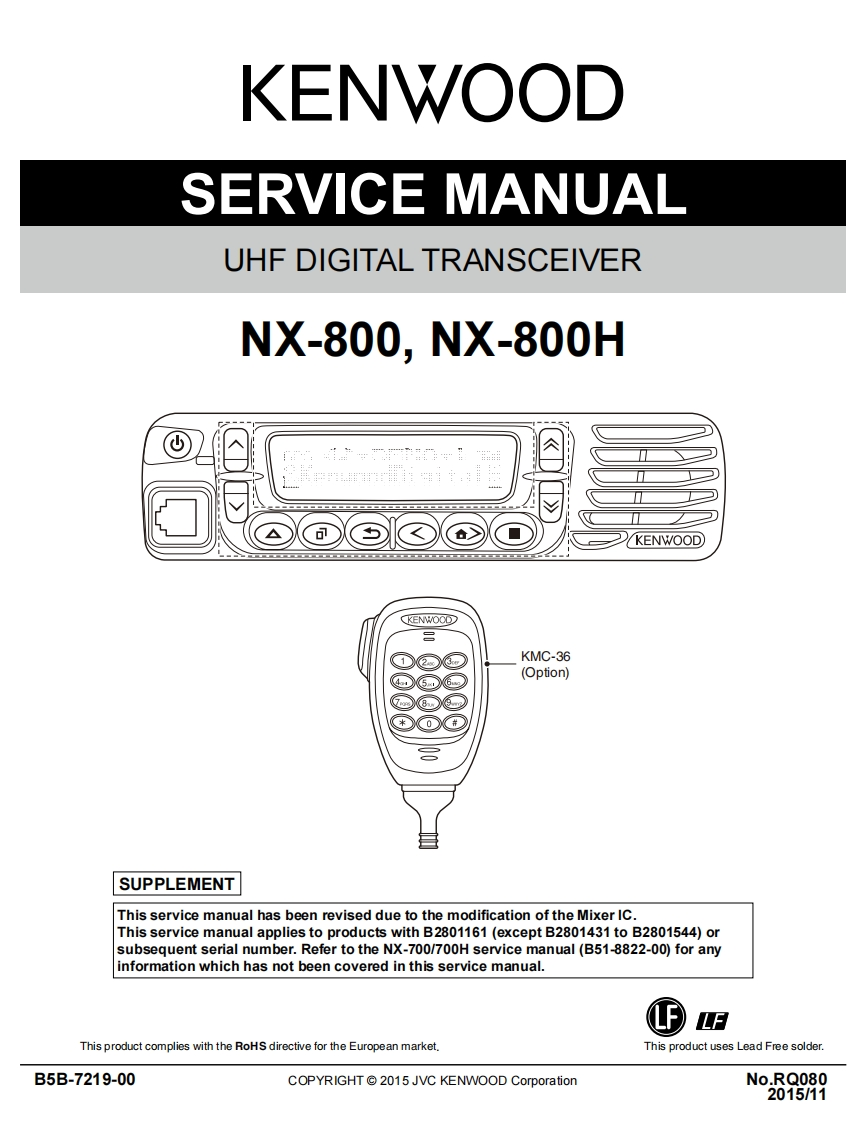

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERNX-800,NX-800HKENWOOD)KENWOOD吕①⊙OKMC-36④⑤⑨(Option)@⊙O*(⊙(#SUPPLEMENTThis service manual has been revised due to the modification of the Mixer IC.This service manual applies to products with B2801161 (except B2801431 to B2801544)orsubsequent serial number.Refer to the NX-700/700H service manual(B51-8822-00)for anyinformation which has not been covered in this service manual.LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.B5B-7219-00COPYRIGHT@2015 JVC KENWOOD CorporationNo.RQ0802015/11
