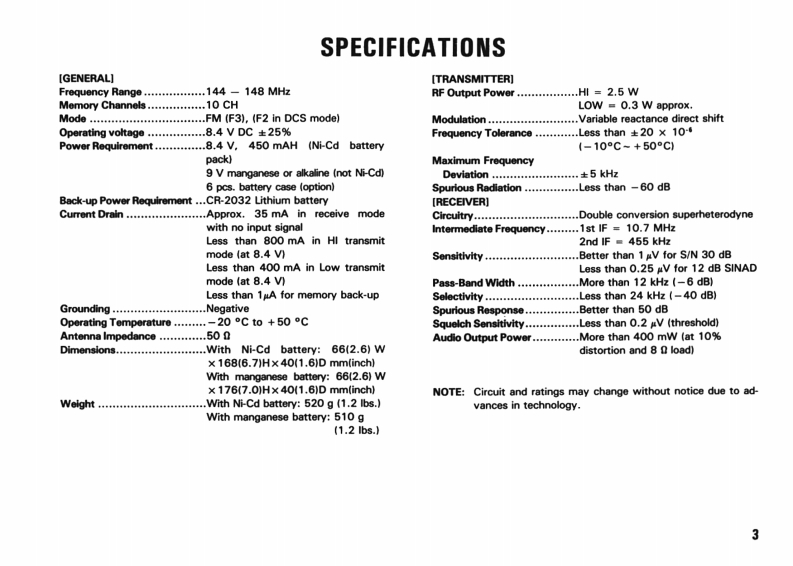

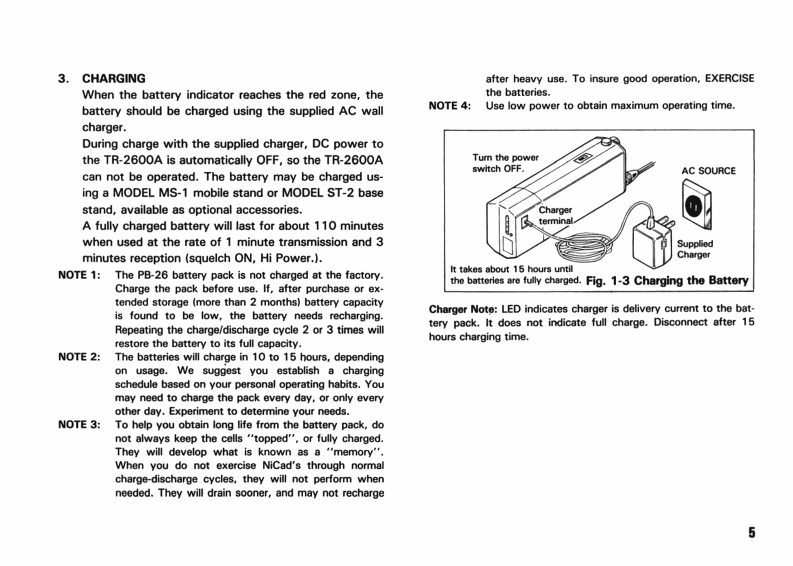

INTRODUCTIONCONTENTSYou are the owner of our newest product,theSPECIFICATIONS.…3TR-2600A Transceiver.Please read this instructionSection 1 PREPARATION FOR USE..........................4manual carefully before placing your transceiver inSection 2 CONTROLS AND TERMINALS..................7service.Section 3 DCS............13The unit has been carefully engineered and manufac-Section4 KEY BOARD OPERATION.........................14tured to rigid quality standards,and should give youSection 5 OPERATION................29satisfactory and dependable operation for manySection 6 ADDITIONAL INFORMATION...................30years.BLOCK DIAGRAM .........32AFTER UNPACKING:SCHEMATIC DIAGRAM (another sheet)Save the box and packing material in the event your unitneeds to be transported for remote operation,maintenance,or service.The following explicit definitions apply in thismanual:NOTE:If disregarded,inconvenience only,norisk of equipment damage or personal in-jury.CAUTION:Equipment damage may occur,but notpersonal injury.CAUTION:DO NOT CONNECT AN EXTERNAL DC SUP-PLY DIRECTLY TO THE CHARGE TERMINAL.Use only the supplied charger unit,optionalbase stand ST-2,or mobile stand MS-1.Exten-sive damage will occur if this is disregarded.CAUTION:DO NOT ATTEMPT TO MODIFY OR OTHER-WISE TOUCH CMOS LSI CIRCUITS.Leave allservice to a qualified,experienced technician.2Another PDF restoration brought to you by www.rigpix.comSorry,but the fromt page was unoblanium at the time of restoration
