编号72：建伍KENWOOD-NX-240(V)_B5B-7195-00(RA022)维修图纸手册

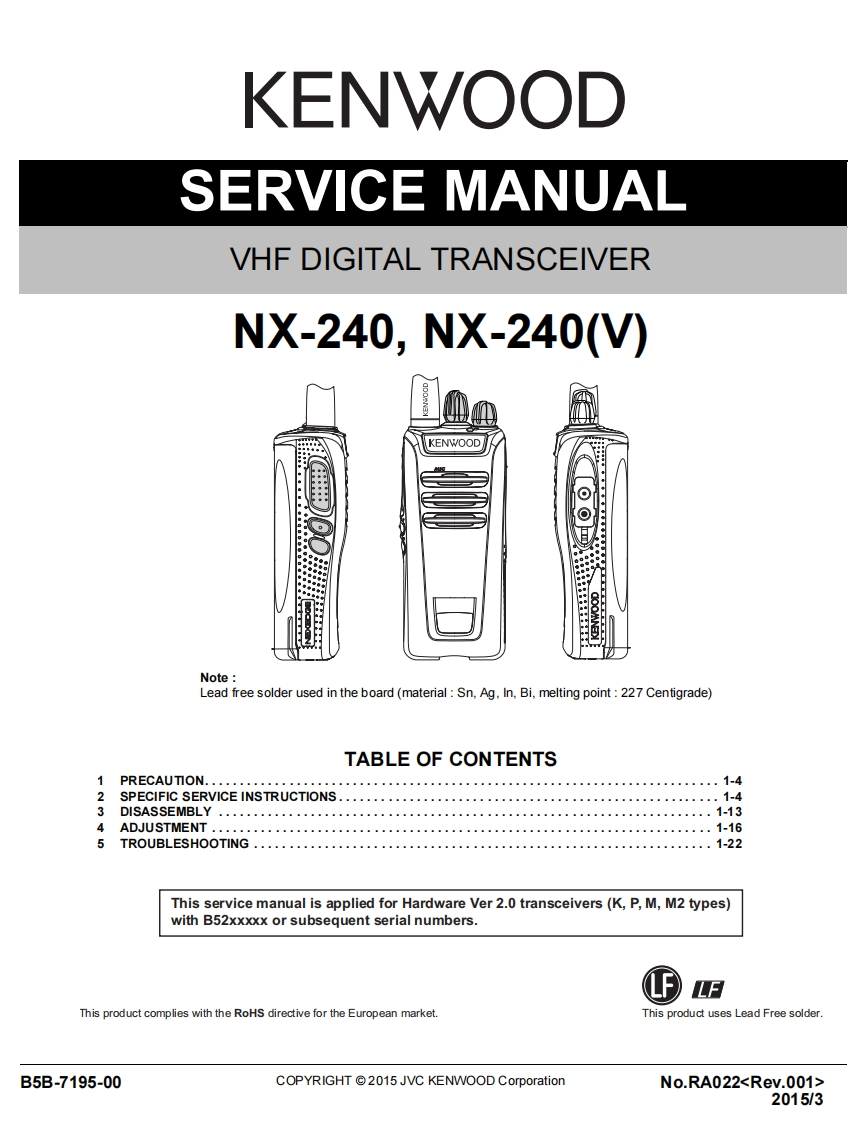

KENWOODSERVICE MANUALVHF DIGITAL TRANSCEIVERNX-240,NX-240V)KENWOODNote:Lead free solder used in the board(material:Sn,Ag,In,Bi,melting point:227 Centigrade)TABLE OF CONTENTS1PRECAUTION..·2…………1-4SPECIFIC SERVICE INSTRUCTIONS......................................................1-4DISASSEMBLY1-134ADJUSTMENT ...……1-16TROUBLESHOOTING.................................................................1-22This service manual is applied for Hardware Ver 2.0 transceivers(K,P,M,M2 types)with B52xxxxx or subsequent serial numbers.LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.B5B-7195-00COPYRIGHT 2015 JVC KENWOOD CorporationNo.RA0222015/3
