TK-3107(M)维修手册_B53-7023-00

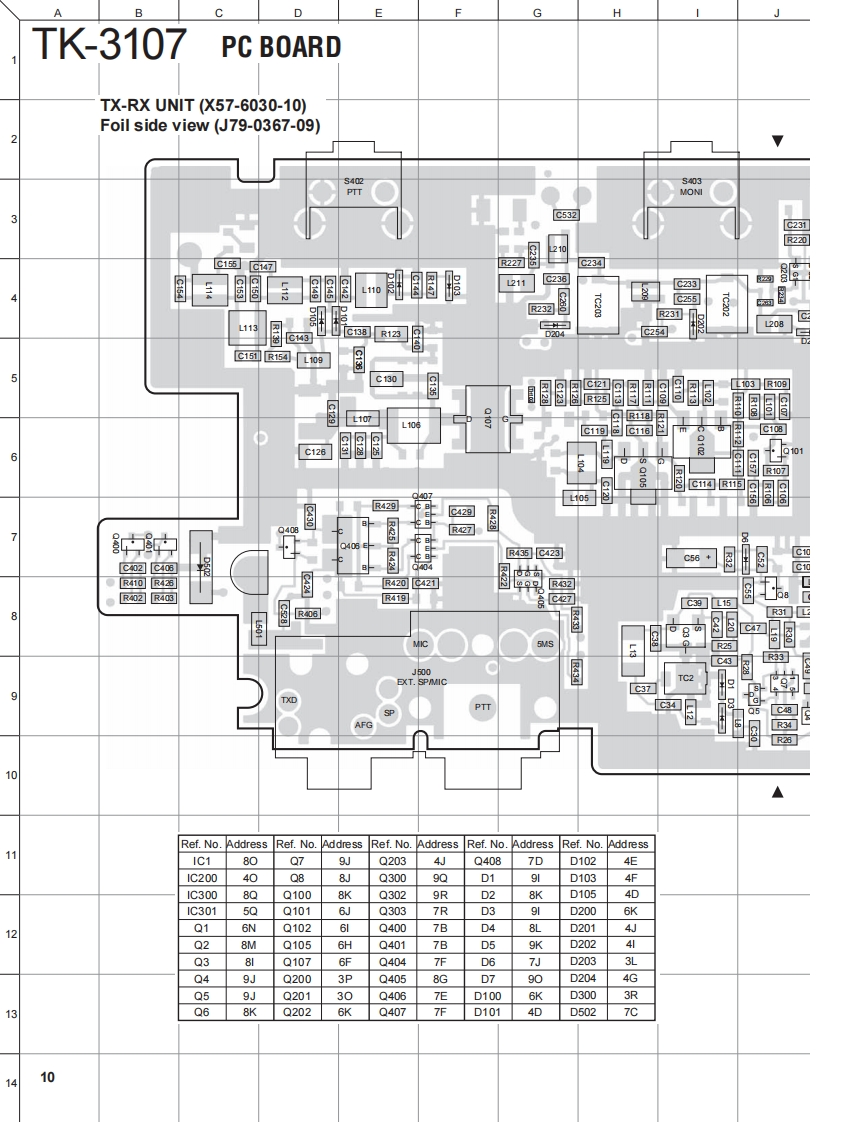

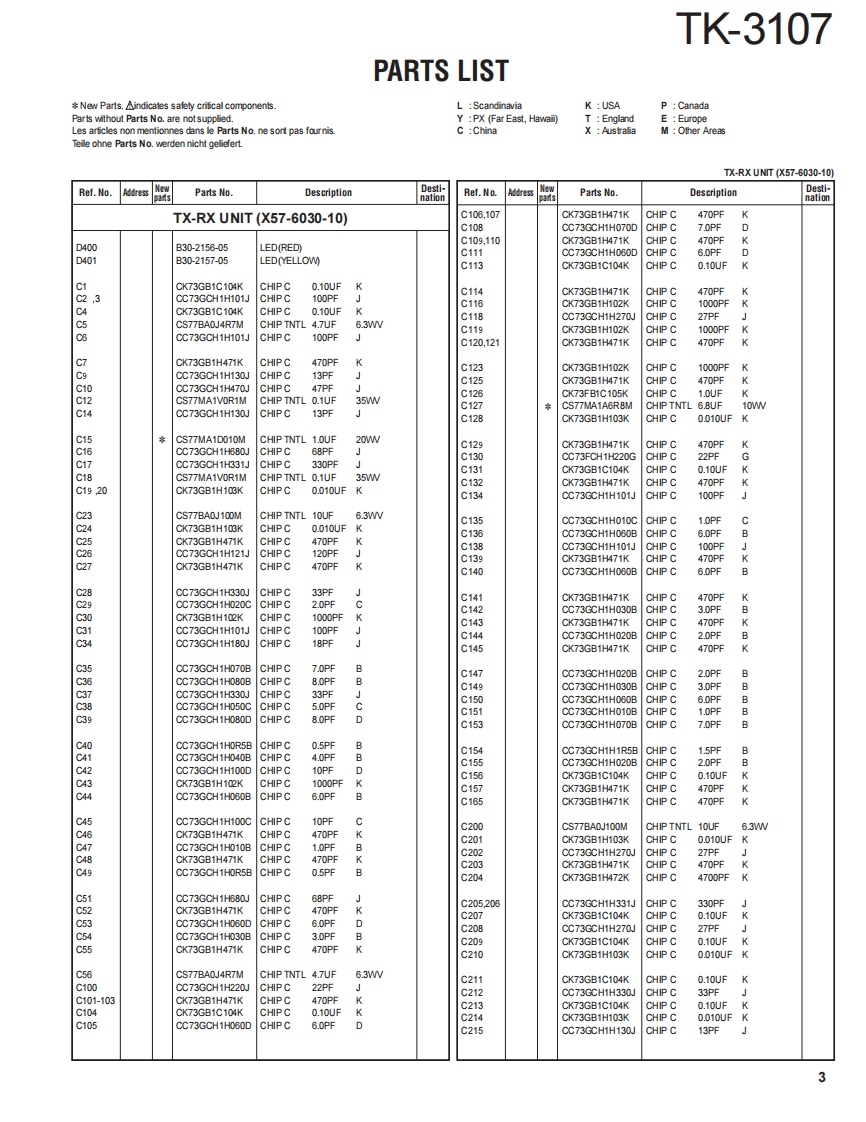

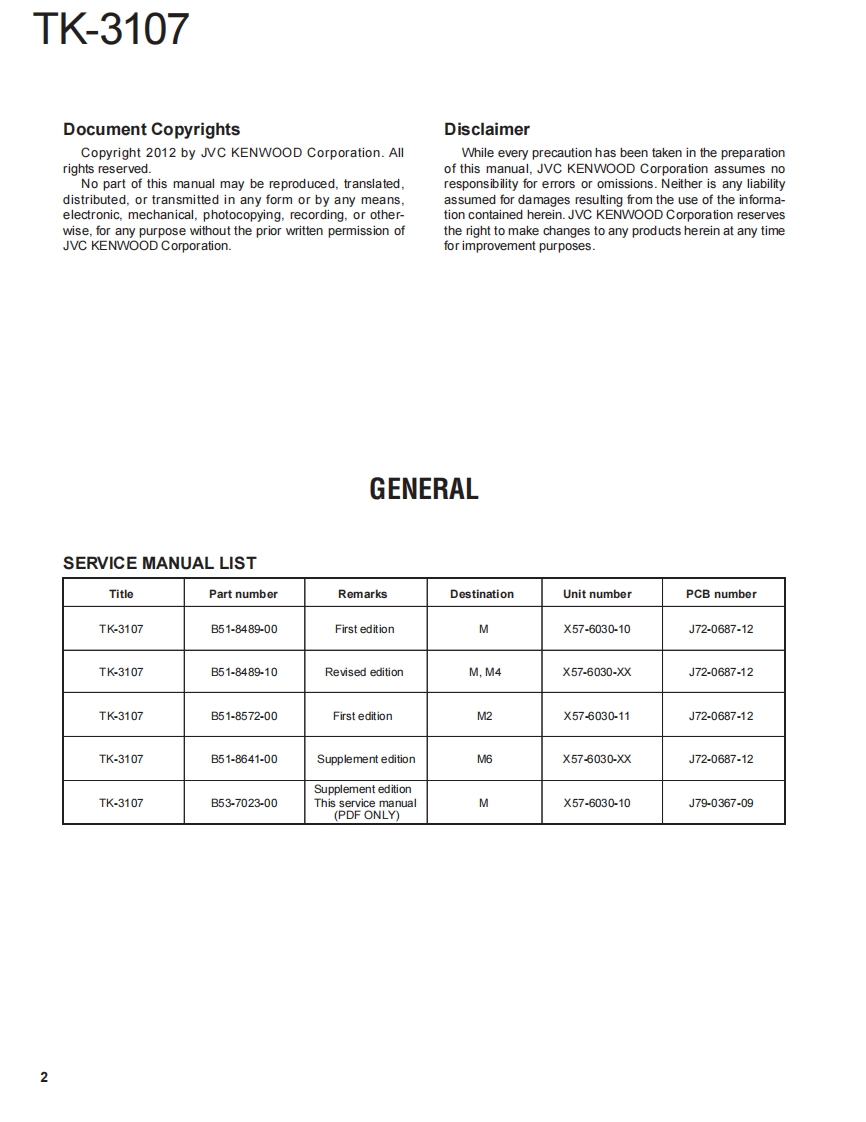

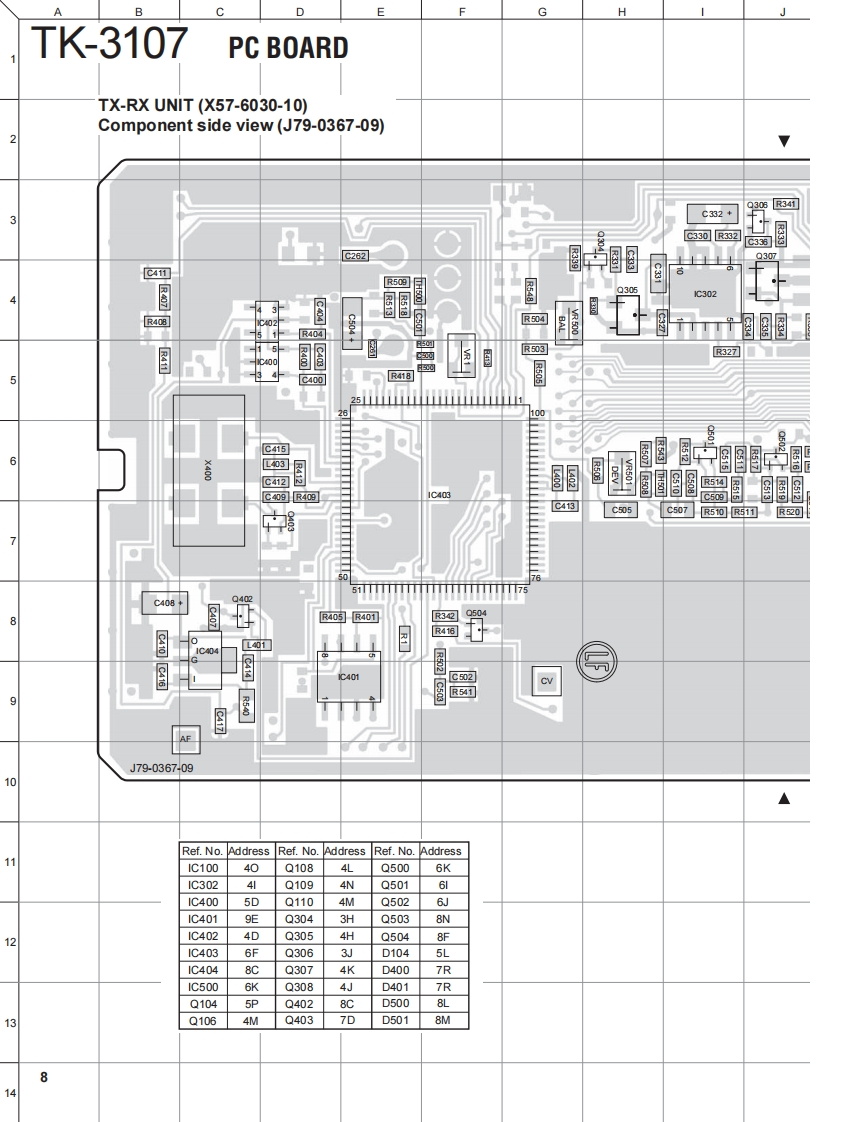

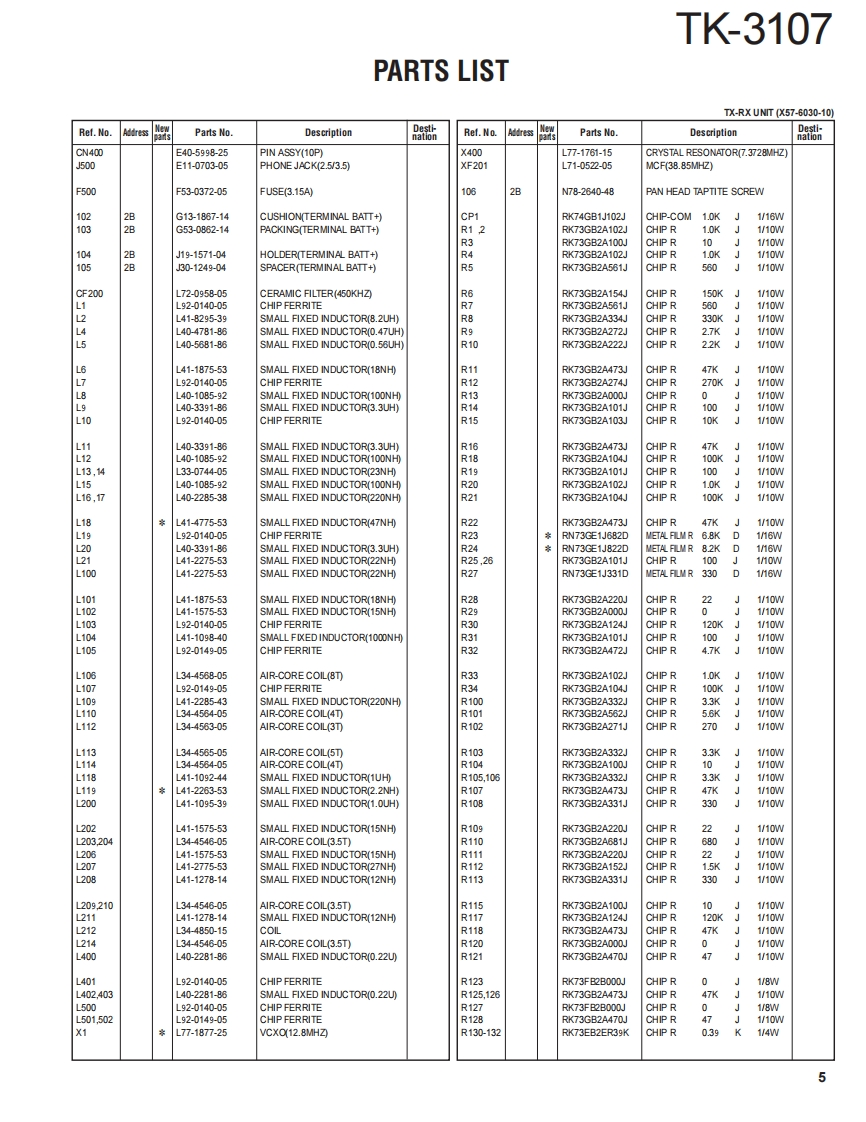

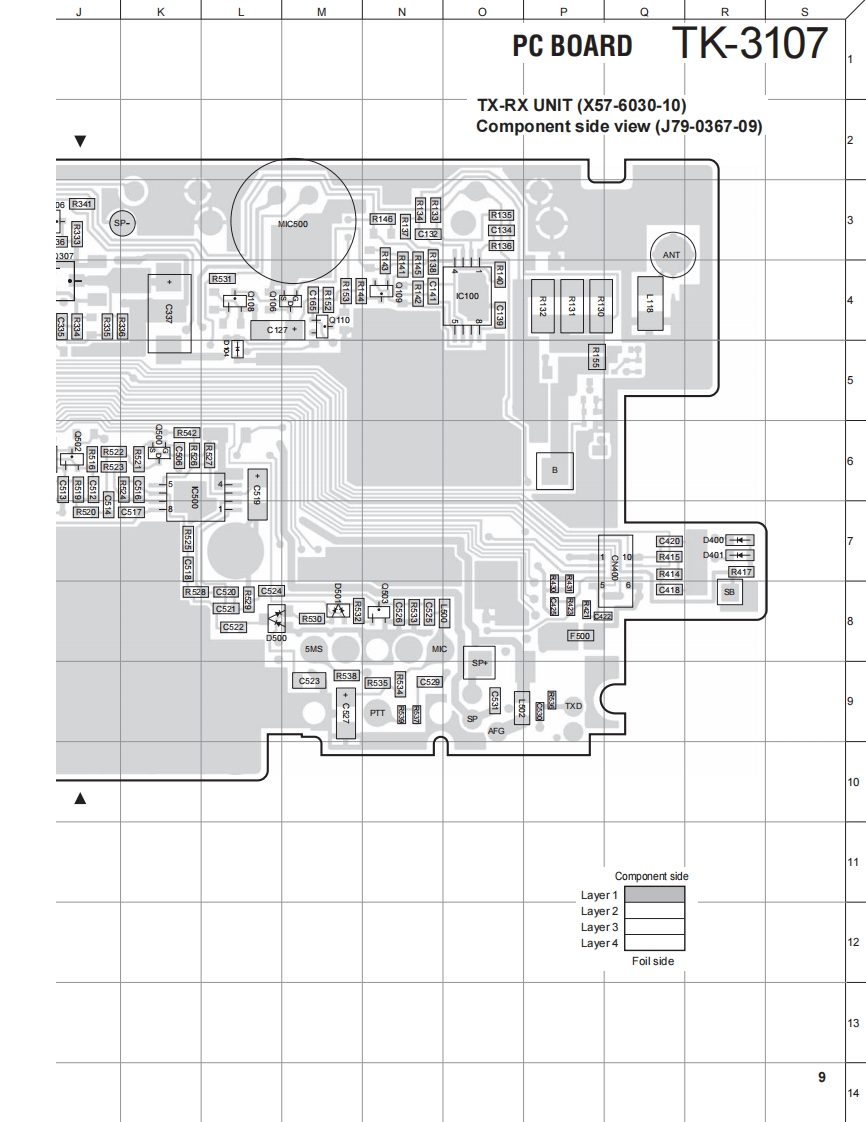

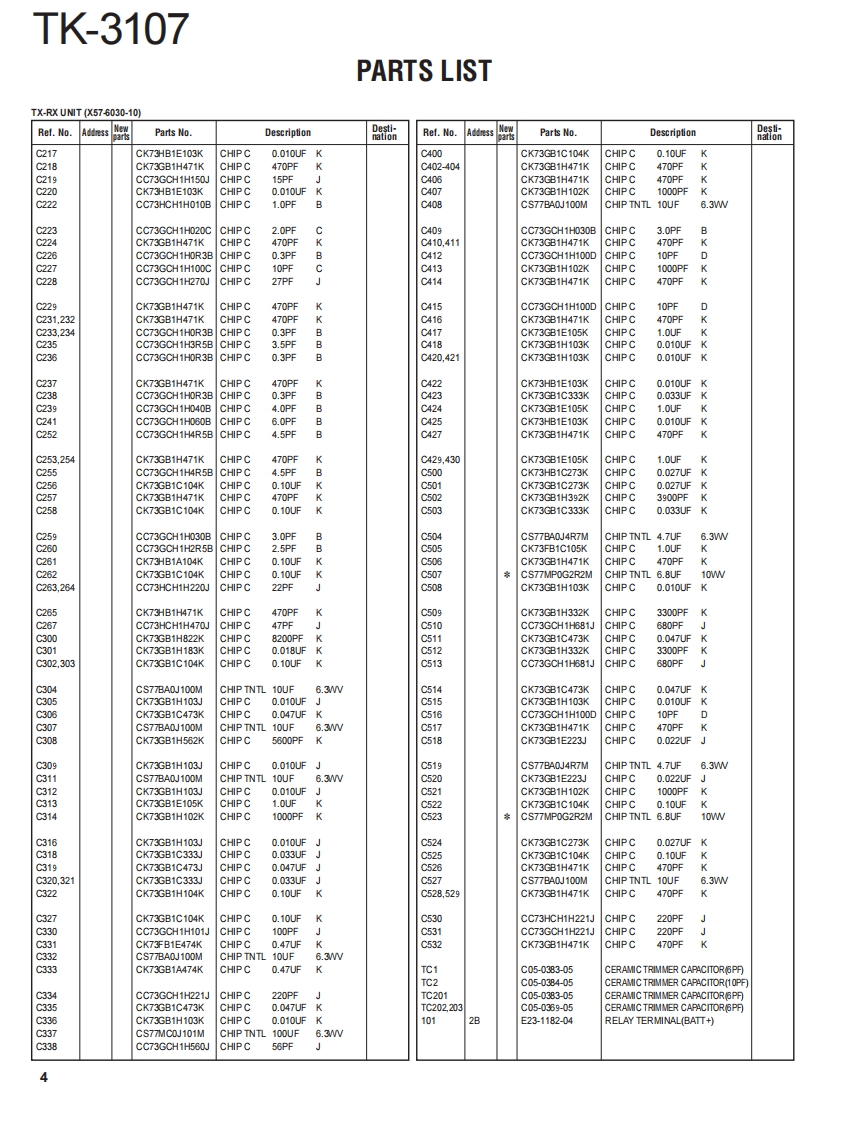

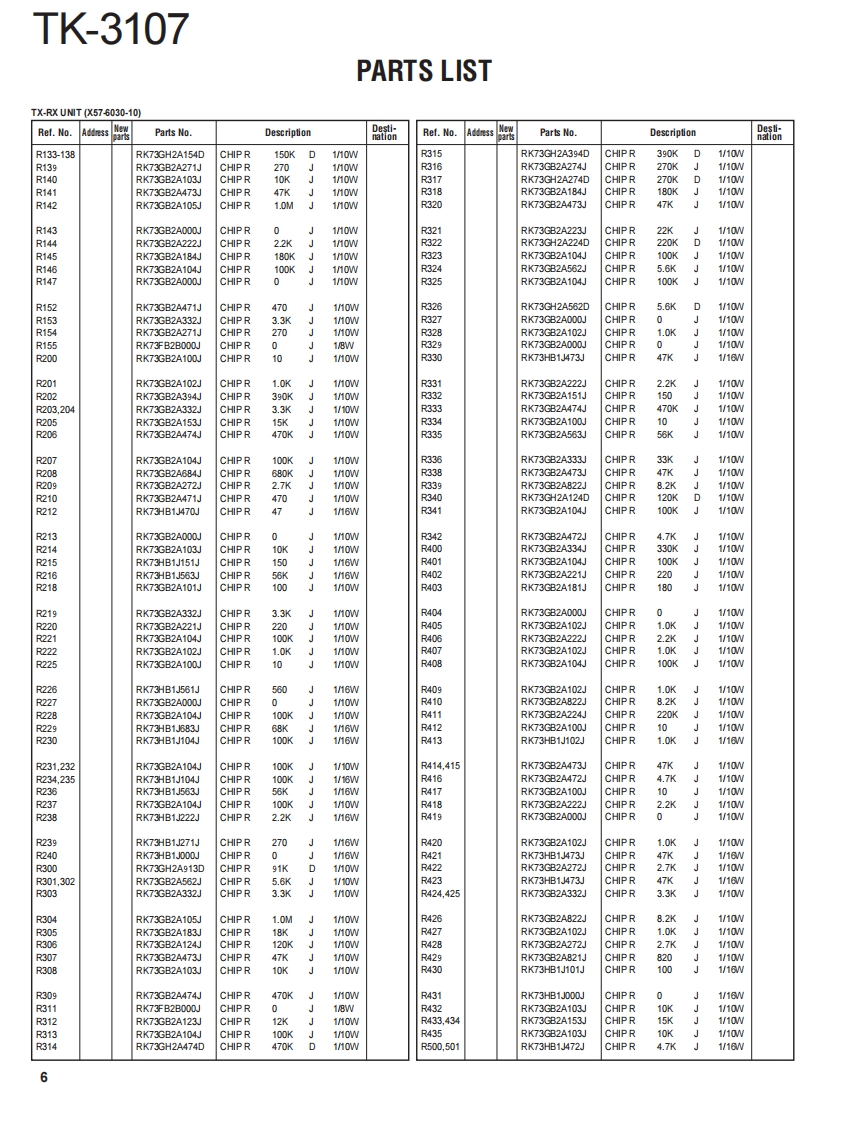

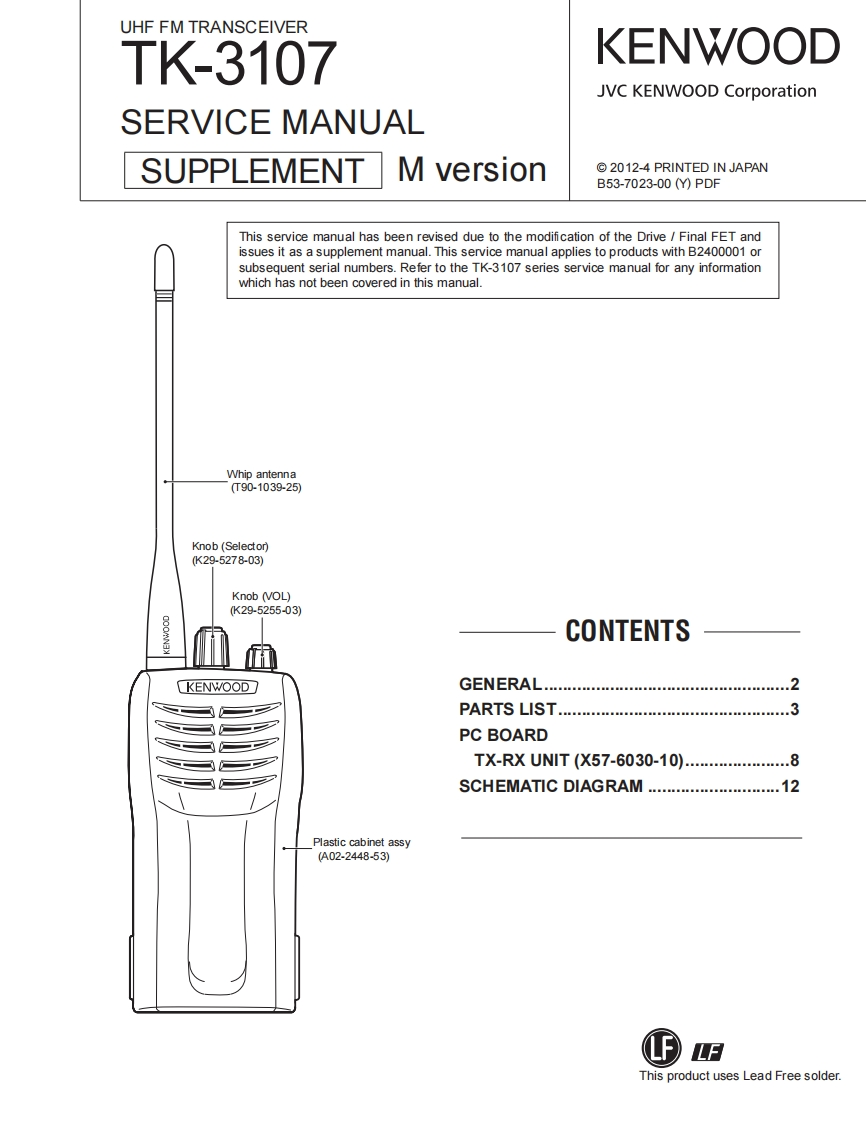

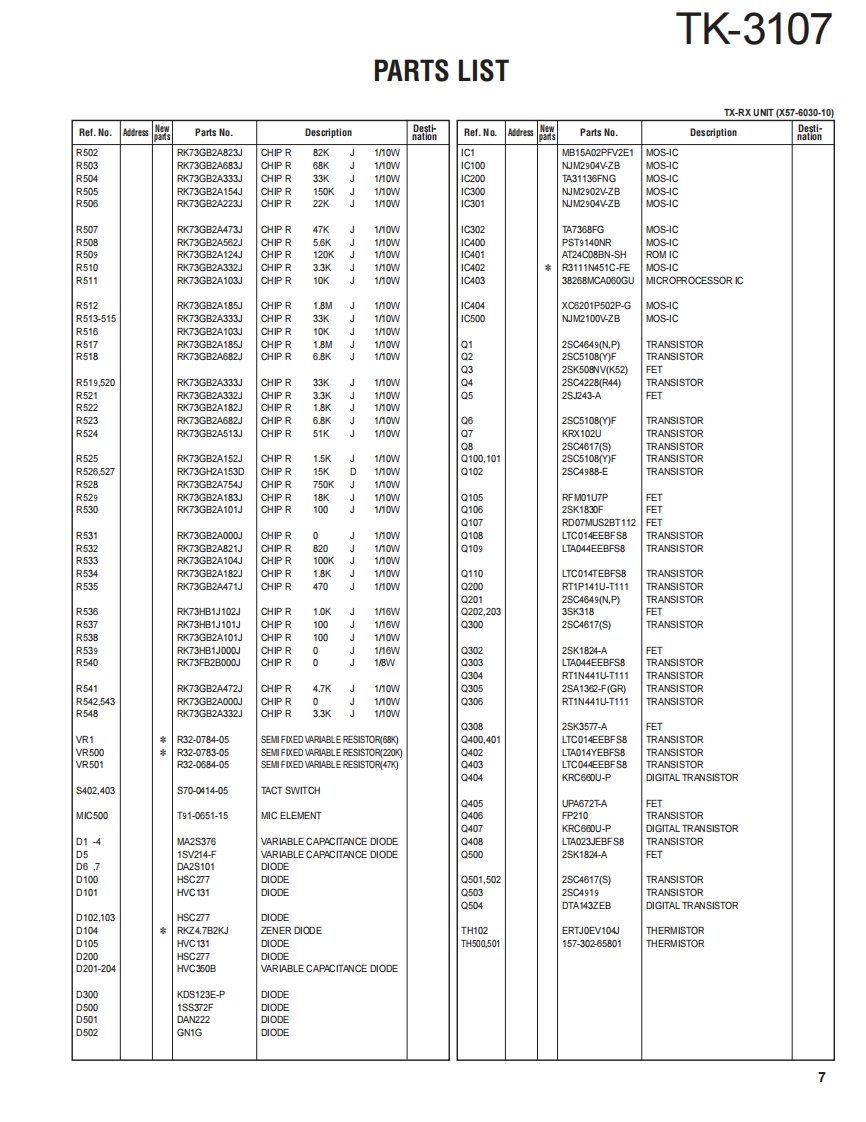

UHF FM TRANSCEIVERTK-3107KENWOODJVC KENWOOD CorporationSERVICE MANUALSUPPLEMENTM version2012-4 PRINTED IN JAPANB53-7023-00Y)PDFThis service manual has been revised due to the modification of the Drive Final FET andissues it as a supplement manual.This service manual applies to products with B2400001 orsubsequent serial numbers.Refer to the TK-3107 series service manual for any informationwhich has not been covered in this manual.Whip antennaT90-1039-25Knob(Selector)K29-5278-03)Knob (VOL)K29-5255-03)CONTENTSKENWOODGENERAL...................2PARTS LIST.....3PC BOARDTX-RX UNIT(X57-6030-10).8SCHEMATIC DIAGRAM.12Plastic cabinet assyA02-2448-53)LFThis product uses Lead Free solder.
