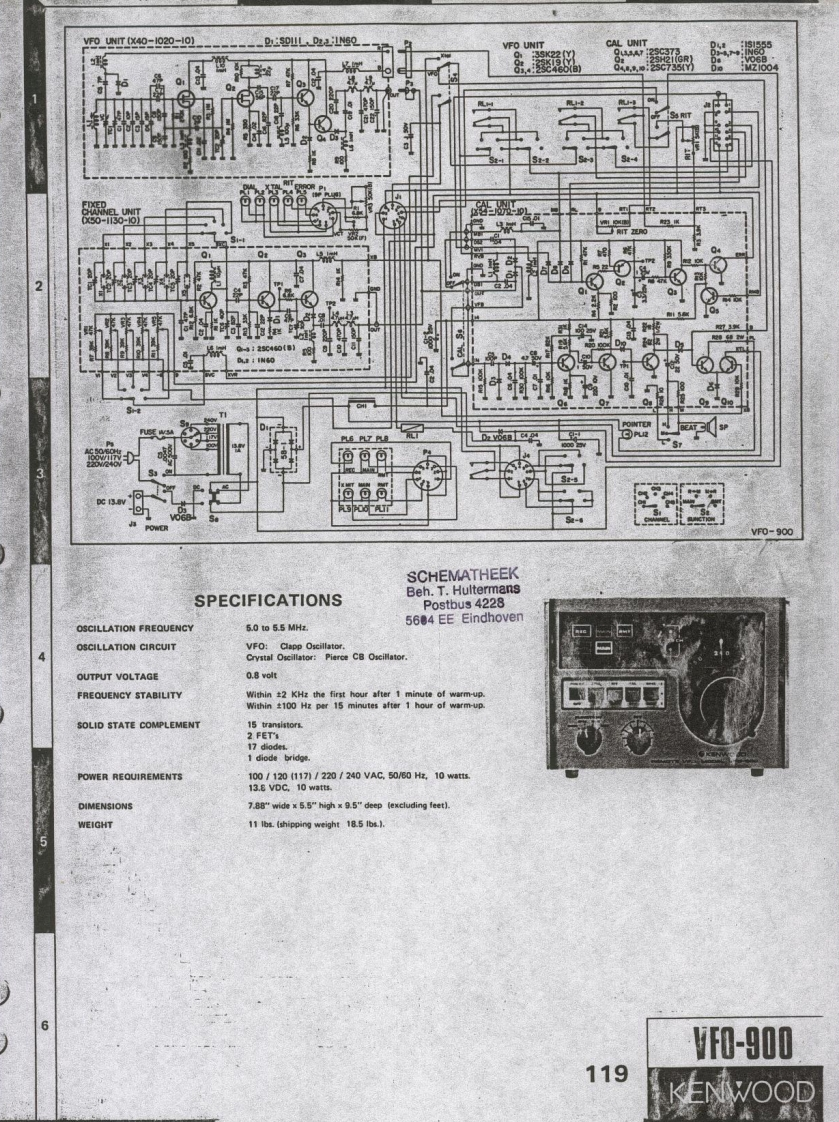

FNrX40=1020-101卫50L,D22LN60FO UNnCAL UNIT鼻饰藷损道司图/Fo-900SCHEMATHEEKBeh.T.HultermansSPECIFICATIONSPostbus 42285604 EE EindhovenOSCILLATION FREQUENCY5.0 to 5.5 MHz.OSCILLATION CIRCUITVFO:Clapp Oscillator4OUTPUT VOLTAGE0.8 voltFREQUENCY STABILITYWithin 2 KHa the first hour after1 minute of warm-upWithin 2100 Hz per 15 minutes after 1 hour of warm-upSOLID STATE COMPLEMENT15 transistors.2 FET17 diodes.1 diode bridge.POWER REQUIREMENTS100/1201171/220/240VAC.50/e0Hk,10wat13.B VDC.10 wattsDIMENSIONS7.88"wide x5.5"high x95"deep (excluding feet).WEIGHT11 bs (shipping weight 185 b).6F0-900119KENWOOD
