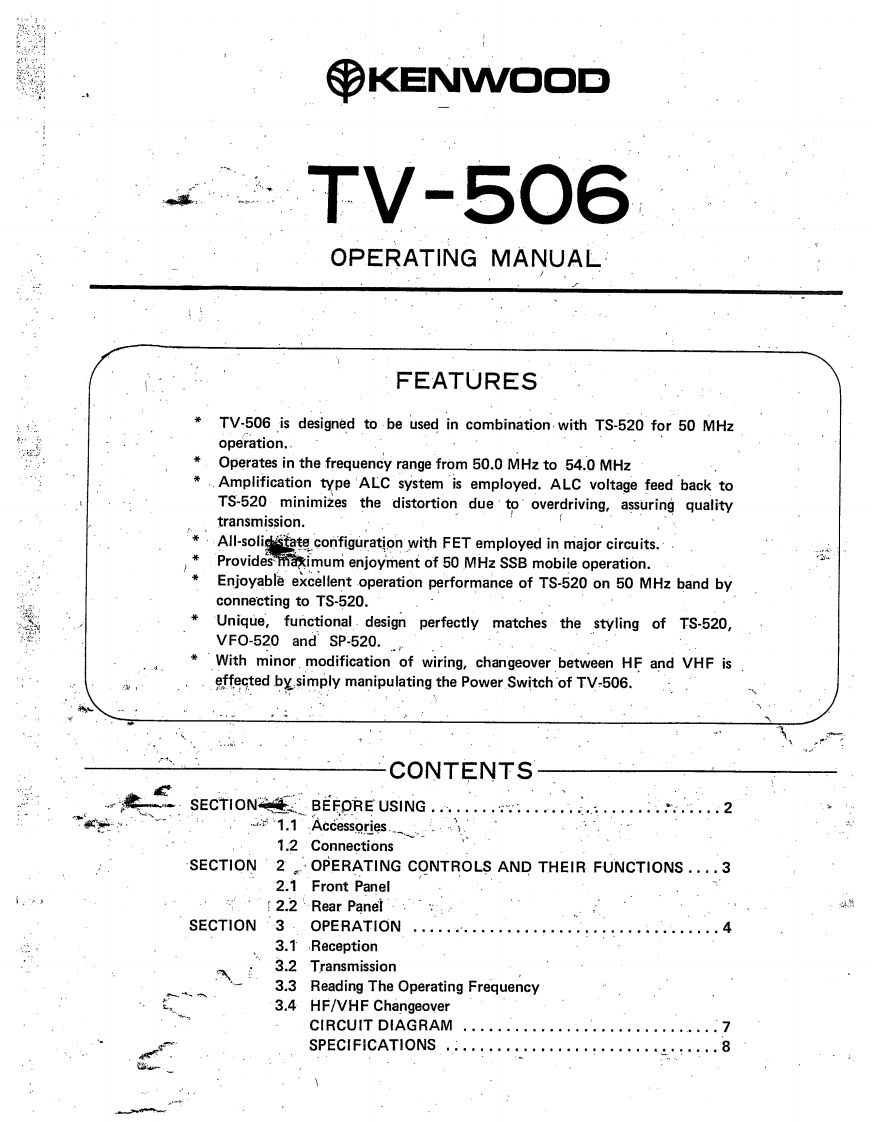

KENWOODTV-506OPERATING MANUALFEATURESTV-506 is designed to be used in combination.with TS-520 for 50 MHzoperation..Operates in the frequency range from 50.0 MHz to 54.0 MHz米Amplification type ALC system is employed.ALC voltage feed back toTS-520 minimizes the distortion due to overdriving,assuring qualitytransmission.All-solid state configuration with FET employed in major circuits.Provides maximum enjoyment of 50 MHz SSB mobile operation.Enjoyable excellent operation performance of TS-520 on 50 MHz band byconnecting to TS-520.Unique,functional design perfectly matches the styling of TS-520,VF0-520 and SP-520..,With minor.modification of wiring,changeover between HF and VHF iseffected by simply manipulating the Power Switch of TV-506.:CONTENTSSECTION BEFORE USING..............................21.1 Acdessories.1.2 ConnectionsSECTION2OPERATING CONTROLS AND THEIR FUNCTIONS....32.1 Front Panel.·f2.2 Rear Panel·SECTION3·OPERATION3.1 Reception3.2Transmission3.3 Reading The Operating Frequency3.4 HF/VHF ChangeoverCIRCUIT DIAGRAMSPECIFICATIONS
