Kenwood_TL-120_电器原理图

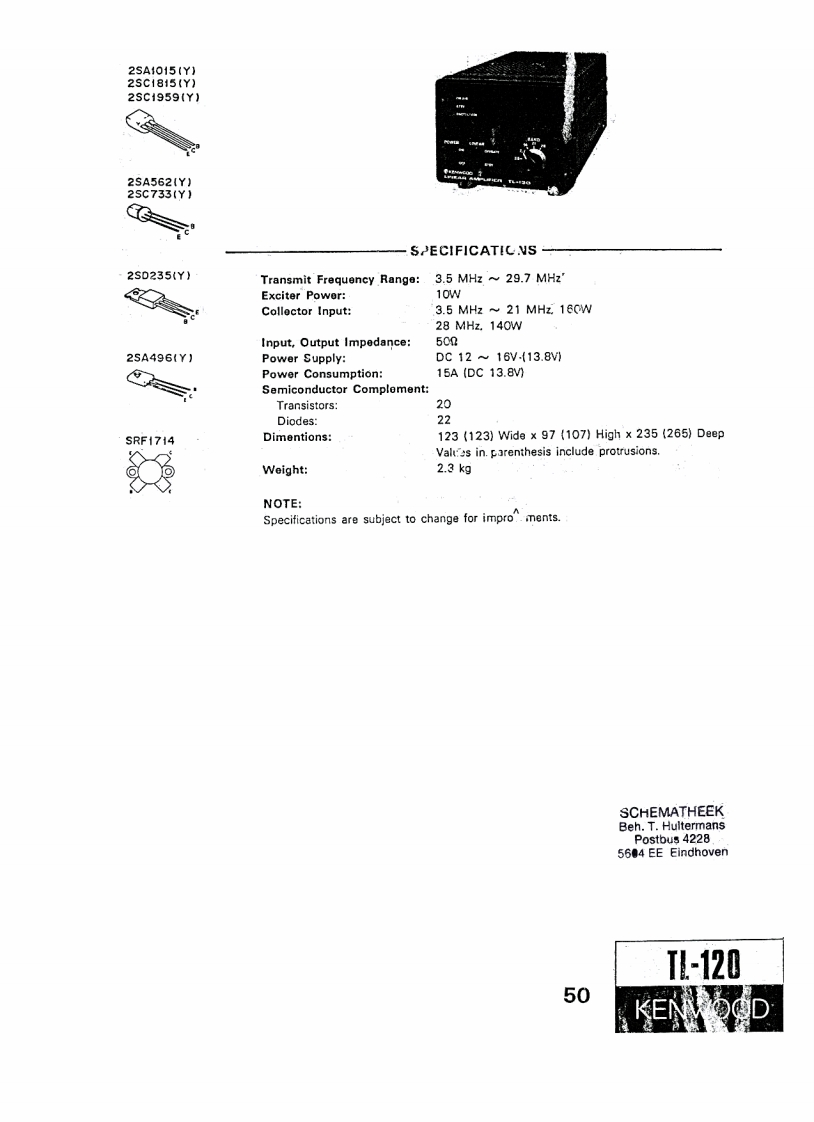

2SA1015(Y)2SC1815(Y)2sC1959(Y)2SA562(Y)2sC733(Y】SPECIFICATICNS2S0235(Y)】Transmit Frequency Range:3.5 MHz~29.7 MHz"aExciter Powor:10WCollector Input:3.5 MHz 21 MHz.160W28MHz.140WInput,Output Impedance:5002SA496(Y)Power Supply:DC12w16y-(13.813三Power Consumption:15A(DC13.80Semiconductor Complement:Transistors:20Diodes:22SRF1714Dimentions:123(123)Wide×97(107)High×235(265)DeepValtes in.parenthesis include protrusions.Weight:2.3kgNOTE:Specifications are subject to change for impro ments.SCHEMATHEEKBeh.T.HultermansPostbus 42285604 EE EindhovenT-12050KENMOCD
