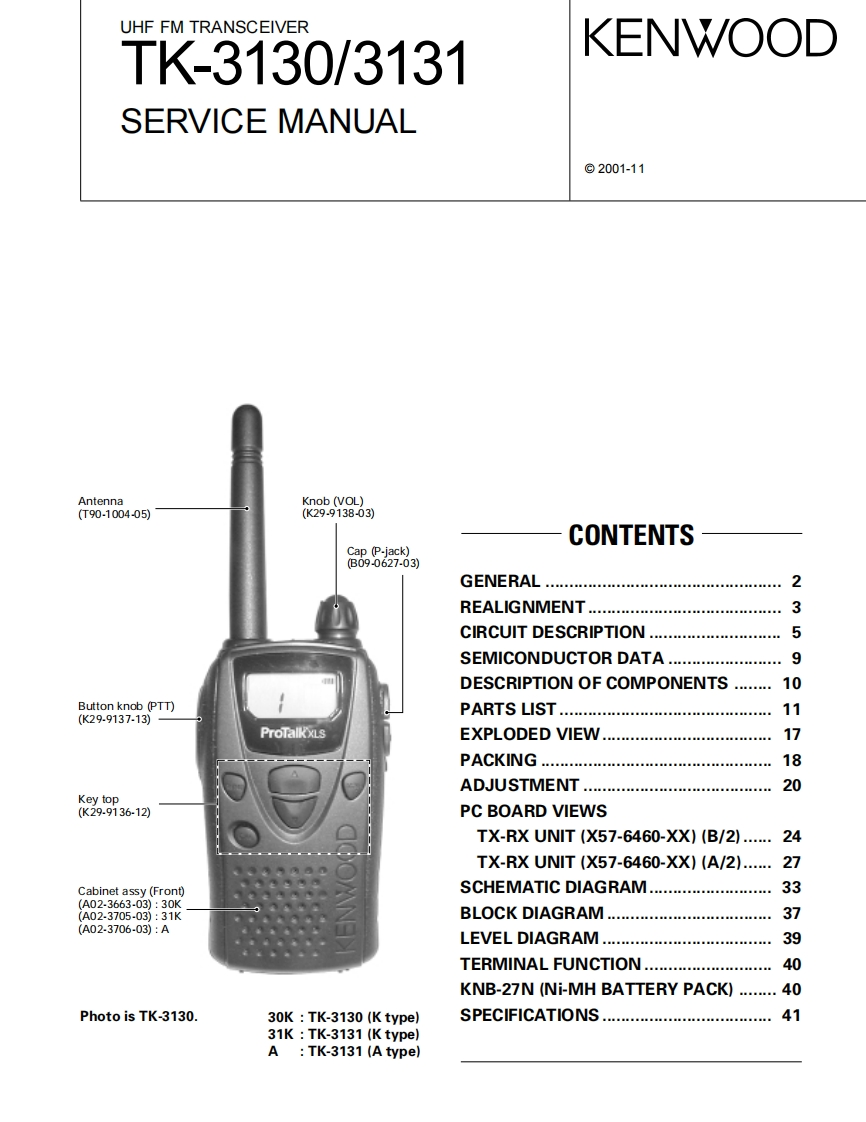

UHF FM TRANSCEIVERTK-3130/3131KENWOODSERVICE MANUAL©2001-11AntennaKnob (VOL)(T90-1004-05)(K29-9138-03)CONTENTSCap (P-jack)B09-0627-03)GENERAL…2BEALIGNMENT.3CIRCUIT DESCRIPTION.....................5SEMICONDUCTOR DATA...............9DESCRIPTION OF COMPONENTS .......10Button knob (PTT)PARTS LIST........11(K29.9137.13)ProTalkxLsEXPLODED VIEW.....17PACKING..…e.....18ADJUSTMENT.…20Key top(K29.9136-12)PC BOARD VIEWSTX-RX UNIT (X57-6460-XX)(B/2)......24TX-RX UNIT (X57-6460-XX)(A/2)......27Cabinet assy (Front)SCHEMATIC DIAGRAM................33(A02.3663-03):30K(A02-3705-03):31KBLOCK DIAGRAM...37(A02-3706-03):ALEVELDIAGRAM39TERMINAL FUNCTION.................40KNB-27N (Ni-MH BATTERY PACK)........40Photo is TK-3130.30K TK-3130(K type)SPECIFICATIONS.4131K TK-3131 (K type)A TK-3131 (A type)
