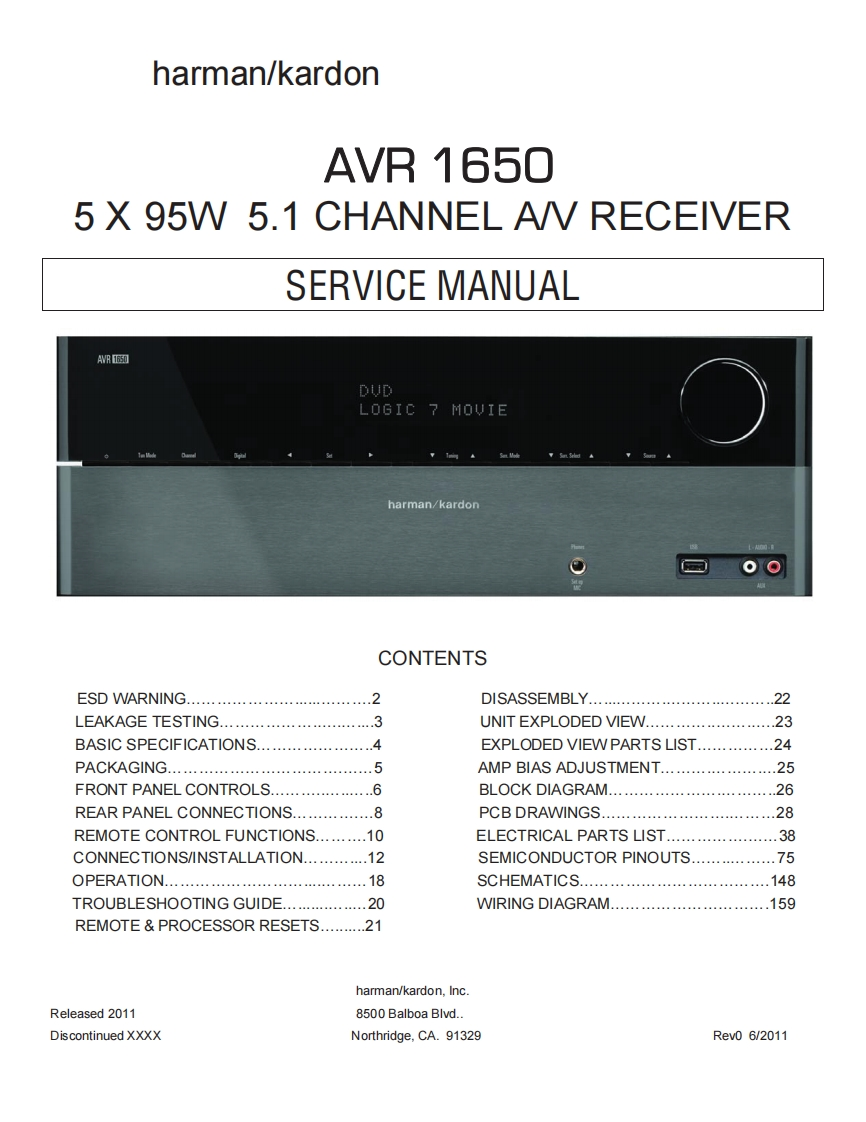

harman/kardonAVR 16505X 95W 5.1 CHANNEL AV RECEIVERSERVICE MANUALAWR面DUDLOGIC 7 MOVIEharman/kardonCONTENTSESD WARNING.......2DISASSEMBLY..........22LEAKAGE TESTING.....................3UNIT EXPLODED VIEW.............23BASIC SPECIFICATIONS.................4EXPLODED VIEW PARTS LIST..............24PACKAGING.....5AMP BIAS ADJUSTMENT....................5FRONT PANEL CONTROLS....................6BLOCK DIAGRAM.26REAR PANEL CONNECTIONS.......8PCB DRAWINGS...........28REMOTE CONTROL FUNCTIONS..........10ELECTRICAL PARTS LIST......38CONNECTIONS/INSTALLATION.............12SEMICONDUCTOR PINOUTS.............5OPERATION......18SCHEMAT1CS..........148TROUBLESHOOTING GUIDE.................20WIRING DIAGRAM.......................159REMOTE PROCESSOR RESETS..........21harman/kardon,Inc.Released 20118500 Balboa Blvd..Discontinued XXXXNorthridge,CA.91329Rev06/2011
