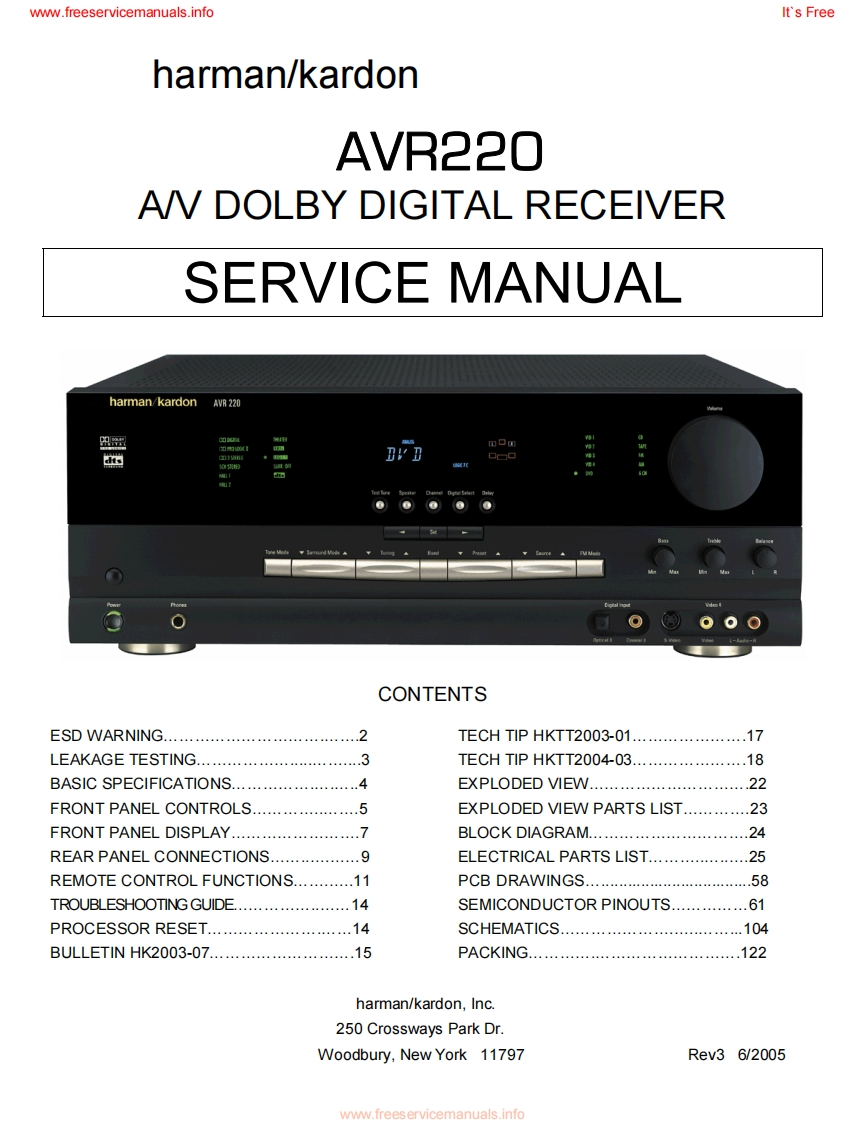

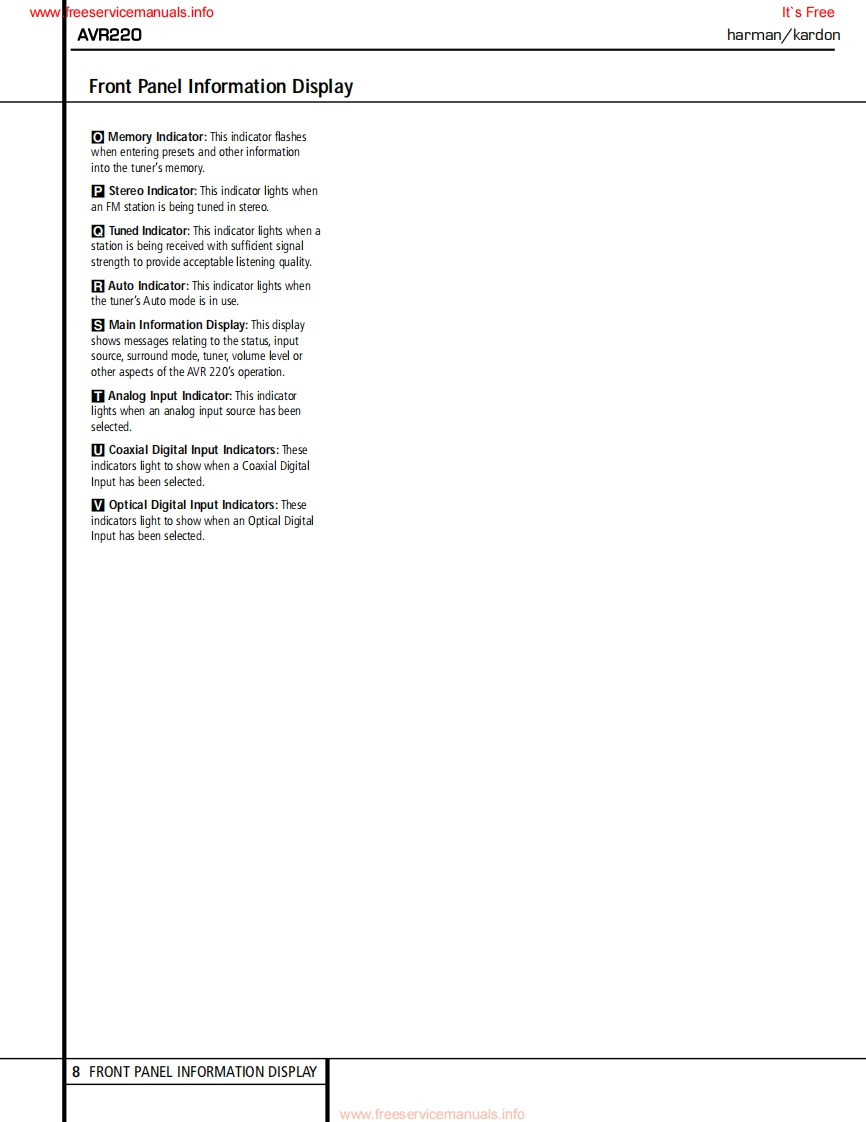

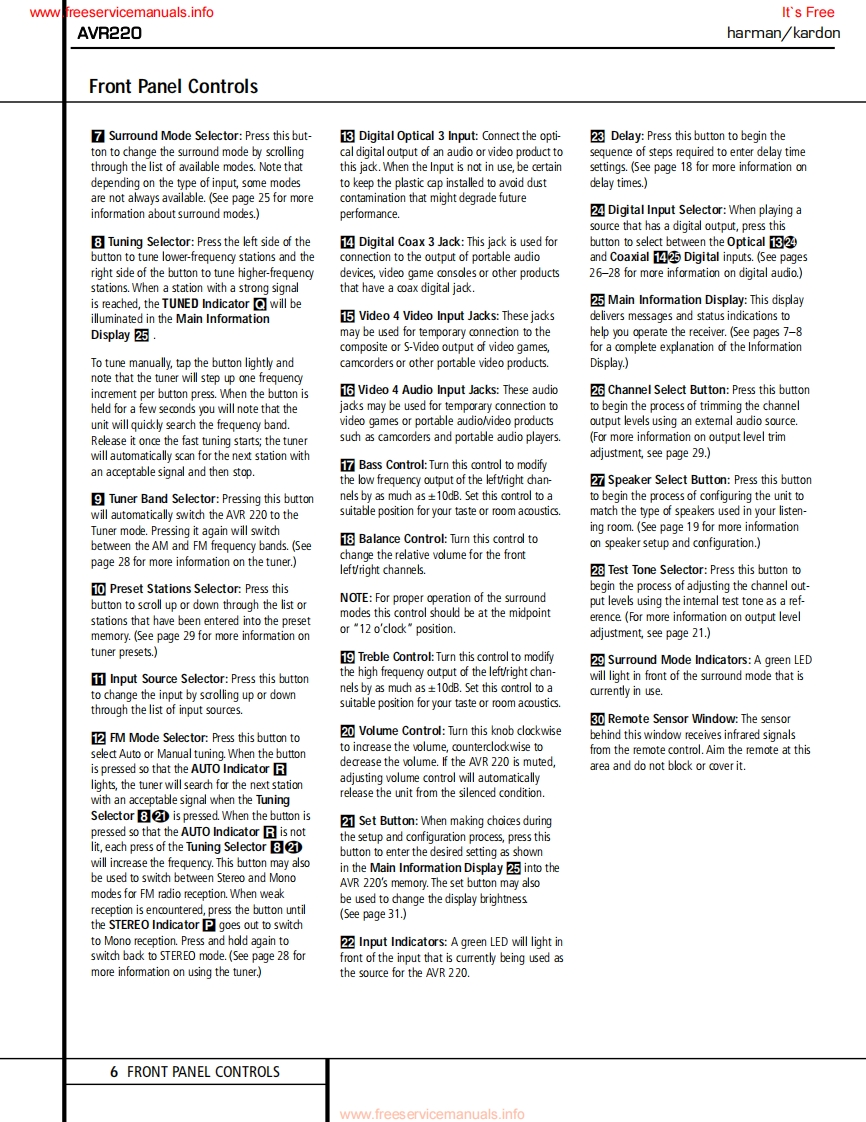

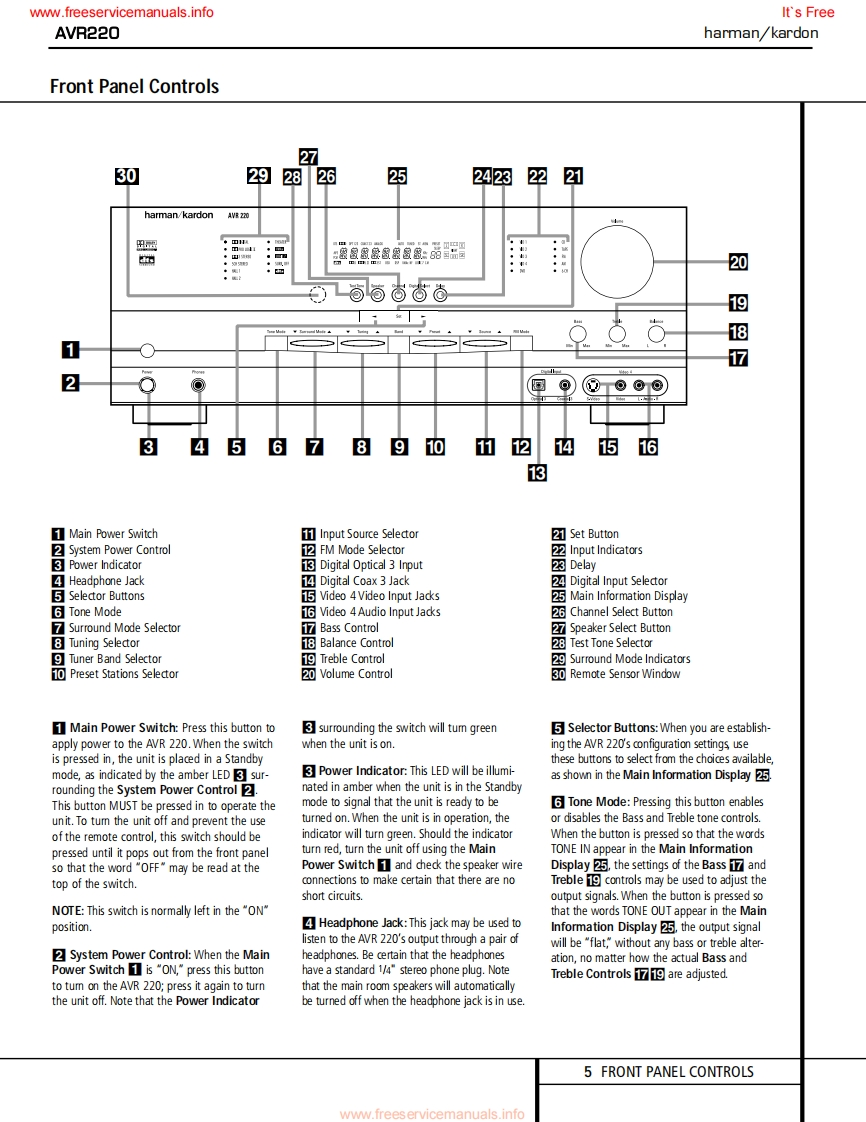

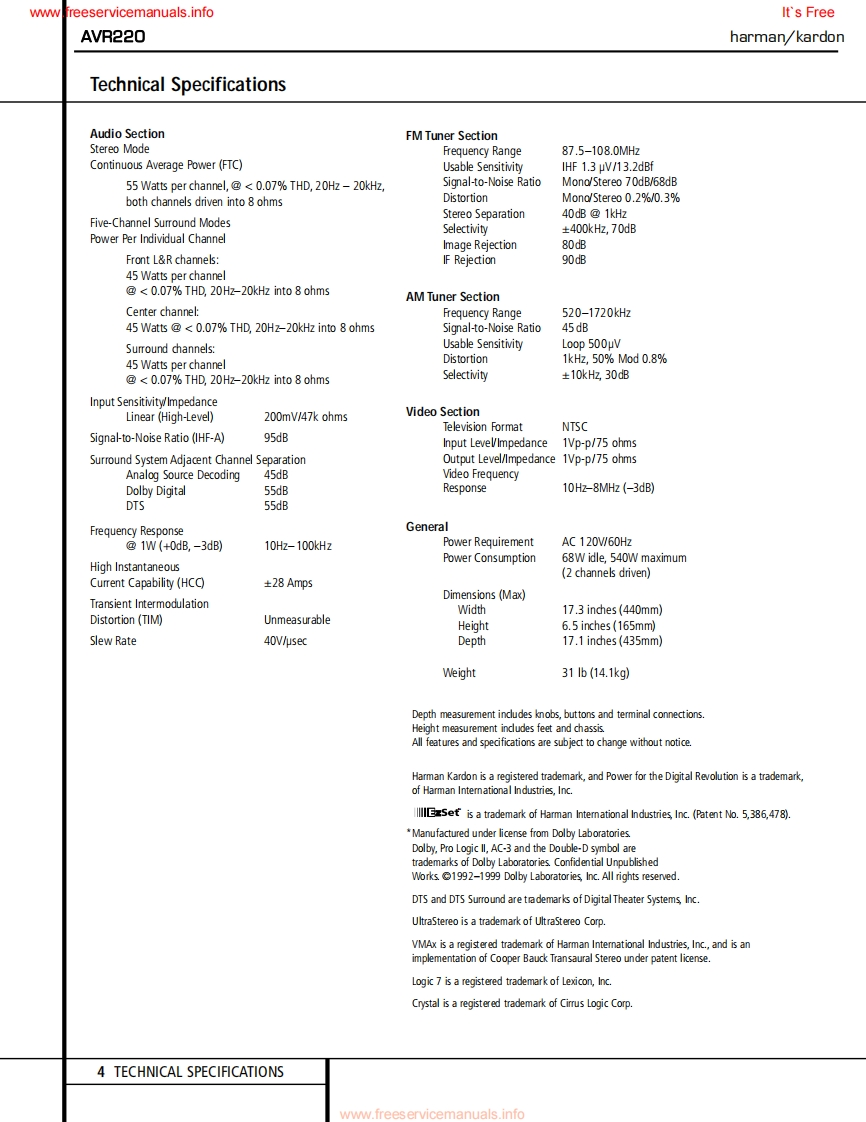

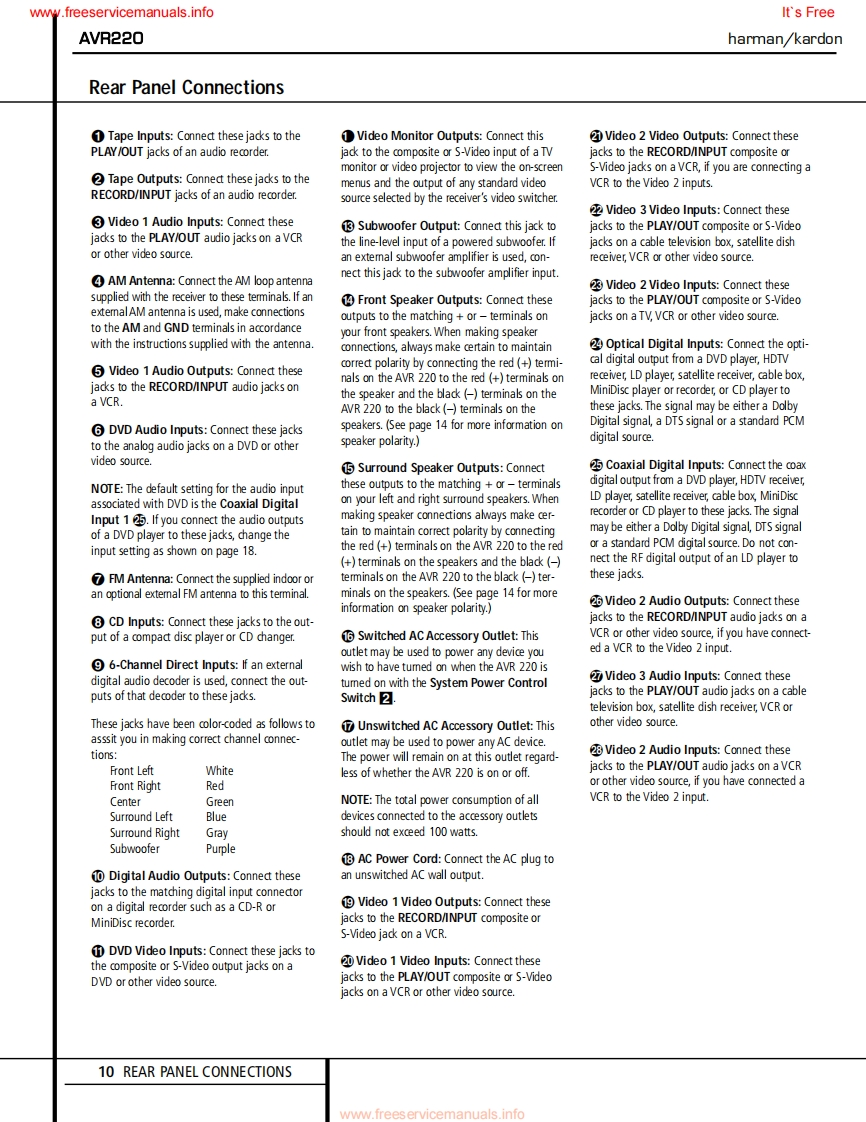

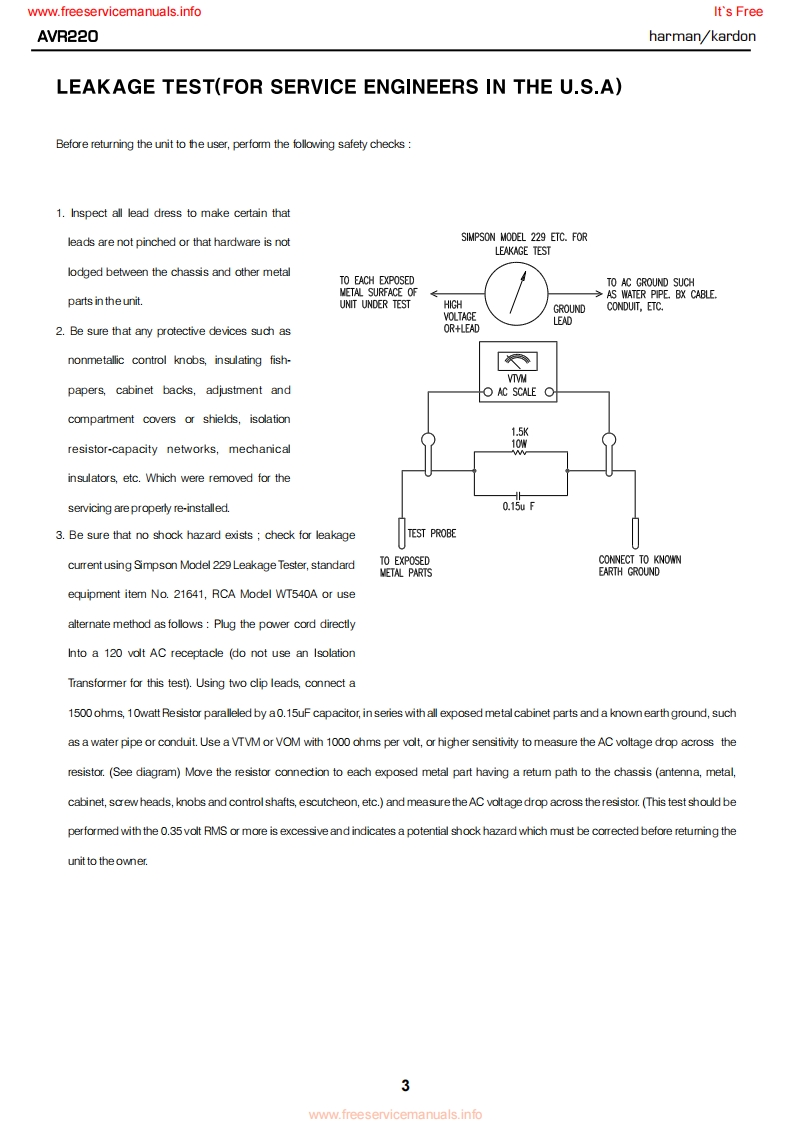

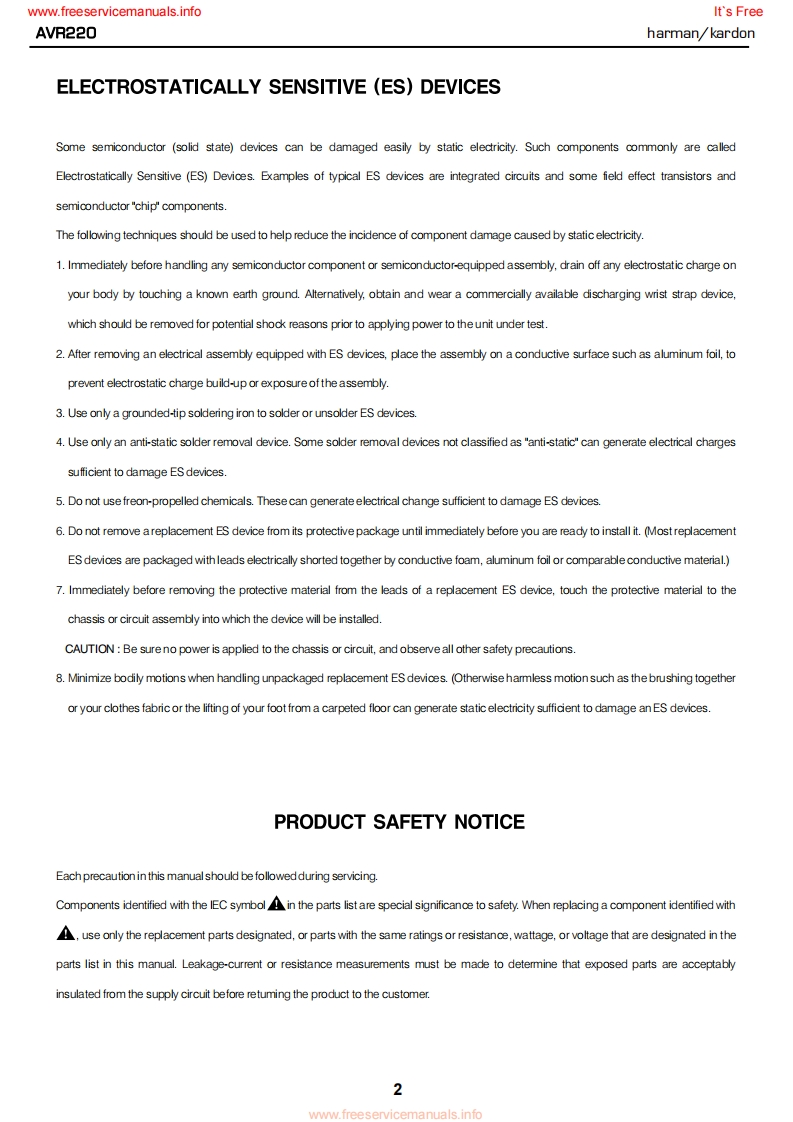

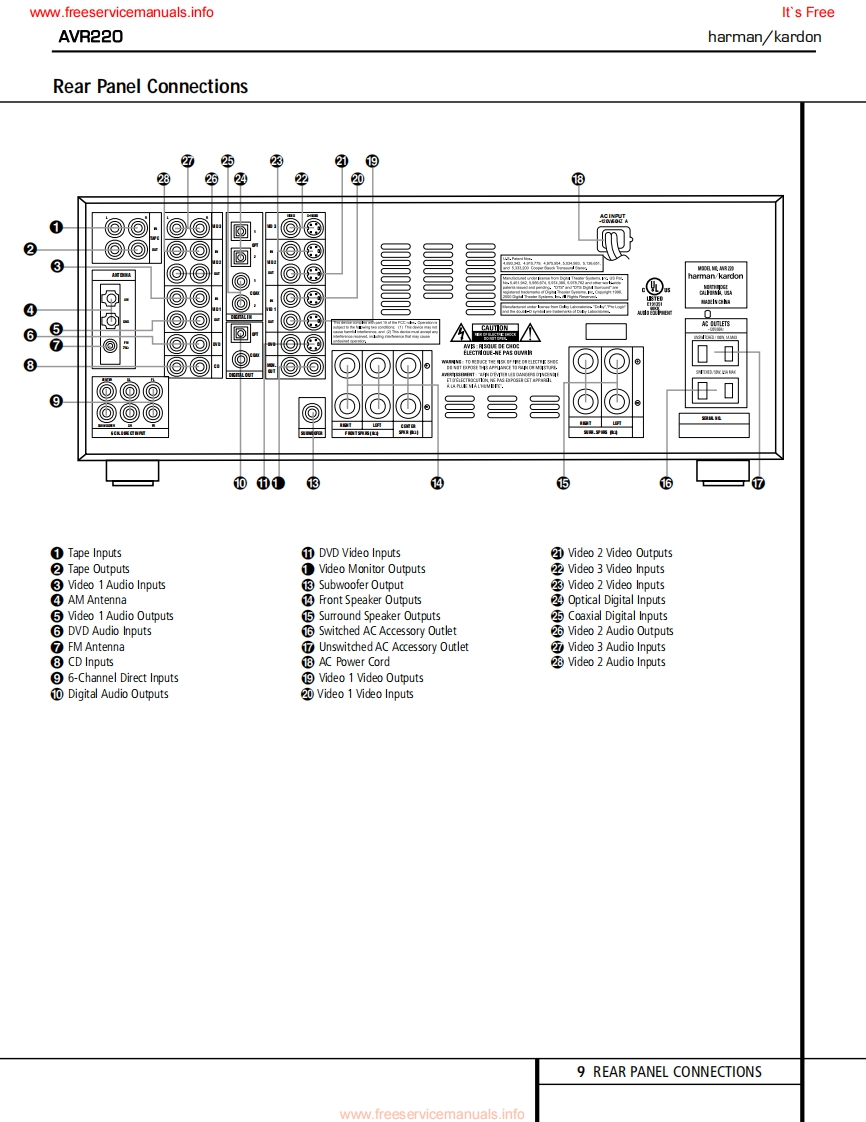

www.freeservicemanuals.infoIt's Freeharman/kardonAVR220AM DOLBY DIGITAL RECEIVERSERVICE MANUALharman/kardon AVR 220盥器Dr DoO(●CONTENTSESD WARNING...............2TECH TIP HKTT2003-01......................17LEAKAGE TESTING......................3TECH TIP HKTT2004-03........18BASIC SPECIFICATIONS.................4EXPLODED VIEW....................22FRONT PANEL CONTROLS..................5EXPLODED VIEW PARTS LIST.............23FRONT PANEL DISPLAY.........BLOCK DIAGRAM.24REAR PANEL CONNECTIONS................9ELECTRICAL PARTS LIST....................25REMOTE CONTROL FUNCTIONS............11PCB DRAWINGS...............58TROUBLESHOOTING GUIDE...................14SEMICONDUCTOR PINOUTS...............61PROCESSOR RESET....................14SCHEMATICS................104BULLETIN HK2003-07.....................15PACKING.........122harman/kardon,Inc.250 Crossways Park Dr.Woodbury,New York 11797Rev36/2005www.freeservicemanuals.info
