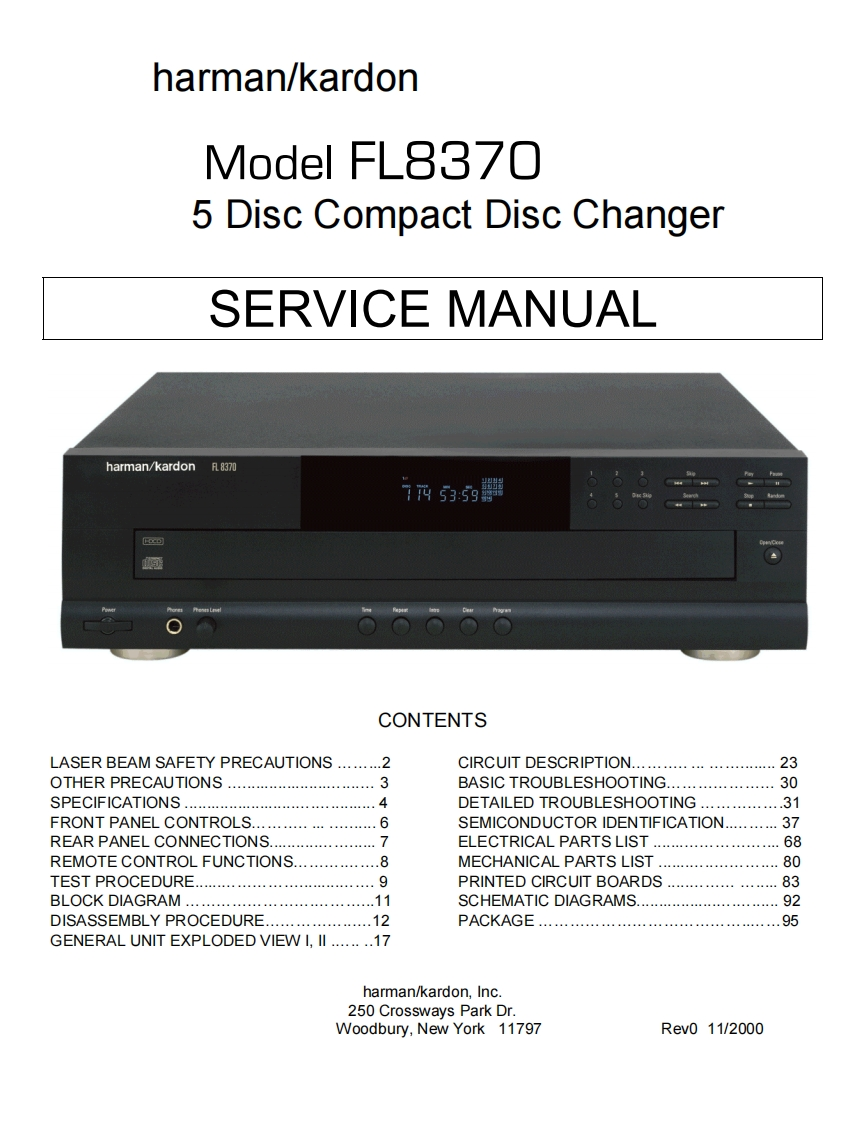

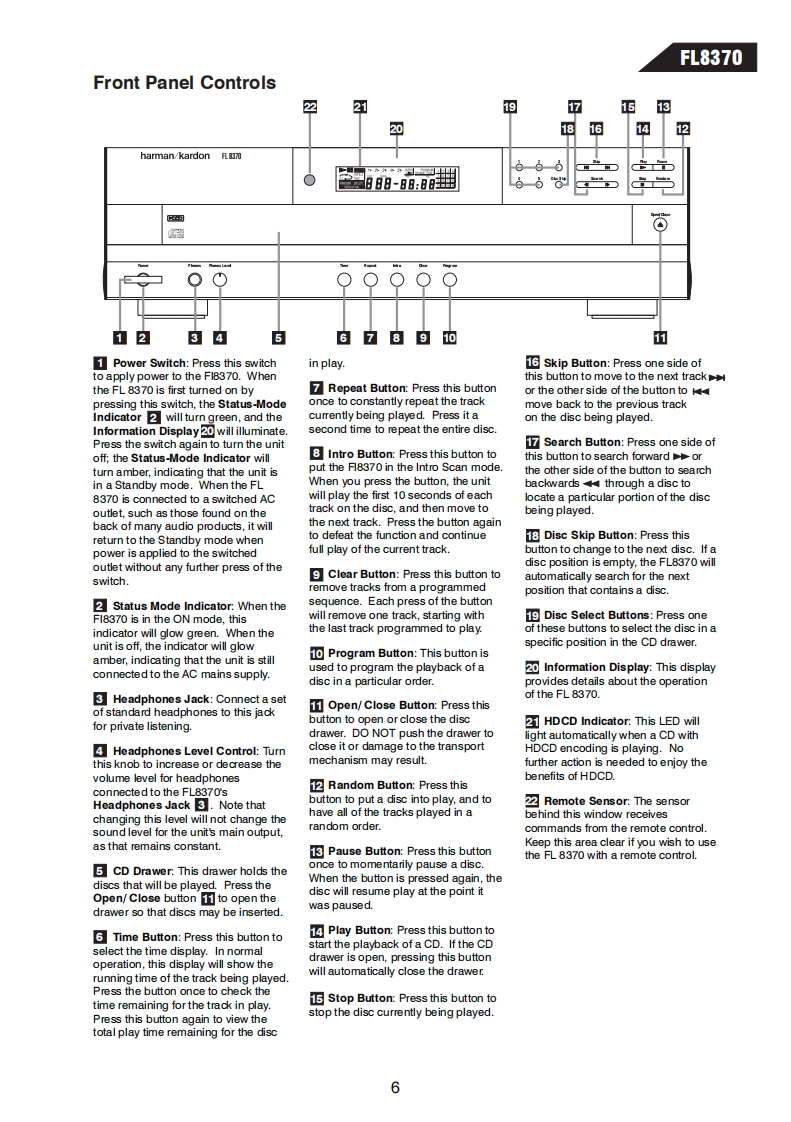

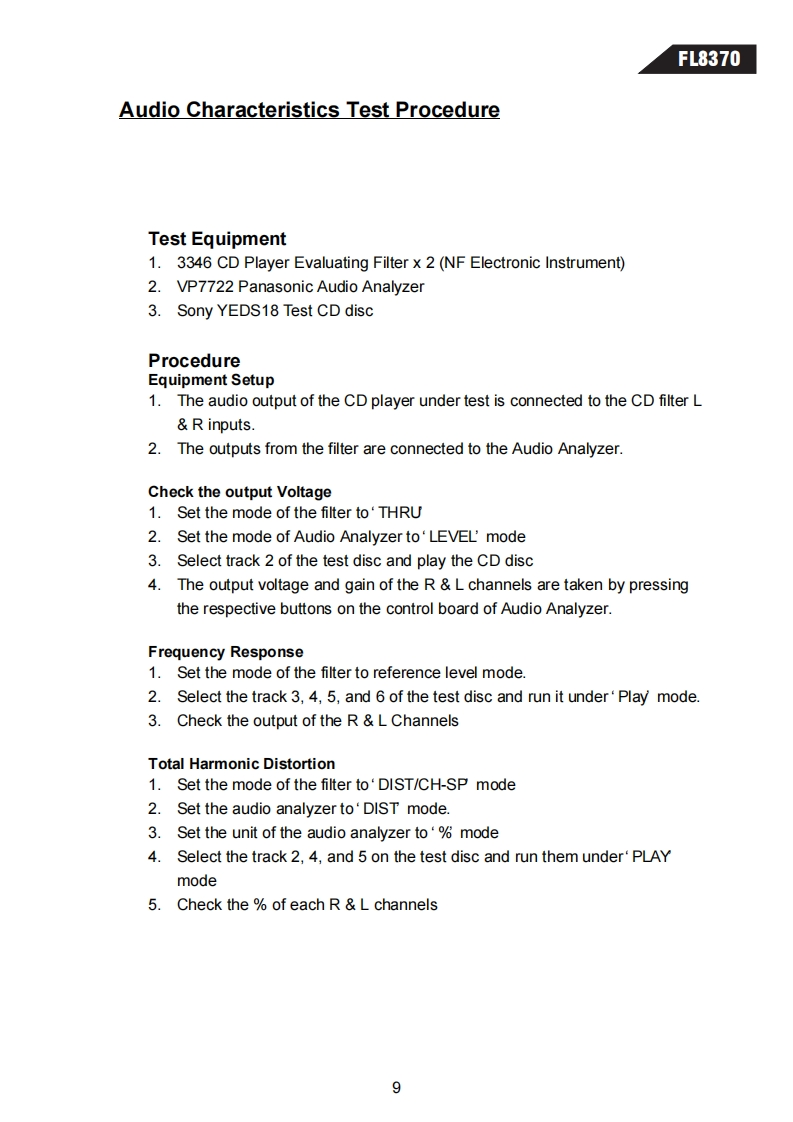

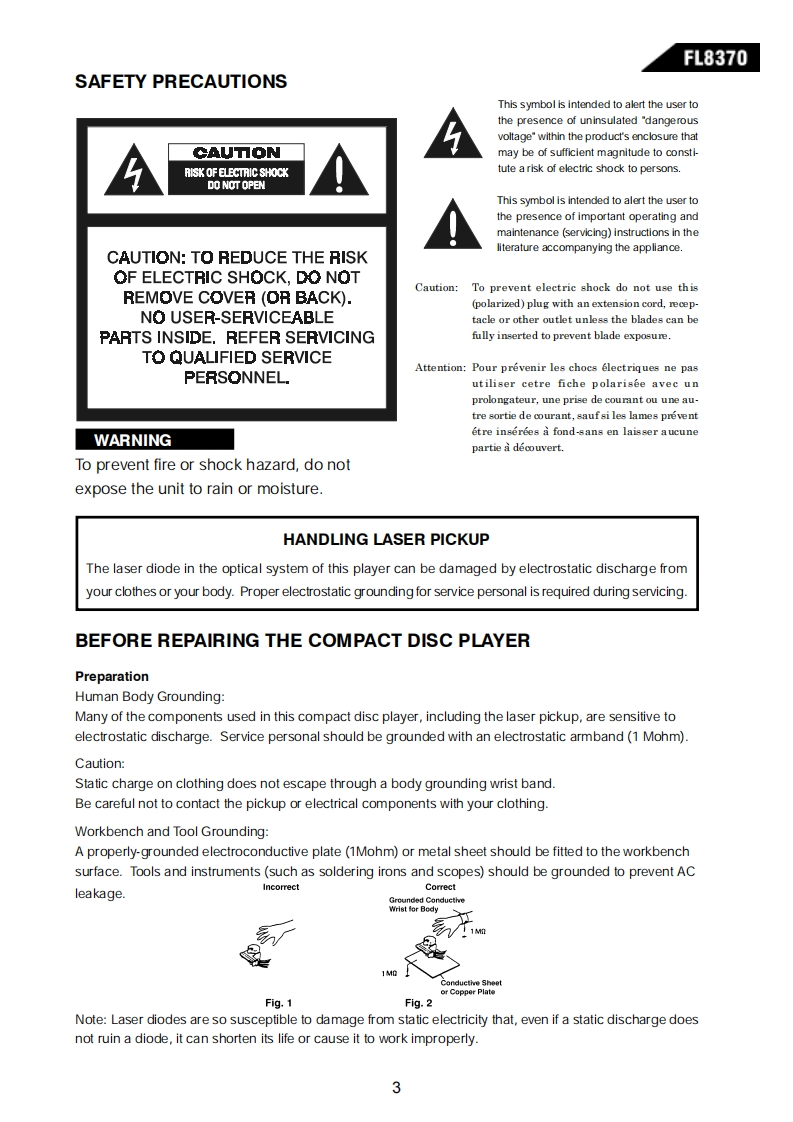

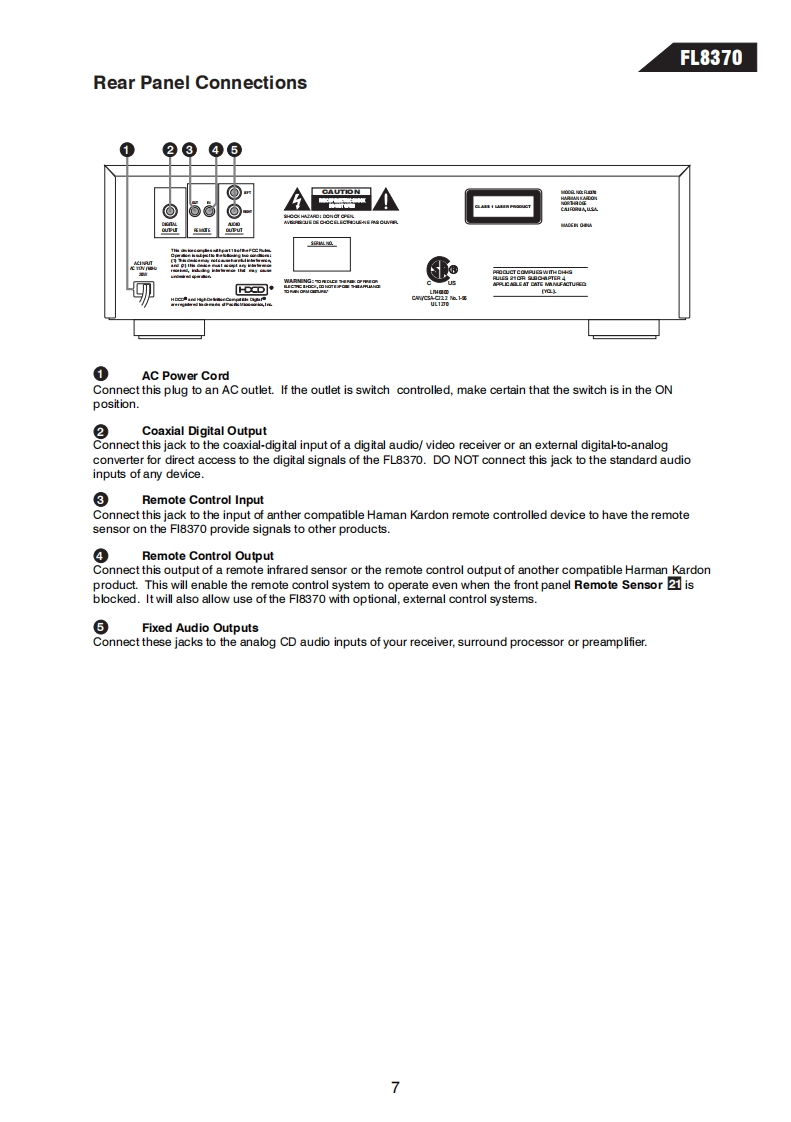

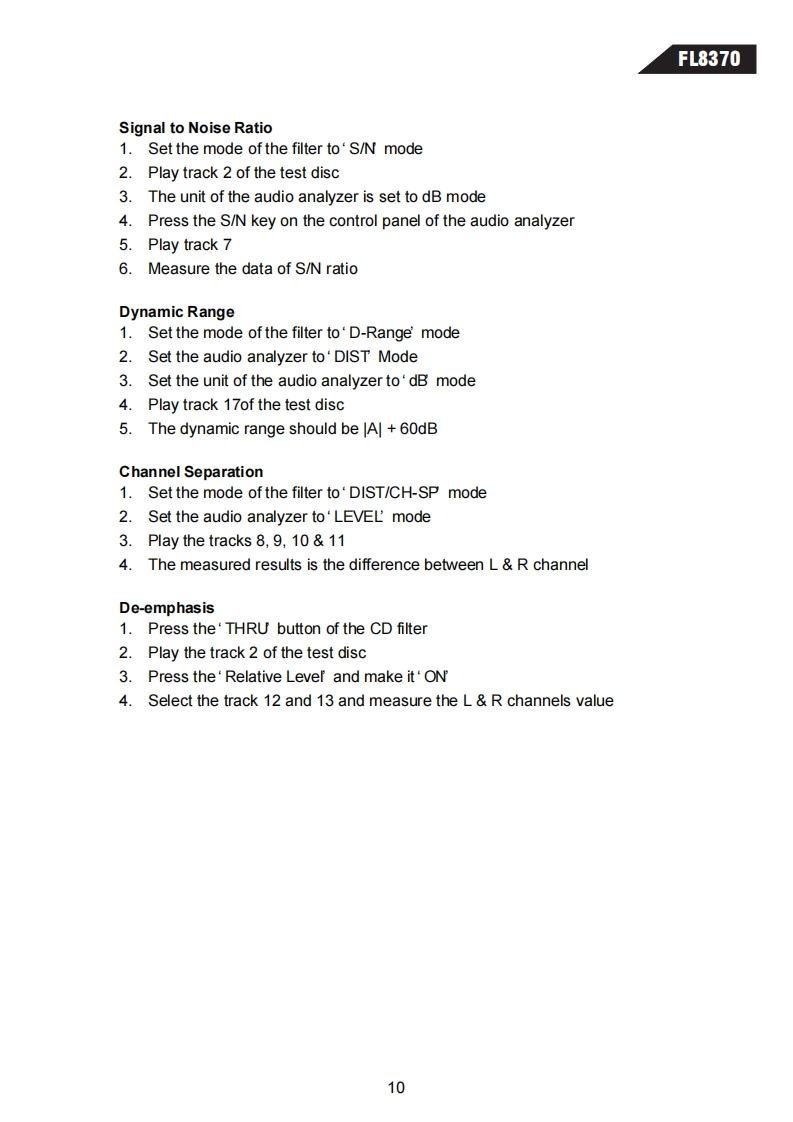

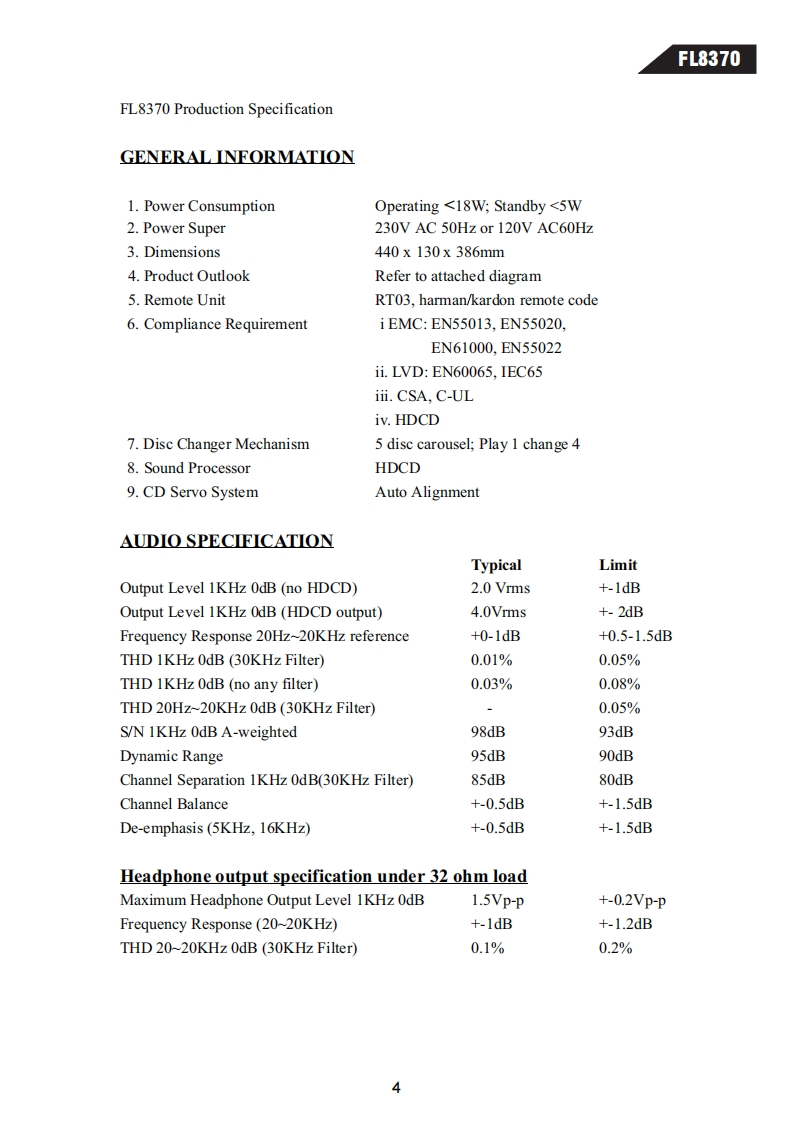

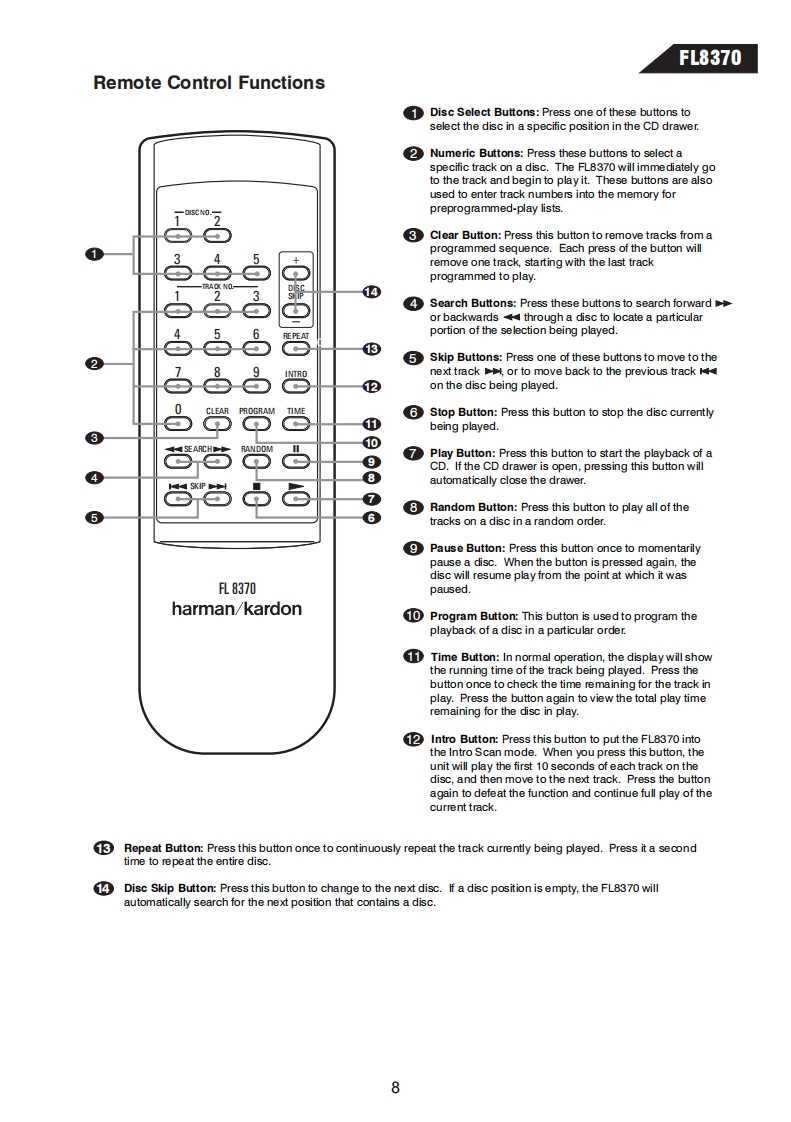

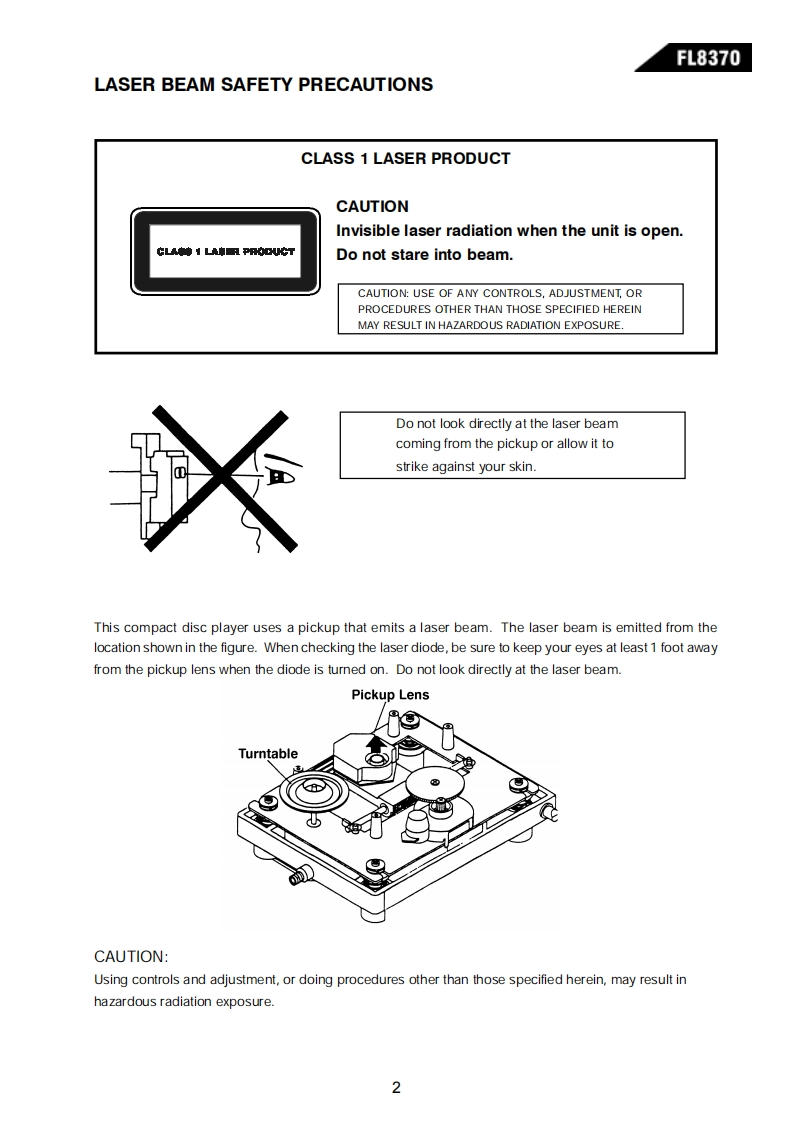

harman/kardonModel FL83705 Disc Compact Disc ChangerSERVICE MANUALharman/kardon F83707开角59攀CONTENTSLASER BEAM SAFETY PRECAUTIONS.........2CIRCUIT DESCRIPTION...................23OTHER PRECAUTIONS......................3BASIC TROUBLESHOOTING..................30SPECIFICATIONS...........4DETAILED TROUBLESHOOTING..............31FRONT PANEL CONTROLS..................6SEMICONDUCTOR IDENTIFICATION............37REAR PANEL CONNECTIONS.......7ELECTRICAL PARTS LIST ....................68REMOTE CONTROL FUNCTIONS..............8MECHANICAL PARTS LIST..................80TEST PROCEDURE.........................9PRINTED CIRCUIT BOARDS.................83BLOCK DIAGRAM........11SCHEMATIC DIAGRAMS......................92DISASSEMBLY PROCEDURE....................12PACKAGE.5GENERAL UNIT EXPLODED VIEW I,Il ........17harman/kardon,Inc.250 Crossways Park Dr.Woodbury,New York 11797Rev011/2000
