Akai-ACMX110-cs-维修说明书手册含电器原理图

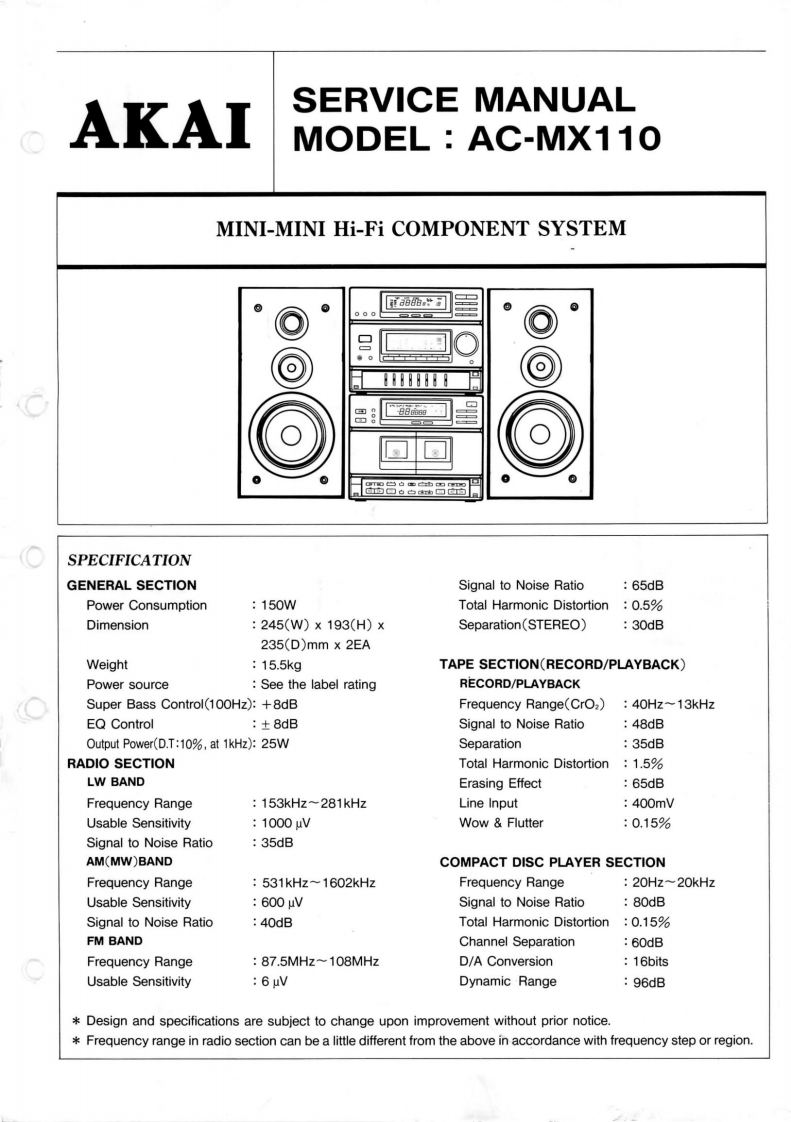

SERVICE MANUALAKAIMODEL:AC-MX110MINI-MINI Hi-Fi COMPONENT SYSTEMaBB”司oooSPECIFICATIONGENERAL SECTIONSignal to Noise Ratio:65dBPower Consumption:150WTotal Harmonic Distortion 0.5%Dimension:245(W)×193(H)×Separation(STEREO):30dB235(D)mm x 2EAWeight:15.5kgTAPE SECTION(RECORD/PLAYBACK)Power sourceSee the label ratingRECORD/PLAYBACKSuper Bass Control(100Hz):+8dBFrequency Range(CrO2):40Hz~13kHzEQ Control:±8dBSignal to Noise Ratio:48dBOutput Power(D.T:10%,at 1kHz):25WSeparation:35dBRADIO SECTIONTotal Harmonic Distortion 1.5%LW BANDErasing Effect:65dBFrequency Range153kHz~281kHzLine Input:400mVUsable Sensitivity:1000VWow Flutter:0.15%Signal to Noise Ratio:35dBAM(MW)BANDCOMPACT DISC PLAYER SECTIONFrequency Range:531kHz~1602kHzFrequency Range20Hz~20kHzUsable Sensitivity:600VSignal to Noise Ratio:80dBSignal to Noise Ratio:40dBTotal Harmonic Distortion 0.15%FM BANDChannel Separation:60dBFrequency Range:87.5MHz~108MHzD/A Conversion:16bitsUsable Sensitivity6uVDynamic Range:96dBDesign and specifications are subject to change upon improvement without prior notice.Frequency range in radio section can be a little different from the above in accordance with frequency step or region.
