Akai-APM313-tt-维修说明书手册含电器原理图

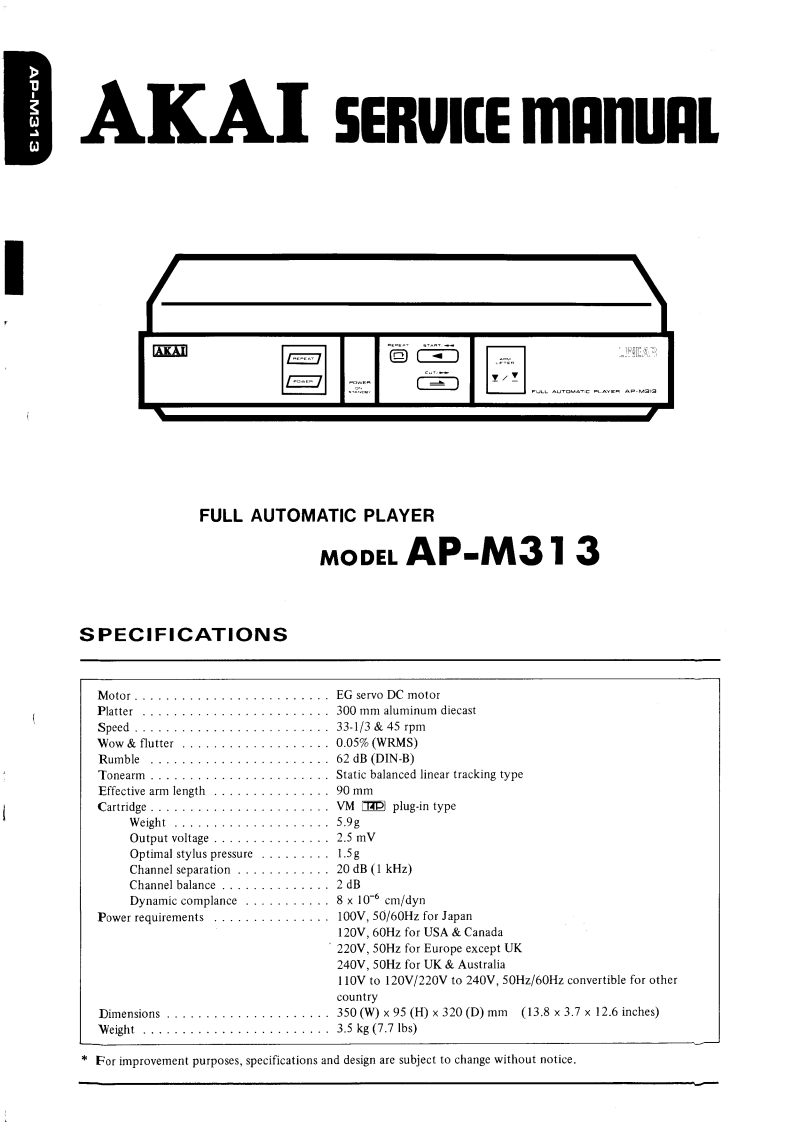

AP-M313AKAI SERVICE mANUALA团IPETE PLAYER AP-M3IFULL AUTOMATIC PLAYERMODEL AP-M31 3SPECIFICATIONSMotor...,EG servo DC motorPlatter300 mm aluminum diecastSpeed.,,,,,,,33.1/3&45rpmWow&flutter,,,,,,,,,,,··-0.05%(WRMS)Rumble62 dB (DIN-B)Statie balanced linear tracking typeEffective arm length90mmCartridge.................。。。VM D plug-in typeWeight.·5.9gOutput voltage,.,..·····2.5mVOptimal stylus pressure1.5gChannel separation..........20 dB (1 kHz)Channel balance,..·,,..···-2 dBDynamic complance8 x 10-6 cm/dynPower requirements100V,50/60Hz for Japan120V,60Hz for USA Canada220V,50Hz for Europe except UK240V.50Hz for UK Australia110V to 120V/220V to 240V,50Hz/60Hz convertible for othercountryDimensions,.。,,,··,,,,·,,,·····350(w)×95(HD×320(D)mm(13.8×3.7×12.6 inches)Weight.,,,,,.,··········3.5kg(7.71bs)For improvement purposes,specifications and design are subject to change without notice.
