Akai-APM719-tt-维修说明书手册含电器原理图

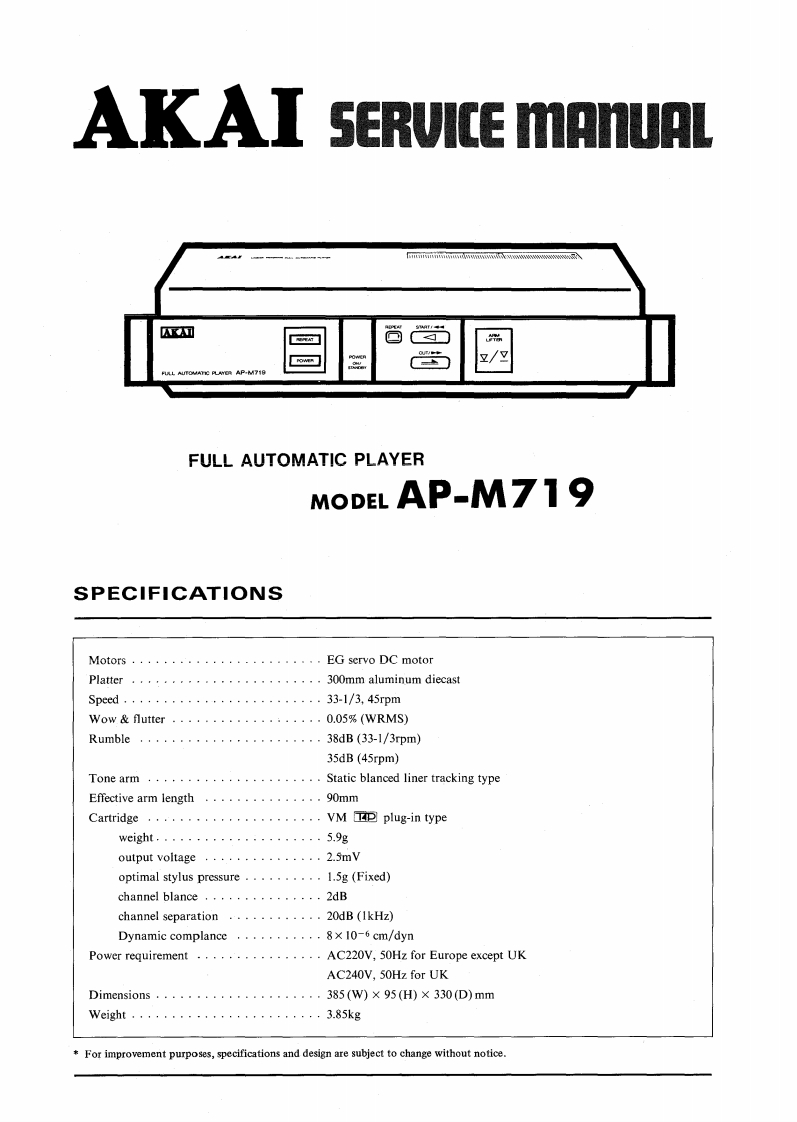

AKAI SERVICE MAnUALm PLAYOR AP-M718FULL AUTOMATIC PLAYERMODEL AP-M719SPECIFICATIONSMotorsEG servo DC motorPlatter,,:。,,,:,,,。,,,,,300mm aluminum diecastSpeed,..,..33-1/3,45rpmwow&flutter...·...·.....:··...0.05%(WRMS)Rumble.......,........38dB(33-1/3pm)35dB(45rpm)Tone arm......................Static blanced liner tracking typeEffective arm length。。。.。。.........90mmCartridge,,。,.,,.,,,,..,,,,.,,,VM TP plug-in typeweight.···59goutput voltage..2.5mVoptimal stylus pressure...······I.5g(Fixed)channel blance ..............2dBchannel separation............20dB (1kHz)Dynamic complance,···..8×I0-6cm/dynPower requirementAC220V,50Hz for Europe except UKAC240V.50Hz for UKDimensions..............385(W)×95(H)×330(D)mmWeight.,3.85kgFor improvement purposes,specifications and design are subject to change without notice.
