Akai-ATM400-tun-电气原理图手册

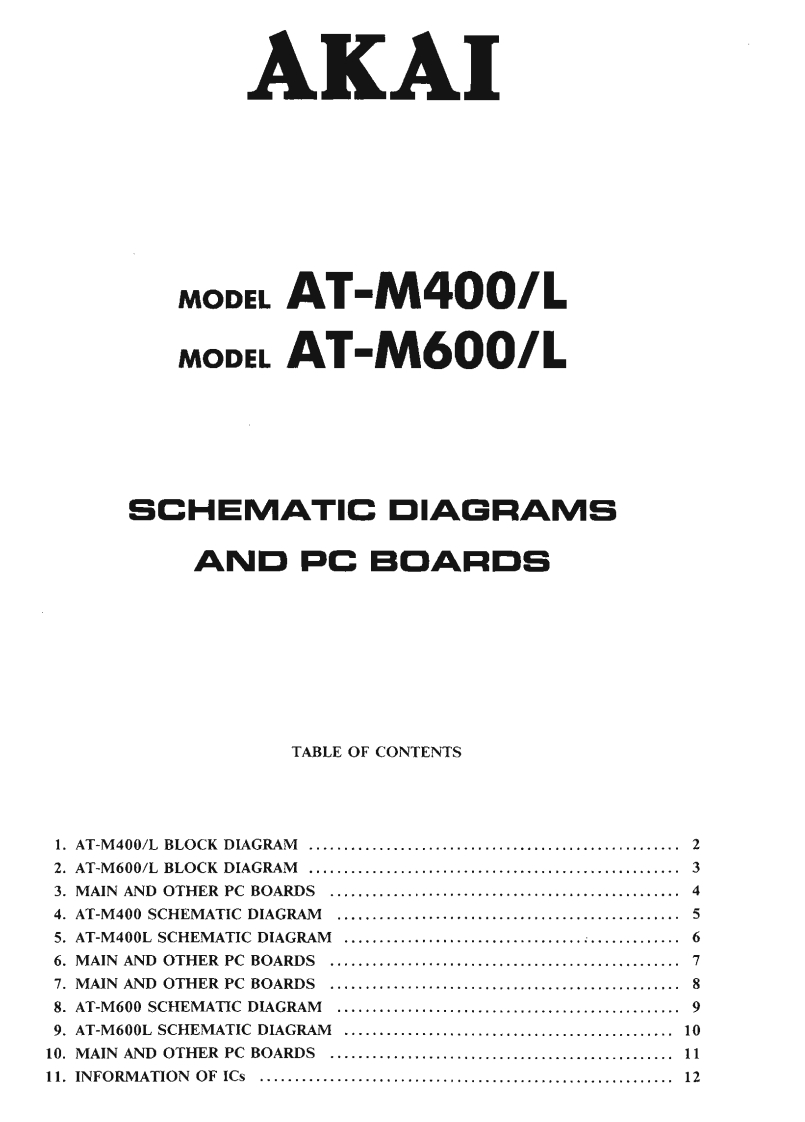

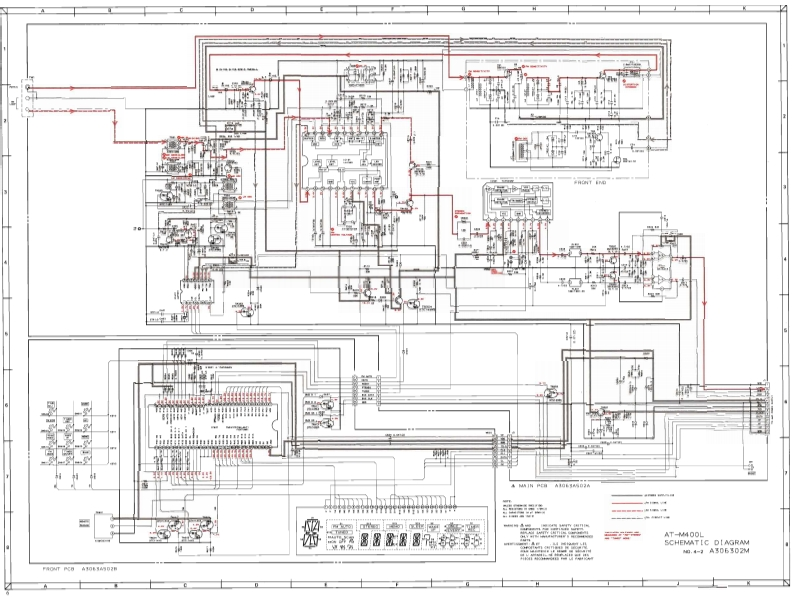

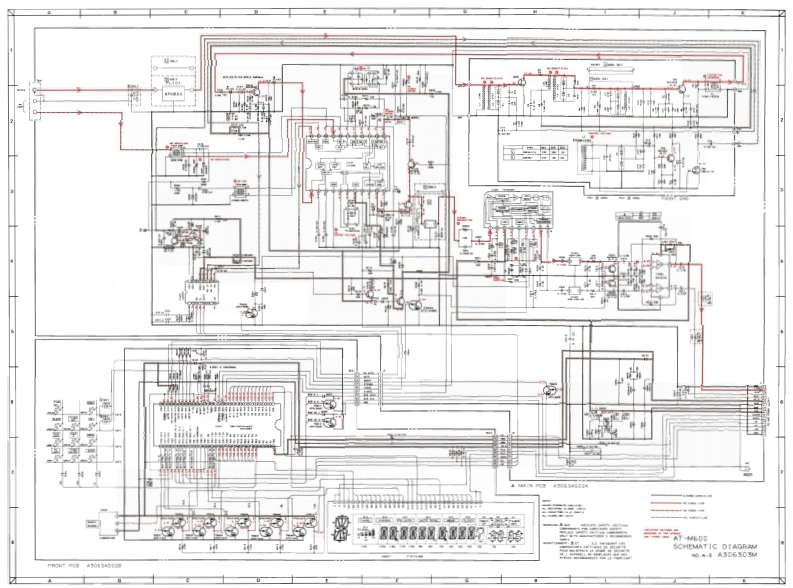

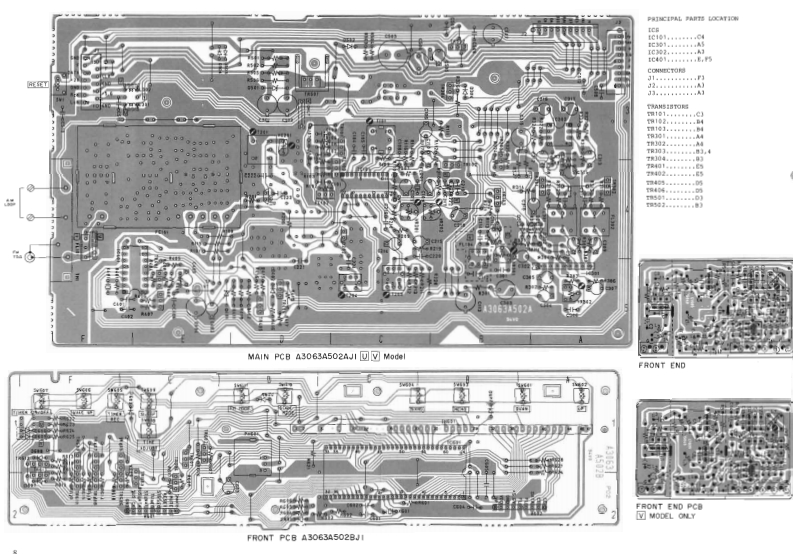

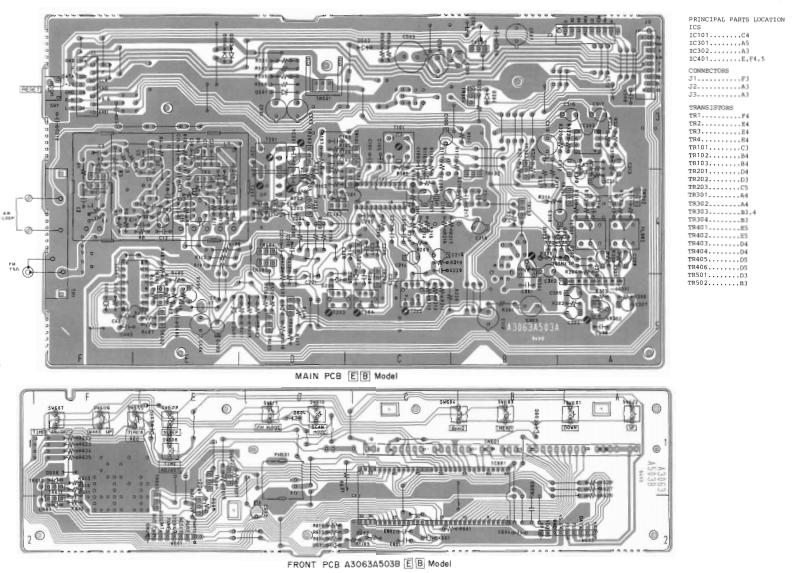

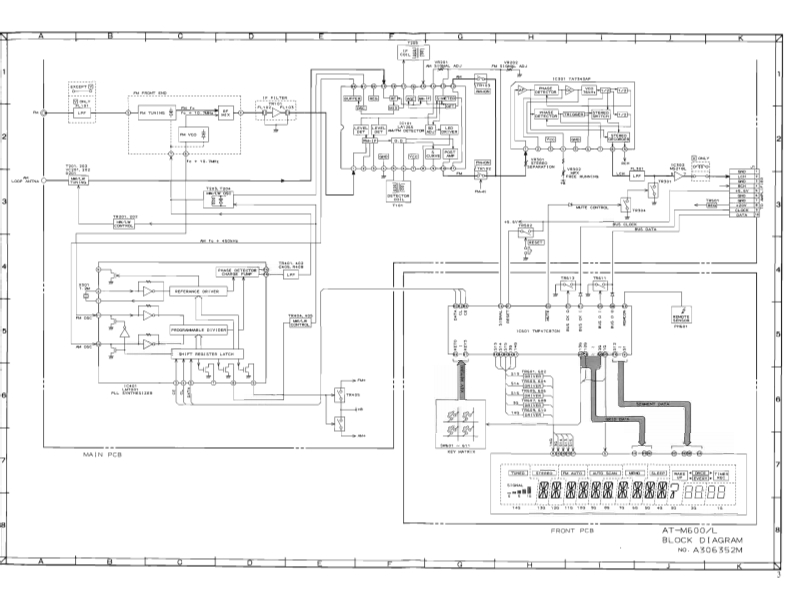

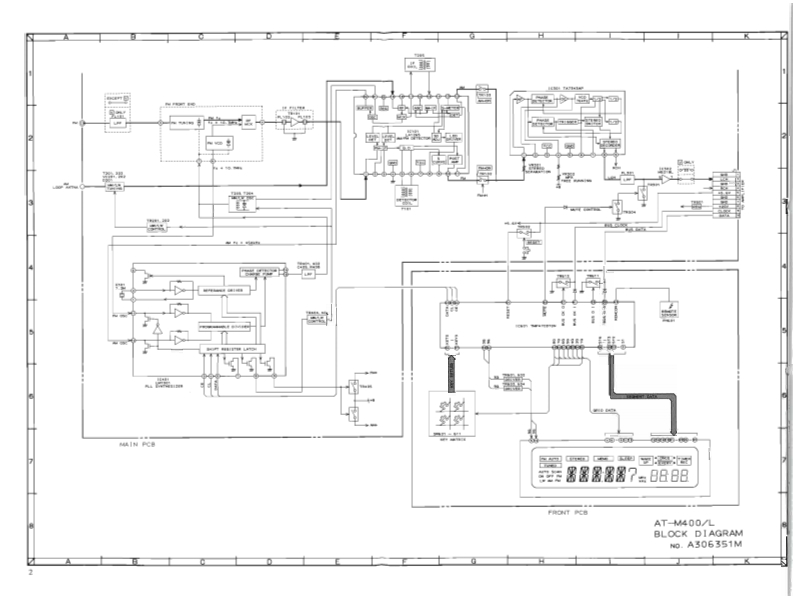

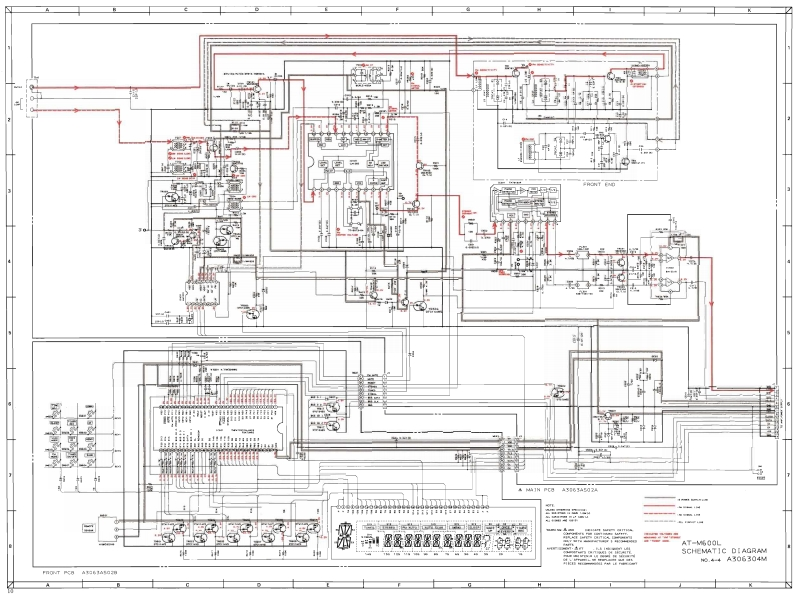

AKAIMODEL AT-M400/LMODEL AT-M600/LSCHEMATIC▣IAGRAMSAND PC BOARDSTABLE OF CONTENTS1.AT-M400/L BLOCK DIAGRAM.....................................................22.AT-M600/LBLOCK DIAGRAM.....................................................33.MAIN AND OTHER PC BOARDS .................................................44.AT-M400 SCHEMATIC DIAGRAM。。。，,。。。。。。。。。。。。。。。。。。。。。。。。。。。。。S5.AT-M400L SCHEMATIC DIAGRAM.........................66.MAIN AND OTHER PC BOARDS77.MAIN AND OTHER PC BOARDS .........................88.AT-M600 SCHEMATIC DIAGRAM..............99.AT-M600L SCHEMATIC DIAGRAM........1010.MAIN AND OTHER PC BOARDS ............1111.INFORMATION OF ICs..................................12
