Midland-Alan_95-_DE_使用说明书手册

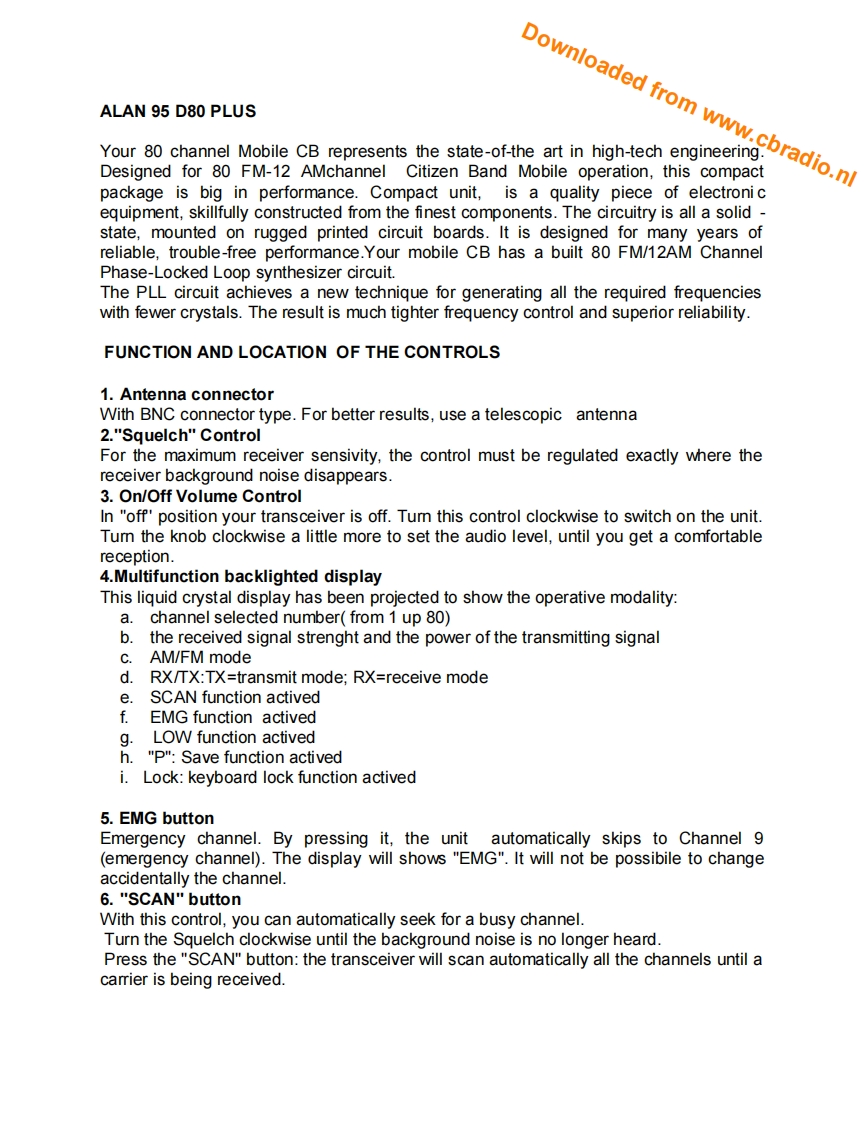

ALAN 95 D80 PLUSDownloaded from www.cbradio.nlYour 80 channel Mobile CB represents the state-of-the art in high-tech engineering.Designed for 80 FM-12 AMchannel Citizen Band Mobile operation,this compactpackage is big in performance.Compact unit,is a quality piece of electroni cequipment,skillfully constructed from the finest components.The circuitry is all a solidstate,mounted on rugged printed circuit boards.It is designed for many years ofreliable,trouble-free performance.Your mobile CB has a built 80 FM/12AM ChannelPhase-Locked Loop synthesizer circuit.The PLL circuit achieves a new technique for generating all the required frequencieswith fewer crystals.The result is much tighter frequency control and superior reliability.FUNCTION AND LOCATION OF THE CONTROLS1.Antenna connectorWith BNC connector type.For better results,use a telescopic antenna2."Squelch"ControlFor the maximum receiver sensivity,the control must be regulated exactly where thereceiver background noise disappears.3.On/Off Volume ControlIn "off'position your transceiver is off.Tum this control clockwise to switch on the unit.Tum the knob clockwise a little more to set the audio level,until you get a comfortablereception.4.Multifunction backlighted displayThis liquid crystal display has been projected to show the operative modality:a.channel selected number(from 1 up 80)b.the received signal strenght and the power of the transmitting signalc.AM/FM moded.RX/TX:TX=transmit mode;RX=receive modee.SCAN function activedfEMG function activedg.LOW function activedh."P":Save function activedi.Lock:keyboard lock function actived5.EMG buttonEmergency channel.By pressing it,the unit automatically skips to Channel 9(emergency channel).The display will shows "EMG".It will not be possibile to changeaccidentally the channel.6."SCAN"buttonWith this control,you can automatically seek for a busy channel.Turn the Squelch clockwise until the background noise is no longer heard.Press the "SCAN"button:the transceiver will scan automatically all the channels until acamrier is being received.
