Akai-GXF31-tape-电气原理图手册

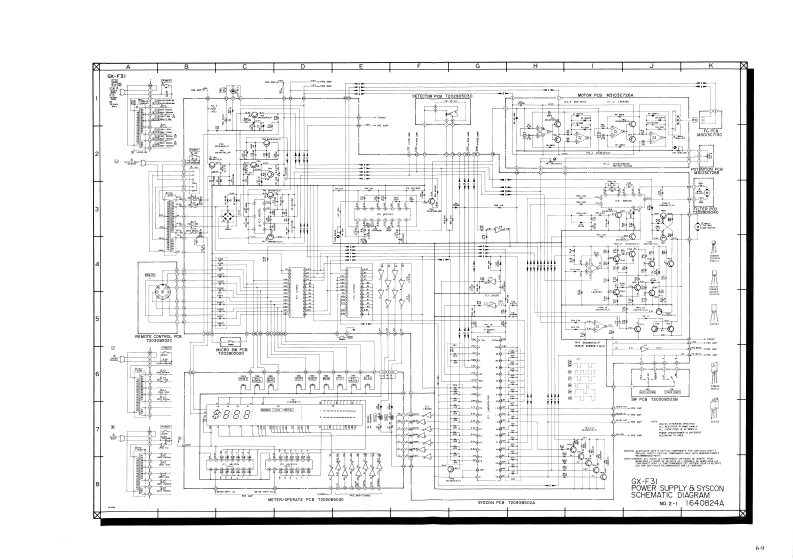

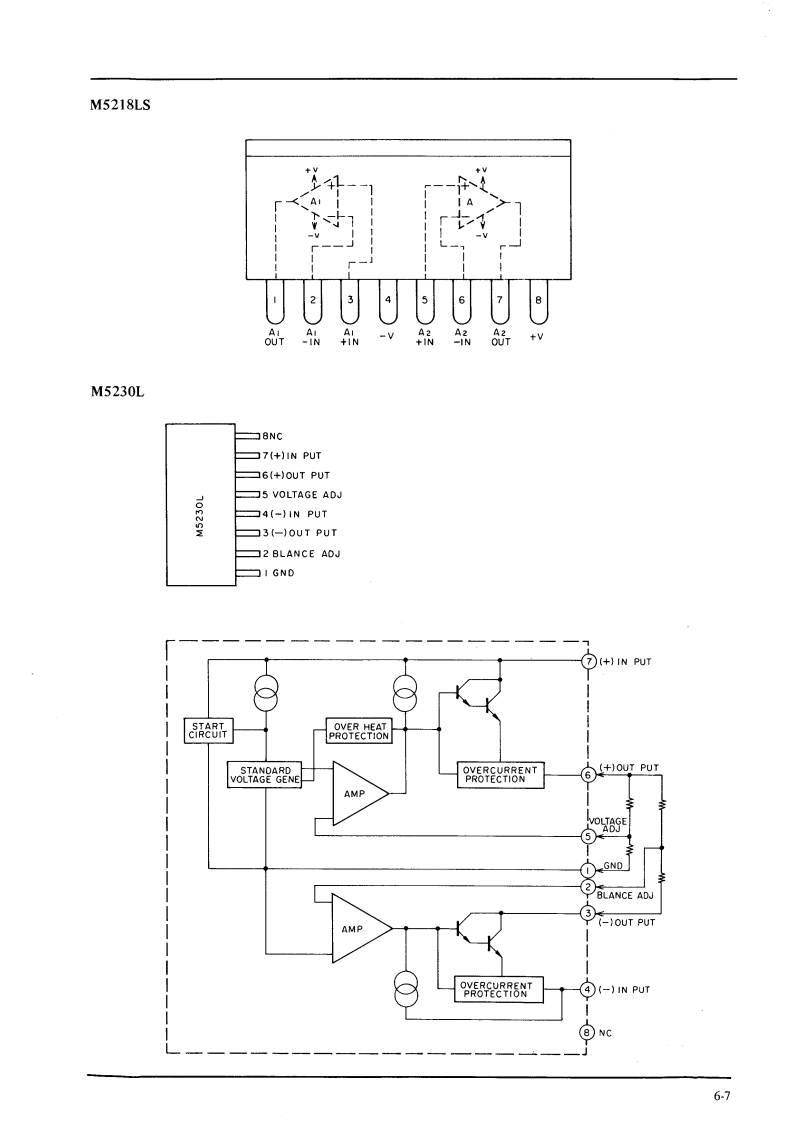

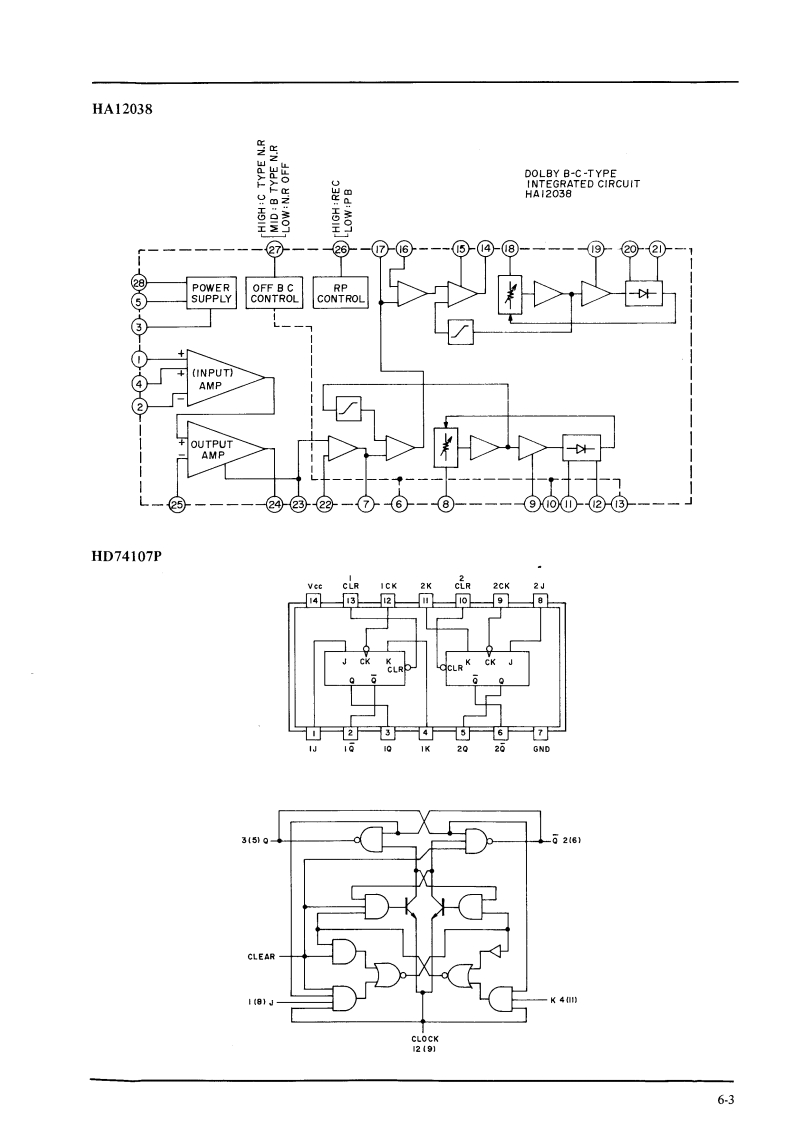

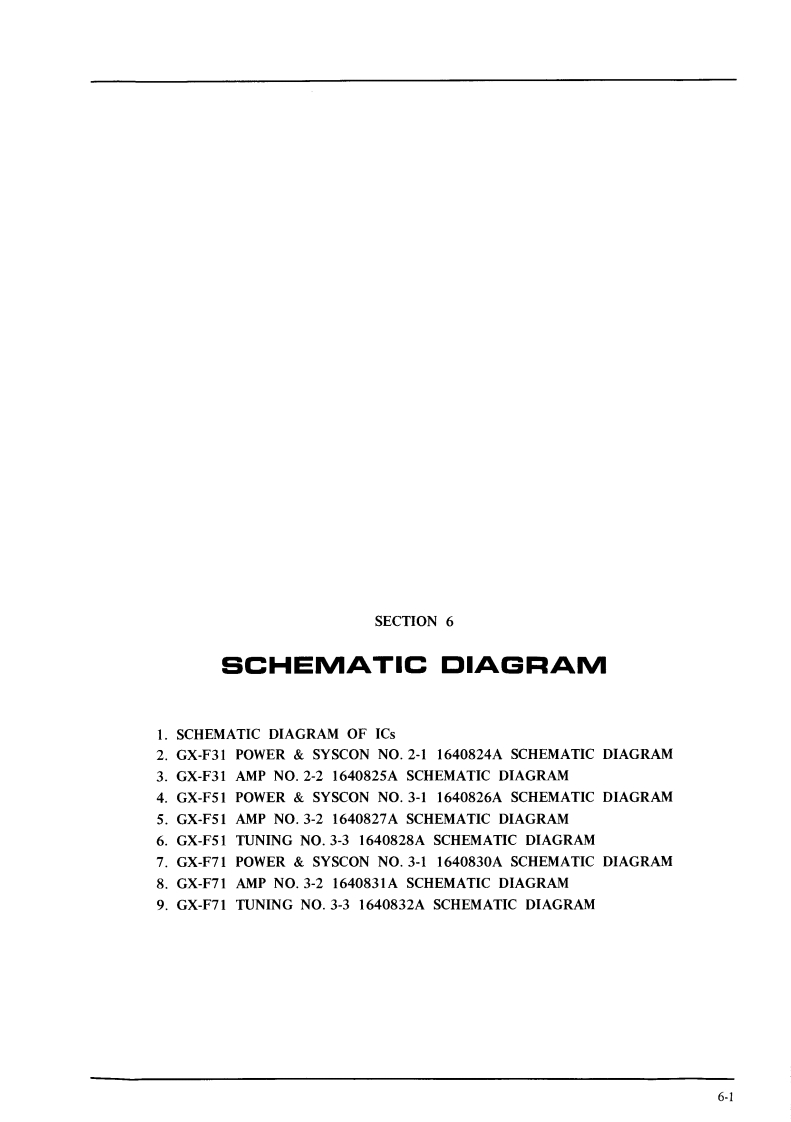

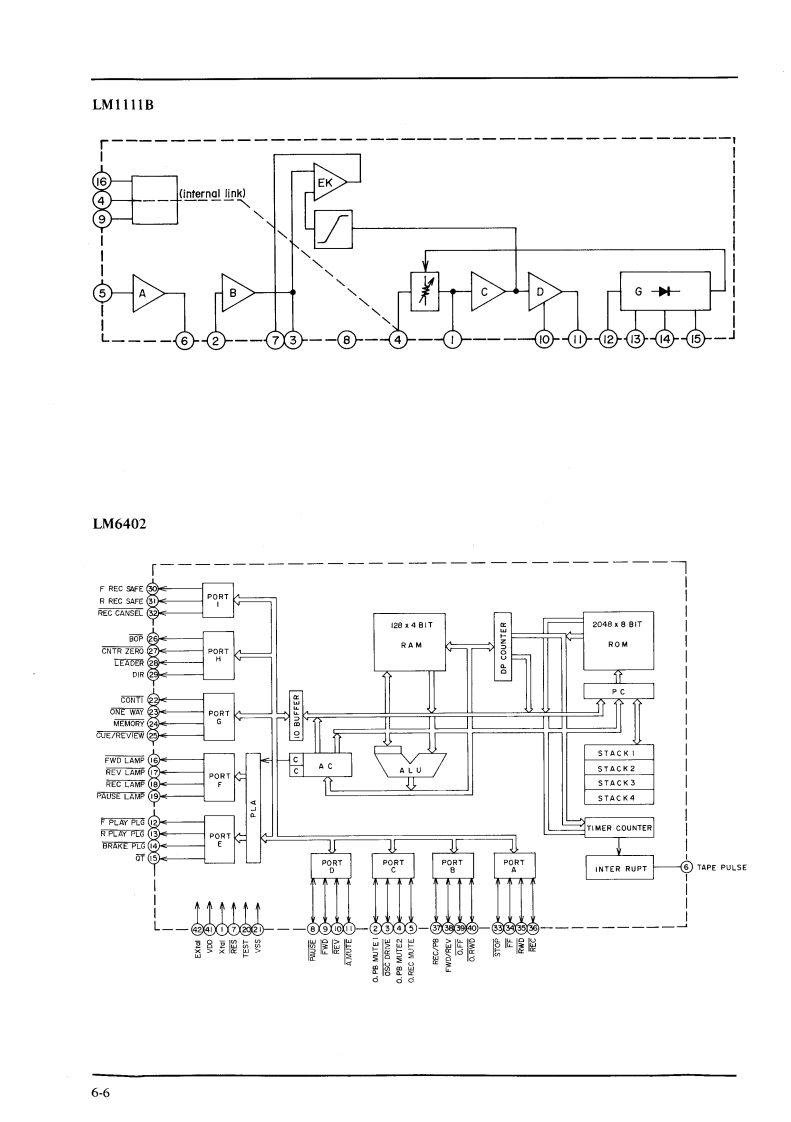

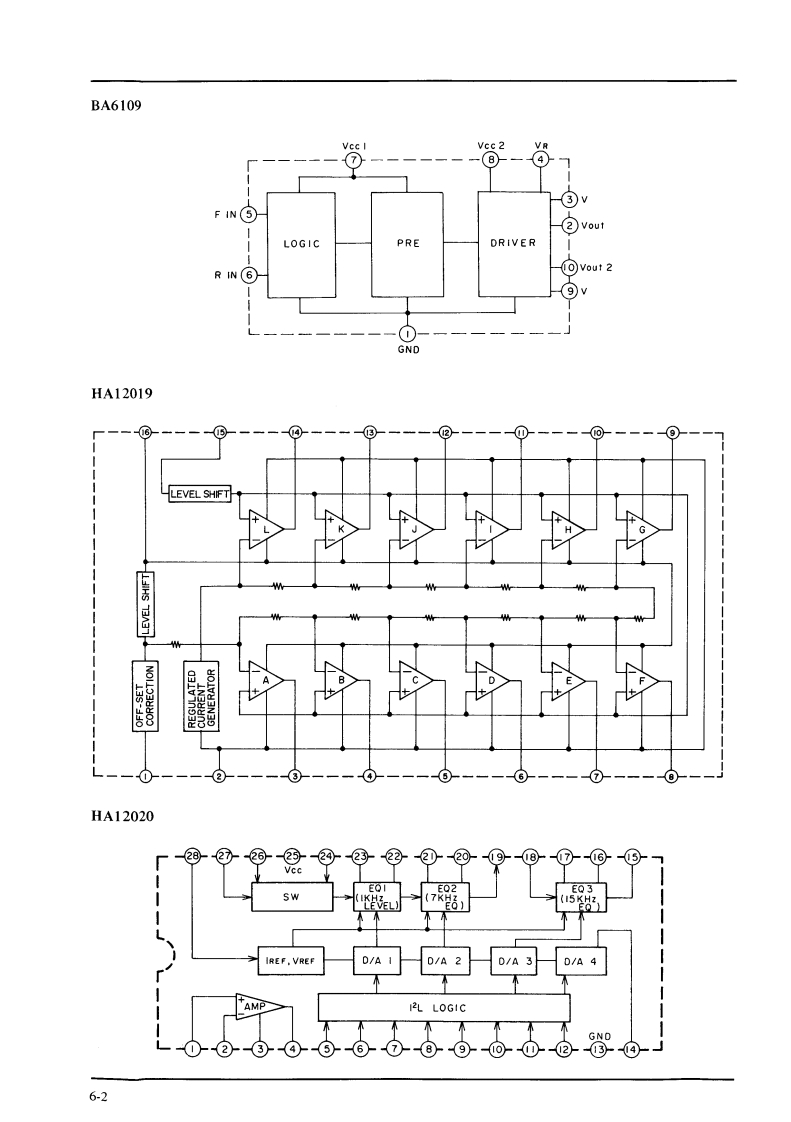

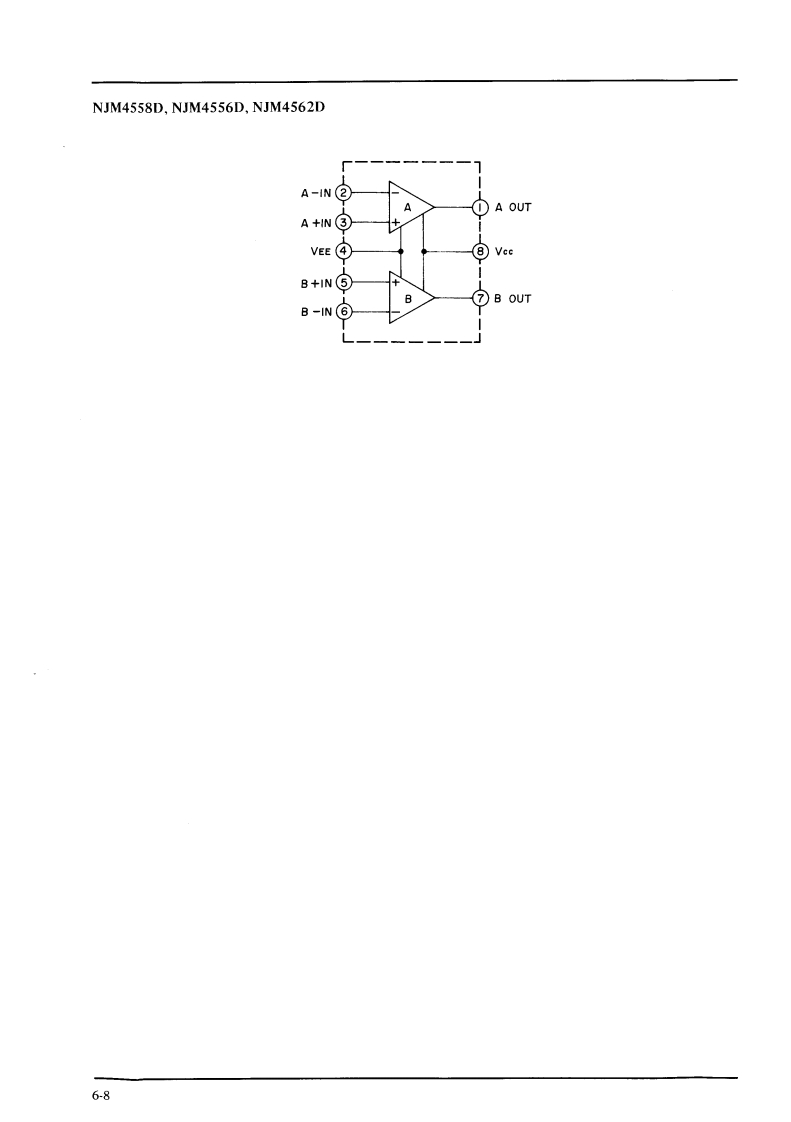

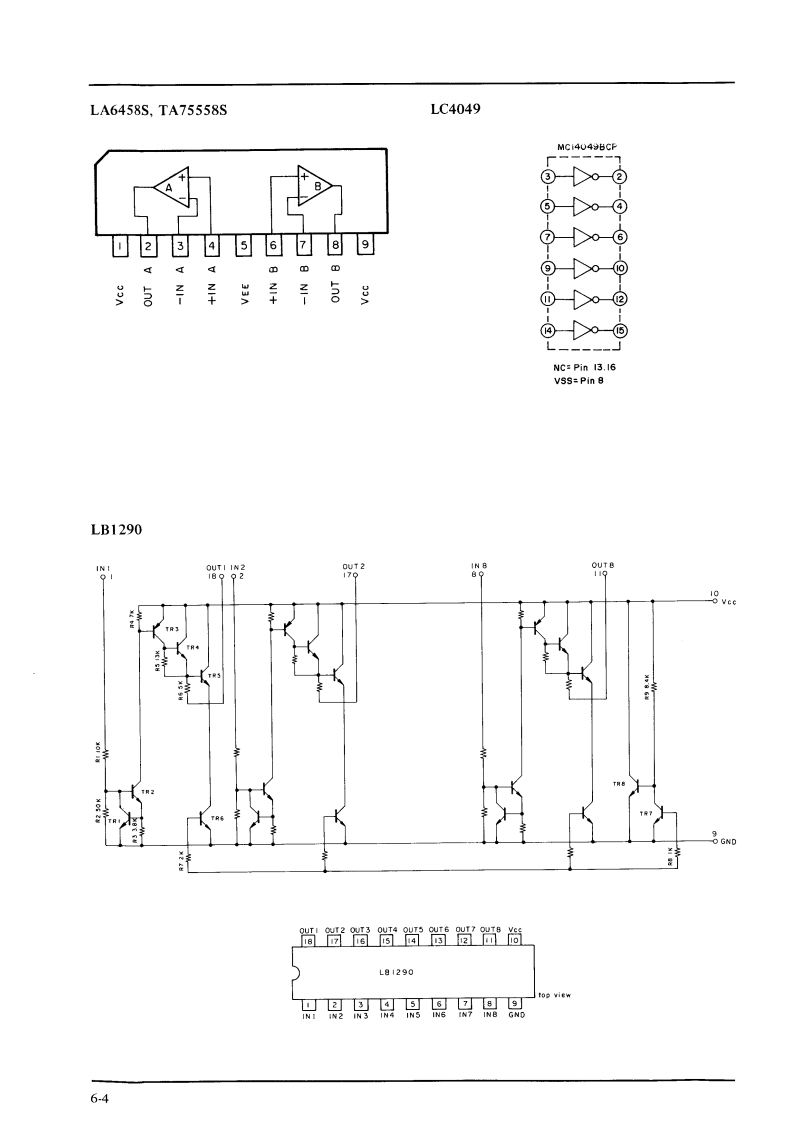

SECTION 6SCHEMATIC DIAGRAM1.SCHEMATIC DIAGRAM OF ICs2.GX-F31 POWER SYSCON NO.2-1 1640824A SCHEMATIC DIAGRAM3.GX-F31 AMP NO.2-2 1640825A SCHEMATIC DIAGRAM4.GX-F51 POWER SYSCON NO.3-1 1640826A SCHEMATIC DIAGRAM5.GX-F51 AMP NO.3-2 1640827A SCHEMATIC DIAGRAM6.GX-F51 TUNING NO.3-3 1640828A SCHEMATIC DIAGRAM7.GX-F71 POWER SYSCON NO.3-1 1640830A SCHEMATIC DIAGRAM8.GX-F71 AMP NO.3-2 1640831A SCHEMATIC DIAGRAM9.GX-F71 TUNING NO.3-3 1640832A SCHEMATIC DIAGRAM6-1
