Akai-MX550-cs-电气原理图手册

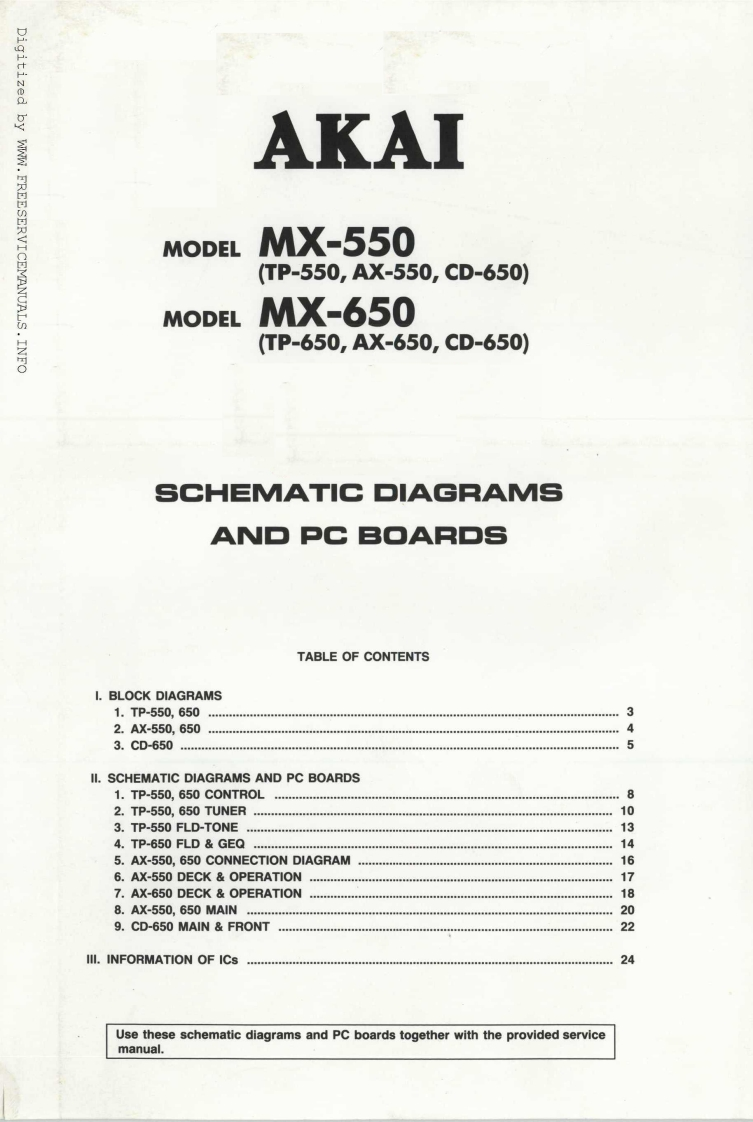

DigitizedAKAIWWW.FREESERVICEMANUALS.INFOMODELMX-550(TP-550,AX-550,CD-650)MODELMX-650(TP-650,AX-650,CD-650)SCHEMATIC DIAGRAMSAND PC BOARDSTABLE OF CONTENTSI.BLOCK DIAGRAMS1.TP-550,65032.AX-550,65043.CD-6505II.SCHEMATIC DIAGRAMS AND PC BOARDS1.TP-550,650C0NTR0L....82.TP-550,650 TUNER.......103.TP-550 FLD-TONE .....134.TP-650 FLD GEQ145.AX-550,650 CONNECTION DIAGRAM166.AX-550 DECK OPERATION177.AX-650 DECK OPERATION188.AX-550,650MAIN209.CD-650 MAIN FRONT ...22IlI.INFORMATION OF ICs24Use these schematic diagrams and PC boards together with the provided servicemanual.
