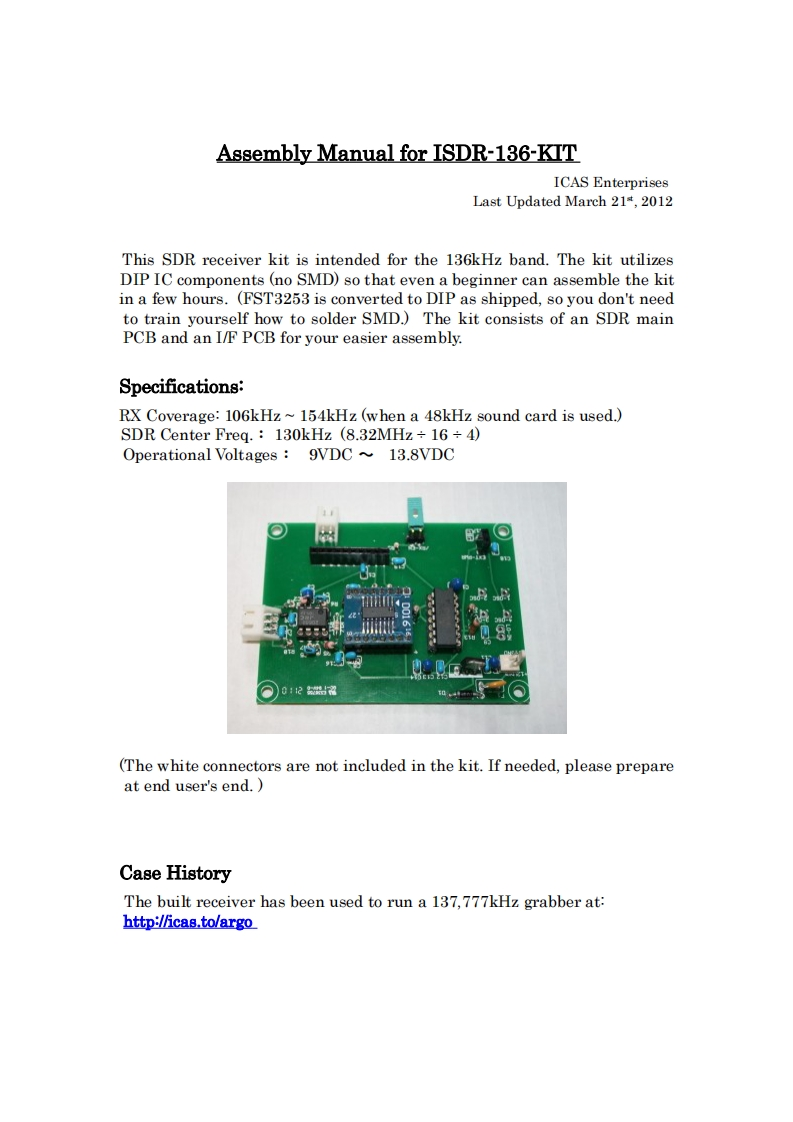

Assembly Manual for ISDR-136-KITICAS EnterprisesLast Updated March 21*,2012This SDR receiver kit is intended for the 136kHz band.The kit utilizesDIP IC components (no SMD)so that even a beginner can assemble the kitin a few hours.(FST3253 is converted to DIP as shipped,so you don't needto train yourself how to solder SMD.)The kit consists of an SDR mainPCB and an I/F PCB for your easier assembly.Specifications:RX Coverage:106kHz~154kHz (when a 48kHz sound card is used.)SDR Center Freq.:130kHz(8.32MHz÷16÷4)Operational Voltages 9VDC~13.8VDC(The white connectors are not included in the kit.If needed,please prepareat end user's end.Case HistoryThe built receiver has been used to run a 137,777kHz grabber at:http://icas.to/argo
