陕汽重卡Shacman-X5000-Central-electrical-device-board-CPD

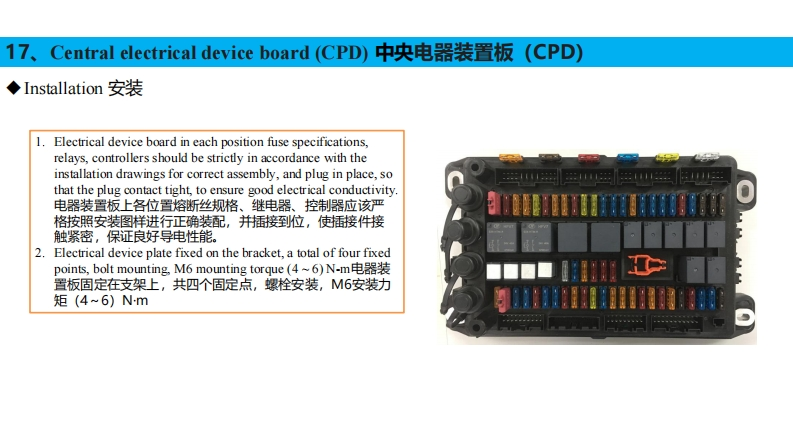

17、Central electrical device board(CPD)中央电器装置板(CPD)◆Installation安装1.Electrical device board in each position fuse specifications,relays,controllers should be strictly in accordance with theinstallation drawings for correct assembly,and plug in place,sothat the plug contact tight,to ensure good electrical conductivity电器装置板上各位置熔断丝规格、继电器、控制器应该严格按照安装图样进行正确装配，并插接到位，使插接件接触紧密，保证良好导电性能。2.Electrical device plate fixed on the bracket,a total of four fixedpoints,bolt mounting,M6 mounting torque(4~6)N-m电器装置板固定在支架上，共四个固定点，螺栓安装，M6安装力矩(4~6)Nm
