陕汽重卡Shacman-X5000-dashboard

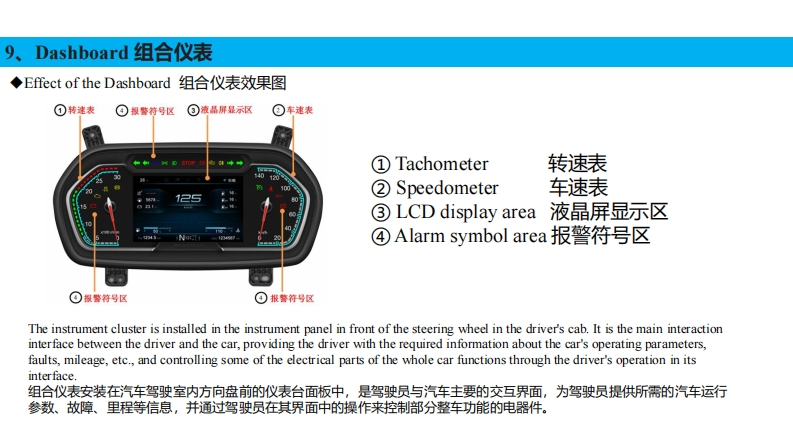

9、Dashboard组合仪表◆Effect of the Dashboard组合仪表效果图①转速表①报警符号区⊙液品屏显示区⊙车速表①Tachometer转速表4010②Speedometer车速表③LCD display area液晶屏显示区N④Alarm symbol area报警符号区⊙报警符号区国报警符号区The instrument cluster is installed in the instrument panel in front of the steering wheel in the driver's cab.It is the main interactioninterface between the driver and the car,providing the driver with the required information about the car's operating parameters,faults,mileage,etc.,and controlling some of the electrical parts of the whole car functions through the driver's operation in itsinter face.组合仪表安装在汽车驾驶室内方向盘前的仪表台面板中，是驾驶员与汽车主要的交互界面，为驾驶员提供所需的汽车运行参数、故障、里程等信息，并通过驾驶员在其界面中的操作来控制部分整车功能的电器件。
