陕汽重卡Shacman-X5000-environmental-monitoring-system

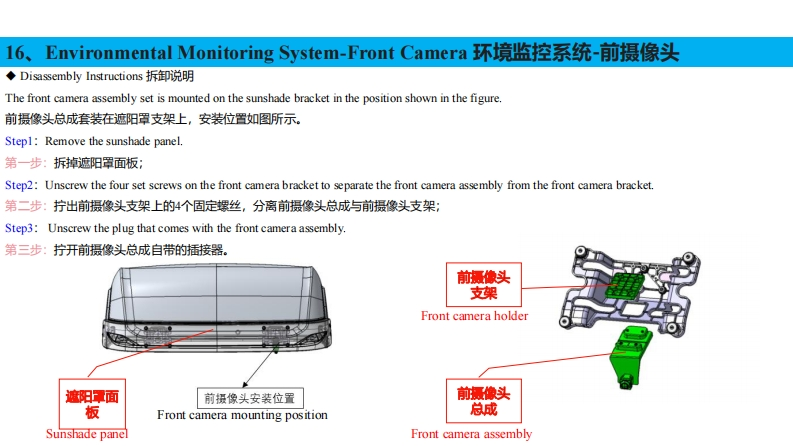

16、Environmental Monitoring System-Front Camera环境监控系统-前摄像头◆Disassembly Instructions拆卸说明The front camera assembly set is mounted on the sunshade bracket in the position shown in the figure.前摄像头总成套装在遮阳罩支架上，安装位置如图所示。Stepl:Remove the sunshade panel.第一步：拆掉遮阳罩面板；Step2:Unscrew the four set screws on the front camera bracket to separate the front camera assembly from the front camera bracket.第二步：拧出前摄像头支架上的4个固定螺丝，分离前摄像头总成与前摄像头支架：Step3:Unscrew the plug that comes with the front camera assembly.第三步：拧开前摄像头总成自带的插接器。前摄像头支架Front camera holder遮阳面前摄像头安装位置前摄像头板Front camera mounting position总成Sunshade panelFront camera assembly
