陕汽重卡Shacman-X5000-steering-voice-prompter

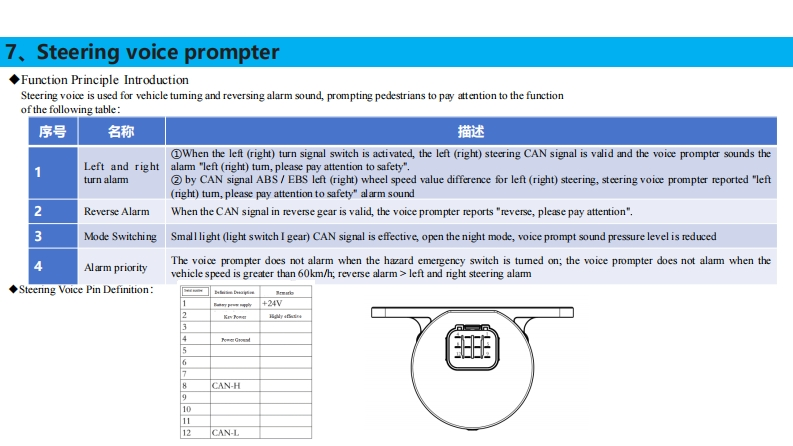

7.Steering voice prompterFunction Principle IntroductionSteering voice is used for vehicle tuming and reversing alarm sound,prompting pedestrians to pay attention to the functionof the following table:序号名称描述DWhen the left (right)turn signal switch is activated,the left (right)steering CAN signal is valid and the voice prompter sounds theLeft and rightalamm "left(right)tum,please pay attention to safety".turn alamm2 by CAN signal ABS EBS left (right)wheel speed value difference for left(right)steering,steering voice prompter reported "left(right)tum,please pay attention to safety"alarm sound2Reverse AlarmWhen the CAN signal in reverse gear is valid,the voice prompter reports "reverse,please pay attention".3Mode SwitchingSmall light (light switch I gear)CAN signal is effective,open the night mode,voice prompt sound pressure level is reduced4Alarm priorityThe voice prompter does not alarm when the hazard emergency switch is tumed on;the voice prompter does not alamm when thevehicle speed is greater than 60km/h;reverse alarm>left and right steering alamSteering Voice Pin Definition:Botisn Dvaaites事由Tw的+24V2KnF和福的435678CAN-H9101112CAN-L
