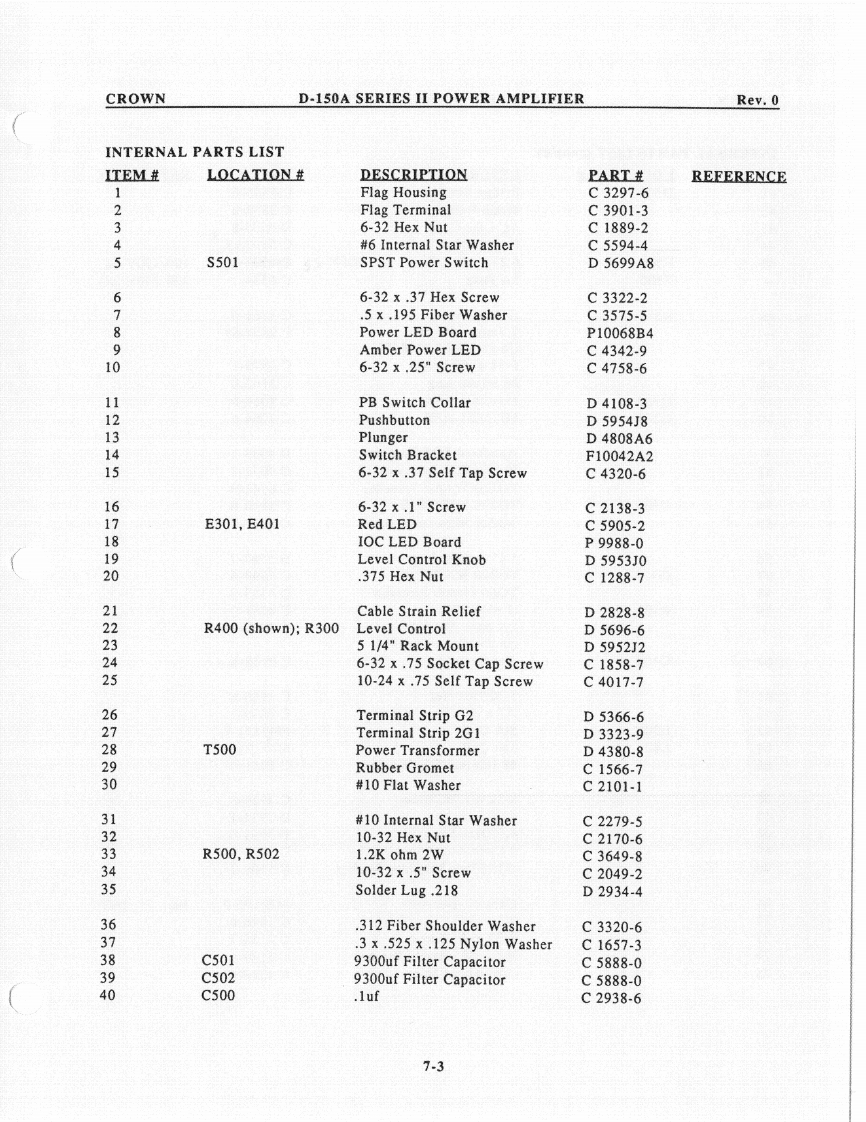

CROWND-150A SERIES II POWER AMPLIFIERRev.0INTERNAL PARTS LISTITEM进LOCATION#DESCRIPTIONPART#REFERENCEFlag HousingC3297-62Flag TerminalC3901-36-32 Hex NutC1889-2#6 Internal Star WasherC5594-45S501SPST Power SwitchD5699A866-32 x.37 Hex ScrewC3322-2.5 x.195 Fiber WasherC3575-5PPower LED BoardP10068B49Amber Power LEDC4342-96-32 x .25"ScrewC4758-611PB Switch CollarD4108-312PushbuttonD5954J813PlungerD4808A614Switch BracketF10042A2156-32 x.37 Self Tap ScrewC4320-6166-32 x.1"ScrewC2138-317E301,E401Red LEDC5905-218IOC LED BoardP9988-019Level Control KnobD5953J020.375 Hex NutC1288-721Cable Strain ReliefD2828-822R400(shown);R300Level ControlD5696-6235 1/4"Rack MountD5952J2246-32 x.75 Socket Cap ScrewC1858-72510-24 x.75 Self Tap ScrewC4017-726Terminal Strip G2D5366-627Terminal Strip 2G1D3323.928T500Power TransformerD4380-829Rubber GrometC1566-730#10 Flat WasherC2101-131#10 Internal Star WasherC2279-53210-32 Hex NutC2170-633R500,R5021.2K ohm 2WC3649-83410-32 x.5"ScrewC2049-235Solder Lug.218D2934-436.312 Fiber Shoulder WasherC3320-67.3 x .525 x .125 Nylon WasherC1657-338C5019300uf Filter CapacitorC5888-03C5029300uf Filter CapacitorC5888-040C500.lufC2938-67-3
