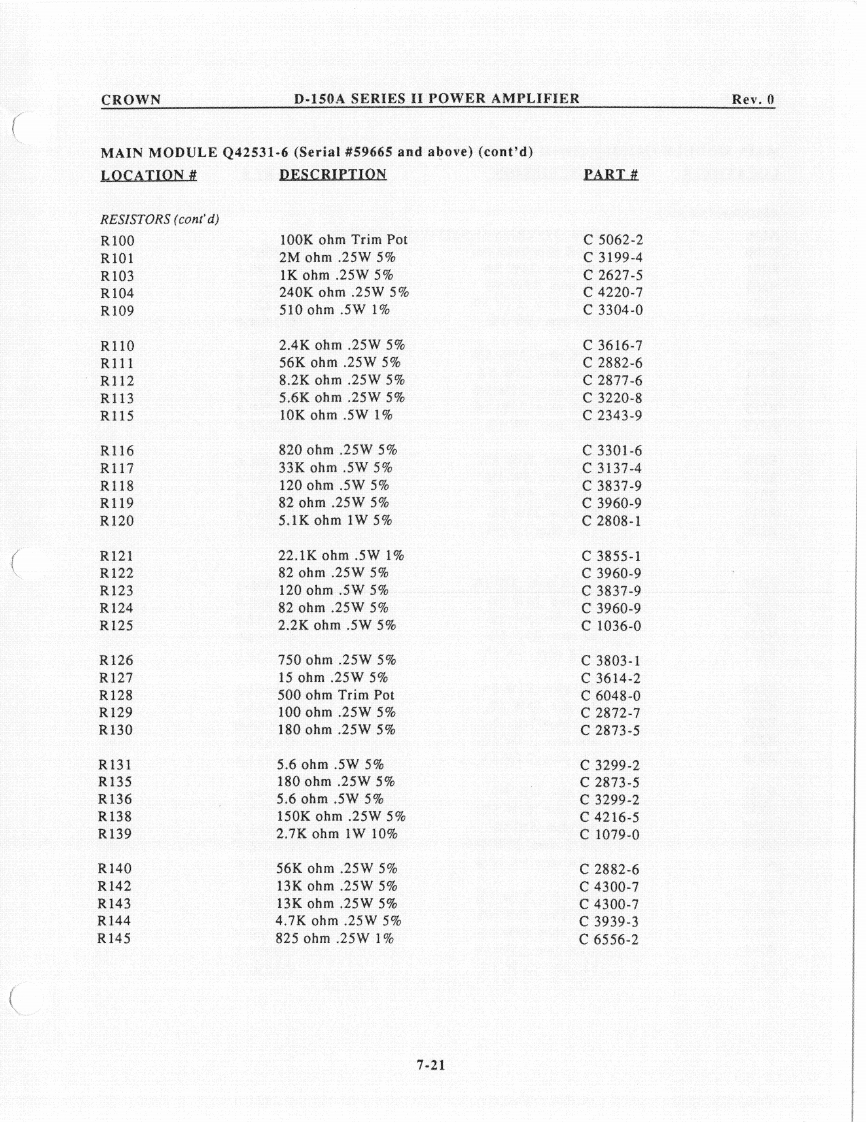

CROWND-150A SERIES II POWER AMPLIFIERRev.0MAIN MODULE Q42531-6(Serial #59665 and above)(cont'd)LOCATION#DESCRIPTIONPART#RESISTORS (cont'd)R100100K ohm Trim PotC5062-2R1012M ohm .25W 5%C3199-4R1031K ohm .25W 5%C2627-5R104240Kohm.25W5%C4220-7R109510ohm.5W1%C3304-0R1102.4Kohm.25W5%C3616-7R11156K ohm .25W 5%C2882-6R1128.2Kohm.25W5%C2877-6R1135.6Kohm.25W5%C3220-8R11510K ohm .5W 1%C2343-9R116820ohm.25W5%C3301-6R11733K ohm .5W 5%C3137.4R118120ohm.5W5%C3837-9R11982ohm.25W5%C3960-9R1205.1K ohm 1W 5%C2808-1R12122.1Kohm.5W1%C3855-1R12282ohm.25W5%C3960-9R123120ohm.5W5%C3837-9R12482ohm,25W5%C3960-9R1252.2K ohm.5W 5%C1036-0R126750ohm.25w5%C3803-1R12715ohm.25W5%C3614-2R128500 ohm Trim PotC6048-0R129100ohm,25W5%C2872-7R130180ohm.25W5%C2873-5R1315.6ohm.5W5%C3299-2R135180ohm.25W5%C2873-5R1365.6ohm,5W5%C3299-2R138150Kohm.25W5%C4216-5R1392.7K ohm 1W 10%C1079-0R14056K ohm .25W 5%C2882-6R14213K ohm .25W 5%C4300-7R14313K ohm.25W 5%C4300-7R1444.7Kohm,25W5%C3939.3R145825ohm.25W1%C6556-27-21
