手册编号296：Icom_IC-F9511S_T_维修说明书手册_addendum_Jun_2016

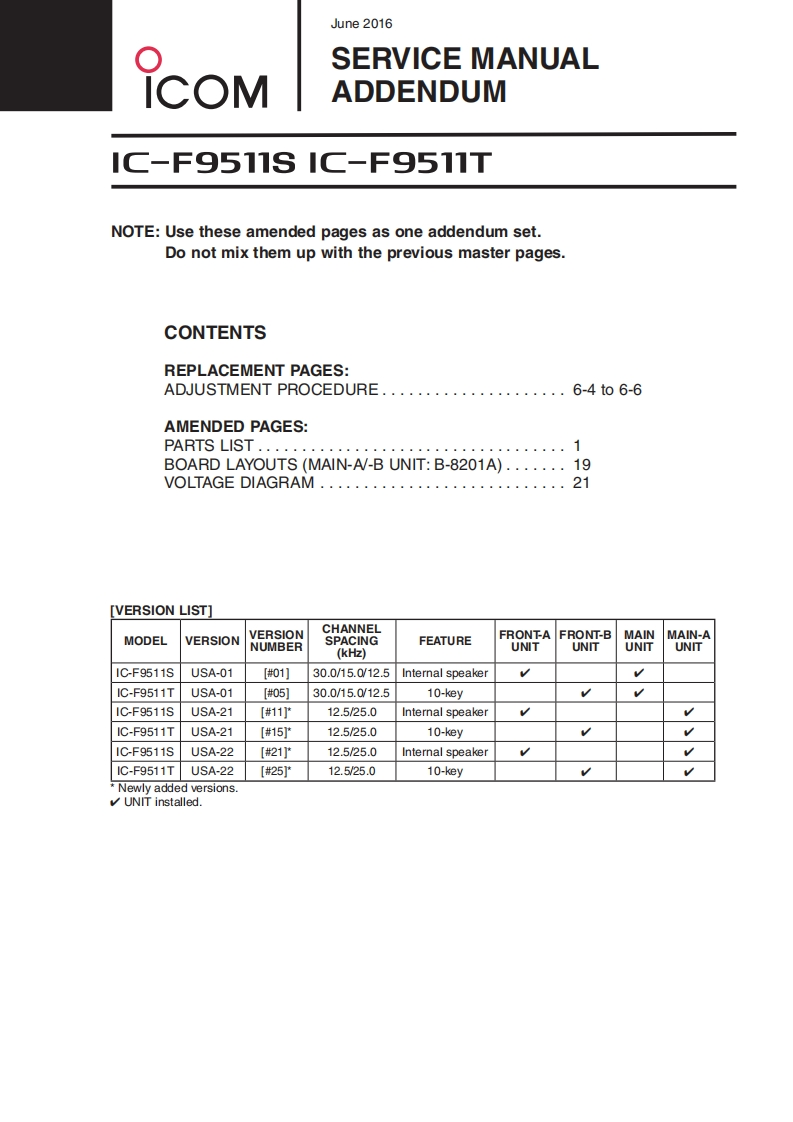

June 2016iCOMSERVICE MANUALADDENDUMIC-F9511S IC-F9511TNOTE:Use these amended pages as one addendum set.Do not mix them up with the previous master pages.CONTENTSREPLACEMENT PAGES:ADJUSTMENT PROCEDURE.....................6-4 to 6-6AMENDED PAGES:PARTS LIST..........BOARD LAYOUTS(MAIN-A/-B UNIT:B-8201A).......19VOLTAGE DIAGRAM......·........·..·21[VERSION LIST]VERSIONCHANNELMODELVERSIONFEATUREFRONTAFRONT-BMAINMAIN-ANUMBERSPACING(kHz)UNITUNITUNITUNIT1C-F9511SUSA-01#01]30.0/15.0/12.5Internal speakerIC-F9511TUSA-01[#05]30.0/15.0/12.510-keyIC-F9511SUSA-21[#11]12.5/25.0Internal speakerI1C-F9511TUSA-21[#15]12.5/25.010-keyIC-F9511SUSA-22[#21]12.5/25.0Internal speaker1C-F9511TUSA-22[#2512.5/25.010-key*Newly added versionsUNIT installed.
