Sharp-AR-5015-维修维护手册

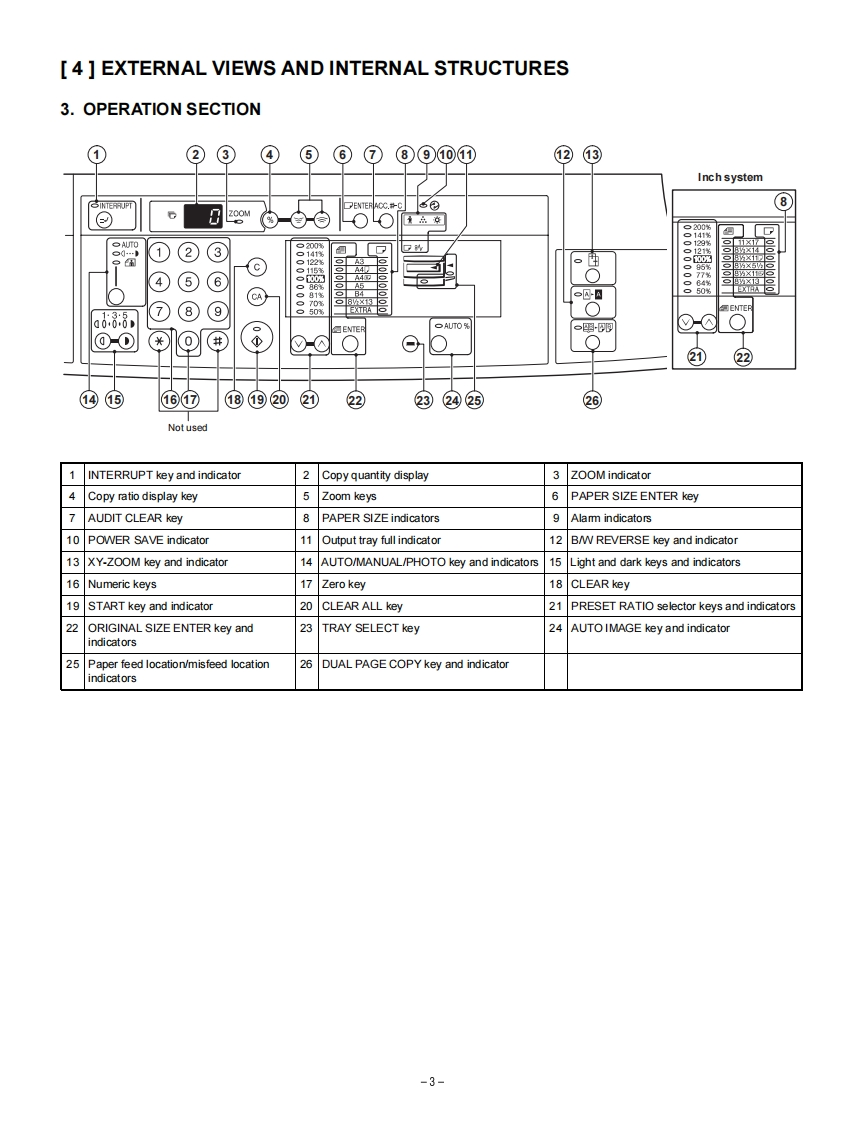

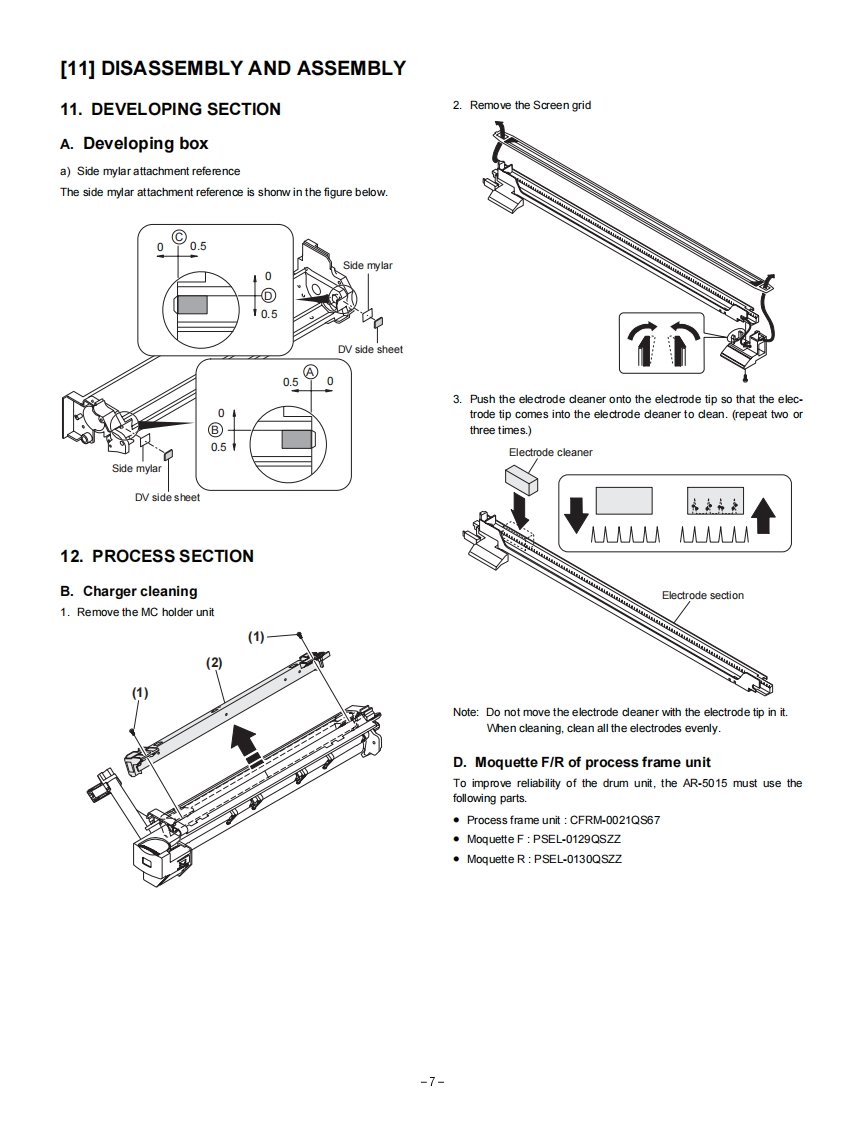

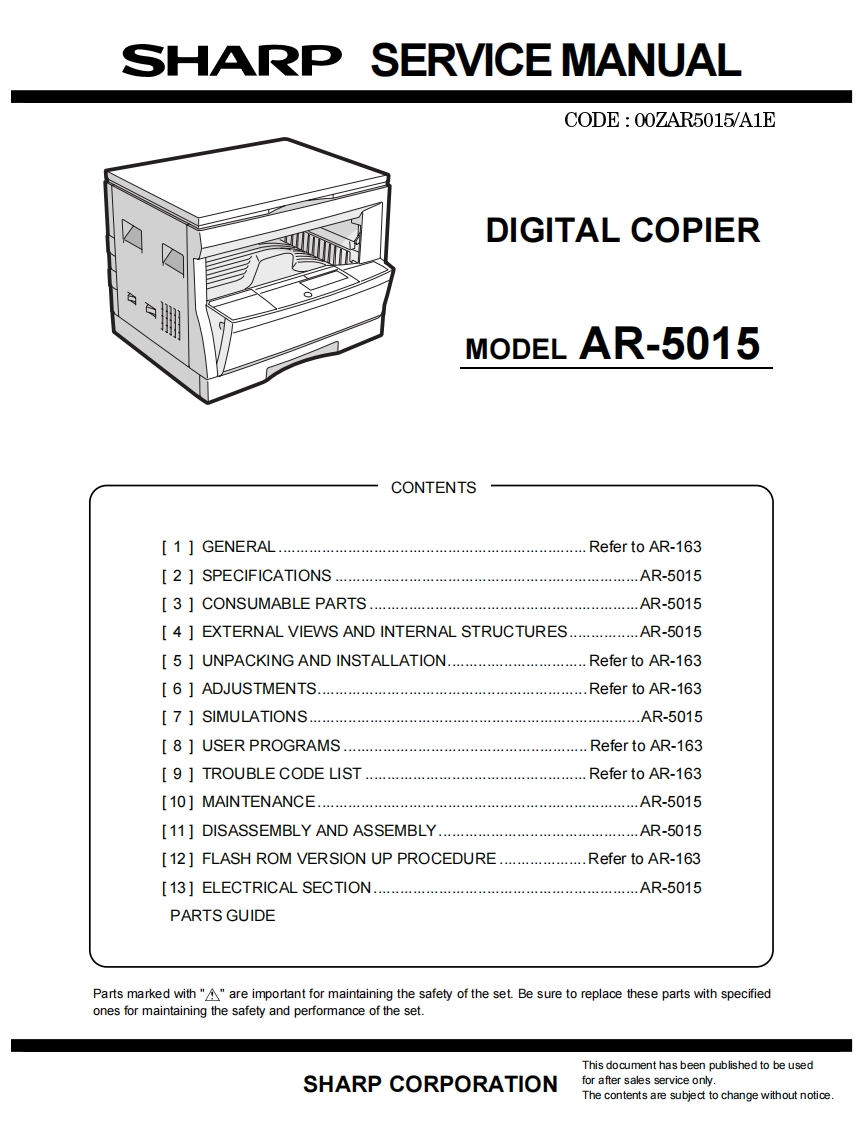

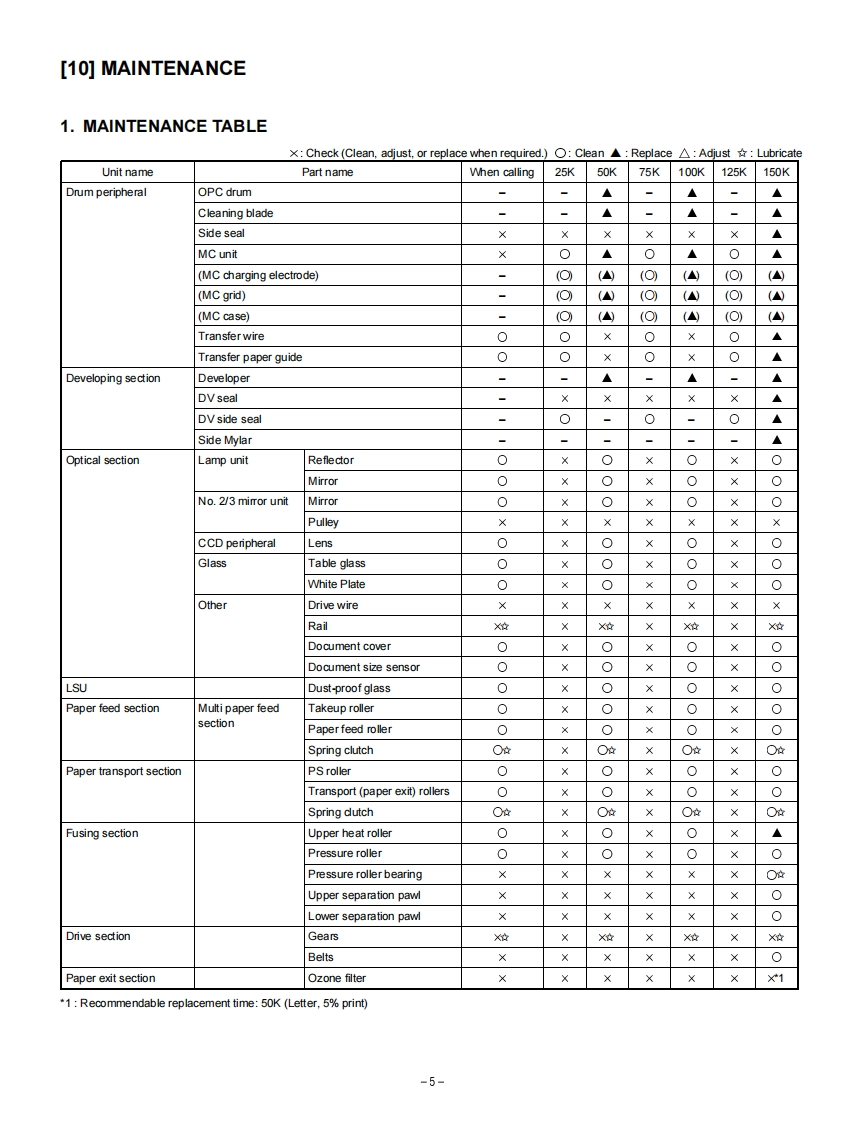

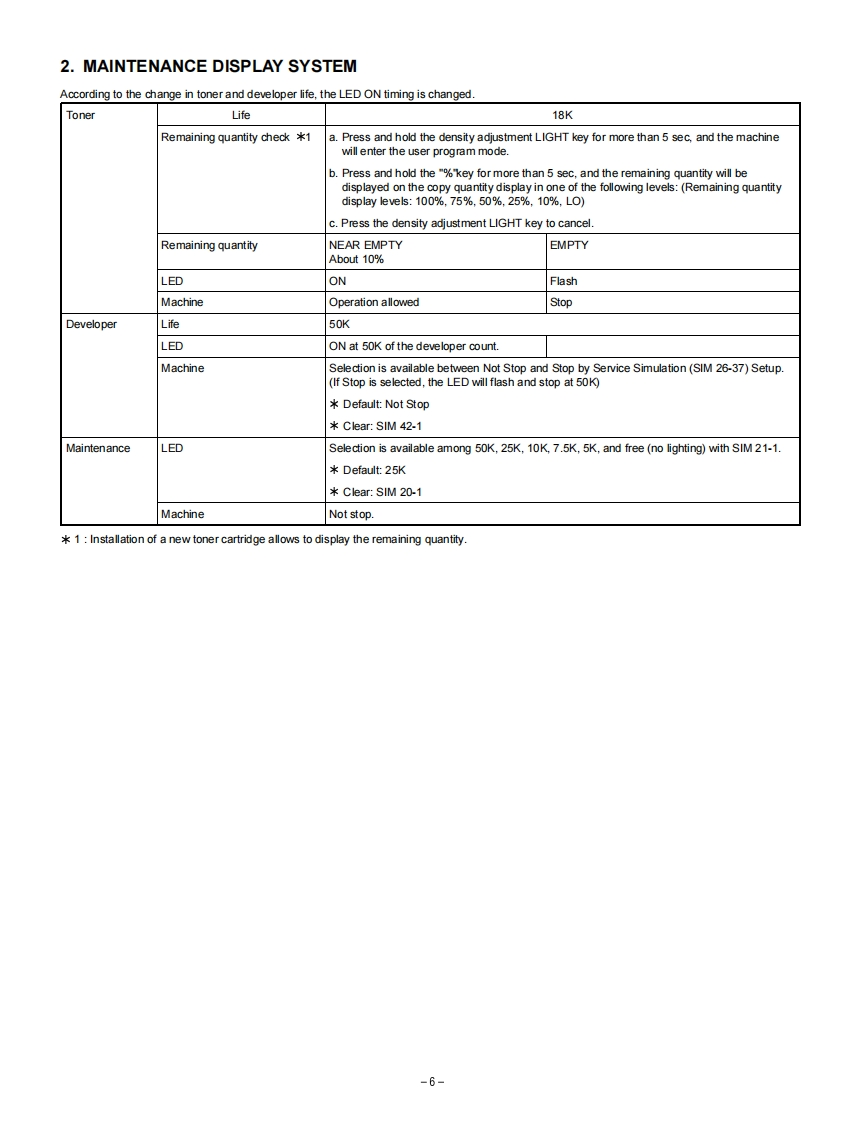

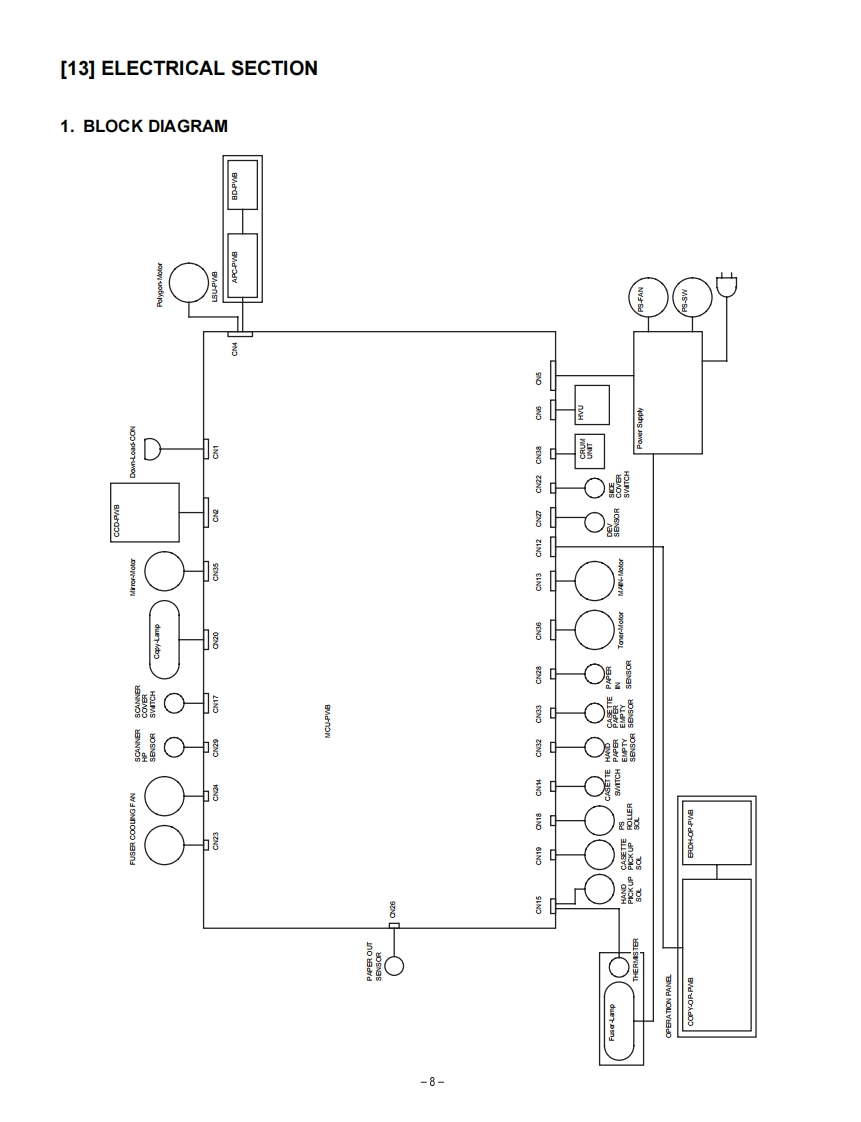

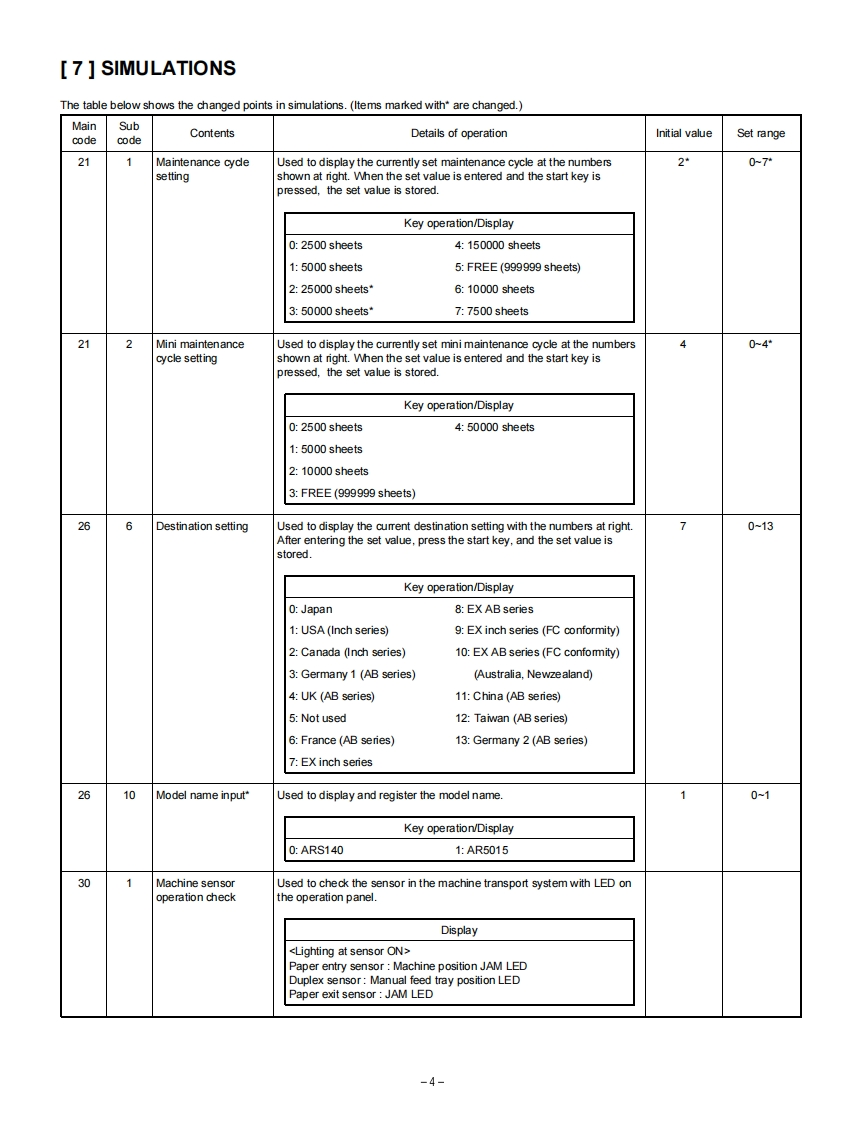

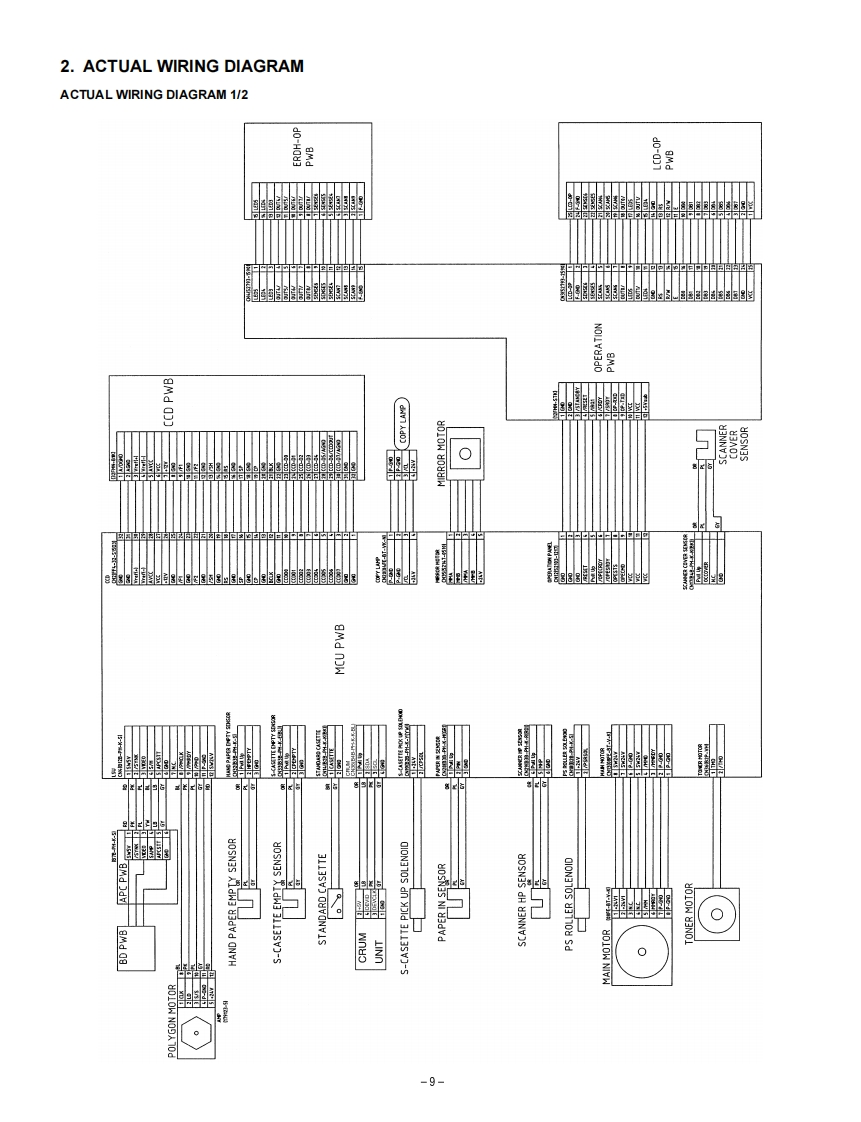

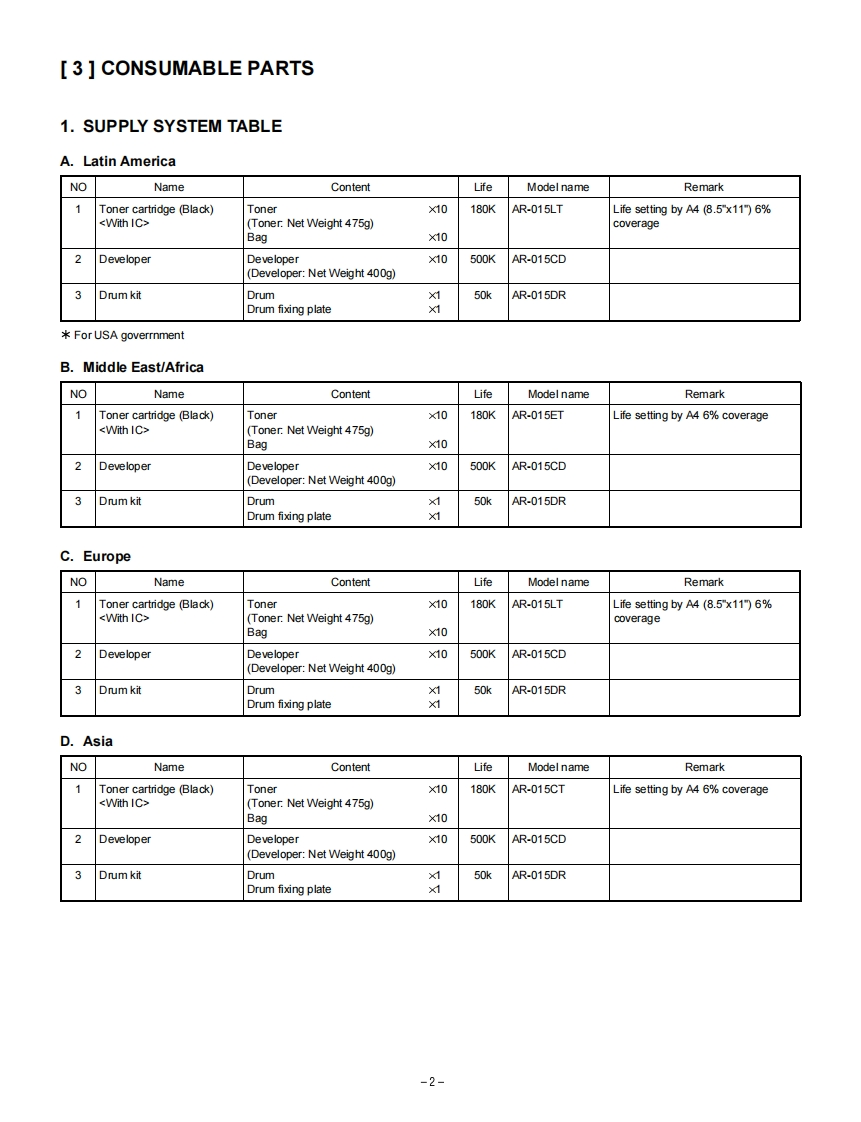

SHARP SERVICE MANUALCODE 00ZAR5015/A1EDIGITAL COPIERMODEL AR-5015CONTENTS[1]GENERAL...............Refer to AR-163[2 SPECIFICATIONS.AR-5015[3 CONSUMABLE PARTS...AR-50154 EXTERNAL VIEWS AND INTERNAL STRUCTURES...........AR-50155 UNPACKING AND INSTALLATION...........Refer to AR-1636 ADJUSTMENTS.......Refer to AR-1637 SIMULATIONS.......AR-50158 USER PROGRAMS...................Refer to AR-163[9 TROUBLE CODE LIST.........Refer to AR-163[10]MAINTENANCE.AR-5015[11 DISASSEMBLY AND ASSEMBLY.....AR-5015[12]FLASH ROM VERSION UP PROCEDURE.............Refer to AR-163[13]ELECTRICAL SECTION......AR-5015PARTS GUIDEParts marked with"are important for maintaining the safety of the set.Be sure to replace these parts with specifiedones for maintaining the safety and performance of the set.This document has been published to be usedSHARP CORPORATIONfor after sales service only.The contents are subject to change without notice
