松下DVD-LS82维修手册

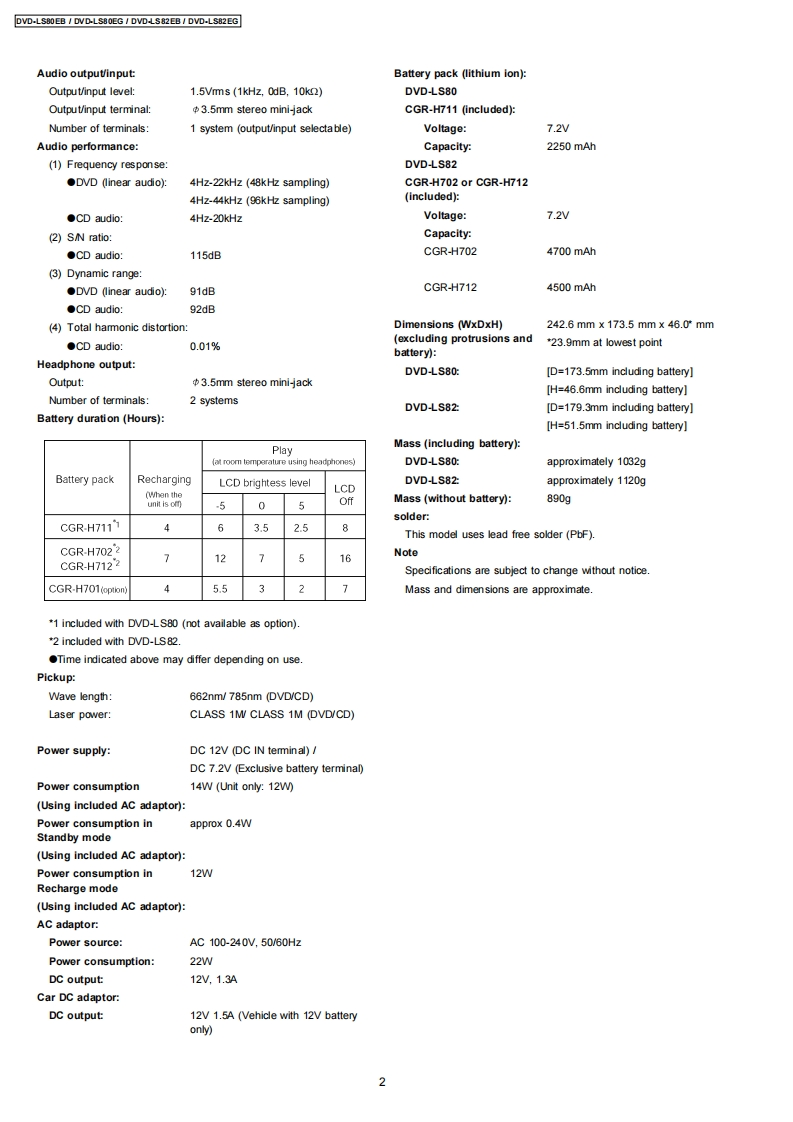

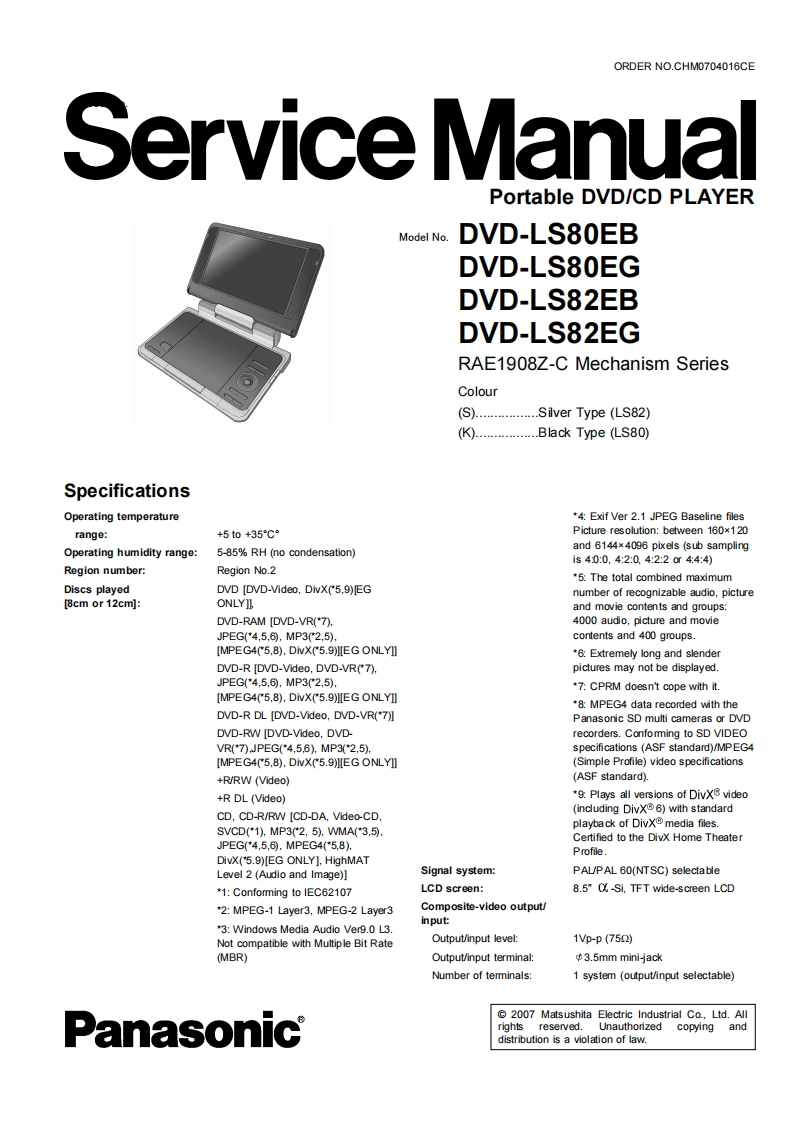

ORDER NO.CHM0704016CEService ManualPortable DVD/CD PLAYERModel No.DVD-LS80EBDVD-LS80EGDVD-LS82EBDVD-LS82EGRAE1908Z-C Mechanism SeriesColour(S).............Silver Type (LS82)(K)......Black Type (LS80)SpecificationsOperating temperature*4:Exif Ver 2.1 JPEG Baseline filesrange:+5t0+35℃Picture resolution:between 160x120Operating humidity range:5-85%RH (no condensation)and 6144x4096 pixels (sub samplings40:0,4:2:0,42:20r444)Region number:Region No.2*5:The total combined maximumDiscs playedDVD [DVD-Video,DivX(5,9)[EGnumber of recognizable audio,picture[8cm or 12cm]:ONLYILand movie contents and groups:DVD-RAM [DVD-VR(*7).4000 audio,picture and movieJPEG(4,5,6,MP32,5)contents and 400 groups.[MPEG4(5.8).DivX(5.9)EG ONLY]]6:Extremely long and slenderDVD-R [DVD-Video,DVD-VR(7).pictures may not be displayed.JPEG(4,5,6,MP32,5),*7:CPRM doesn't cope with it.[MPEG4(5,8),DivX(5.9)EG ONLY]]*8:MPEG4 data recorded with theDVD-R DL [DVD-Video,DVD-VR(*7)]Panasonic SD multi cameras or DVDDVD-RW [DVD-Video,DVD-recorders.Confomming to SD VIDEOVR(7)JPEG(4,5.6)MP3(*2,5),specifications (ASF standard)/MPEG4[MPEG4(5,8),DivX(5.9)[EG ONLY]](Simple Profile)video specifications+R/RW(Video)(ASF standard).+R DL(Video)*9:Plays all versions of DivX video(including Divx 6)with standardCD,CD-R/RW [CD-DA,Video-CDplayback of DivX media files.SVCD(1),MP32,5),WMA(3,5Certified to the DivX Home TheaterJPEG(4,5,6),MPEG4(58),Profile.DivX("5.9)[EG ONLY].HighMATLevel 2 (Audio and Image)]Signal system:PAU/PAL 60(NTSC)selectable*1:Conforming to IEC62107LCD screen:8.5*C-Si,TFT wide-screen LCD2:MPEG-1 Layer3,MPEG-2 Layer3Composite-video output/input:*3:Windows Media Audio Ver9.0 L3Not compatible with Multiple Bit RateOutput/input level:1Vp-p(752)(MBR)Output/input terminal:3.5mm mini-jackNumber of temminals:1 system (output/input selectable)2007 Matsushita Electric Industrial Co.,Ltd.AllPanasonicrightsreserved.Unauthorizedcopying anddistribution is a violation of law.
